Side Panel Connections
Connecting HDMI device (Best Video Quality)
To connect a HDMI device, such as a DVD player, please connect the HDMI jack on the side of TV to the output jack of
device via HDMI cable.
HDMI Connection

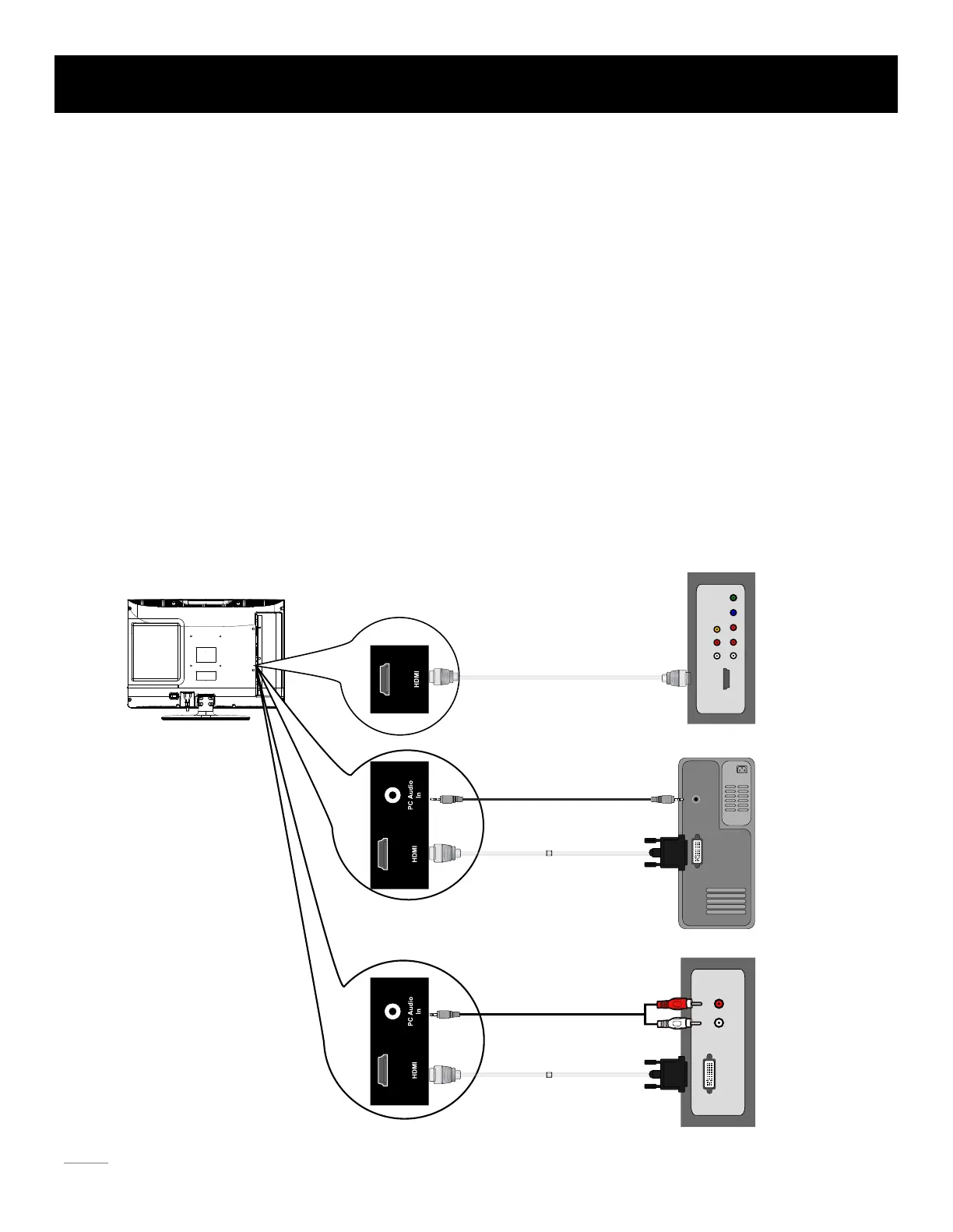

The picture below is an example of a connection using the HDMI video jack.
Note: 1. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transmitting uncompressed digital
data. It carries the audio and video signal via the same cable and has the best display quality.
2. HDMI-DVI cable transfers only video signal from DVI port of DVI device to HDMI jack of TV. For audio signal, please
connect audio output to PC Audio In jack on TV back panel.
14
To connect a DVI device, other AV device via DVI port of device and HDMI jack of TV:
1. Connect the HDMI jack on the side of TV to the DVI port of device via HDMI-DVI cable.
2. Connect the PC Audio In jack on the side of TV to the audio output jack of device with audio cable (dual-channel RCA
jacks to 3.5mm stereo jack).
To connect a DVI device, such as a computer via DVI port of PC and HDMI jack of TV:
1. Connect the HDMI jack on the side of TV to the DVI port of PC via HDMI-DVI cable.
2. Connect the PC Audio In jack on the side of TV to the audio output jack of computer with audio cable (3.5mm stereo jack).
The back of TV
Audio Out
L R
DVI
Speaker or
headphone
DVI
Audio
L R
Audio
L R YPbPr
Video
HDMI
The output panel of HDMI device
The output panel of other AV device
PC
To Next Page
