Chapter 1 : Setup & Connections
Chapter 1 7
A/V
Receiver
CD
Recorder
CD RECORDER
LL
RR
IN OUT
ANALOG
COAXIAL
DIGITAL
IN OUT
OPTICAL IN
IN
OUT
VCR
IN
TV
OUT
IN
TAPE
IN
CD
L
R
A/V RECEIVER
OPTICAL OUT
The back of your
receiver might
not look exactly
like the one
shown here.

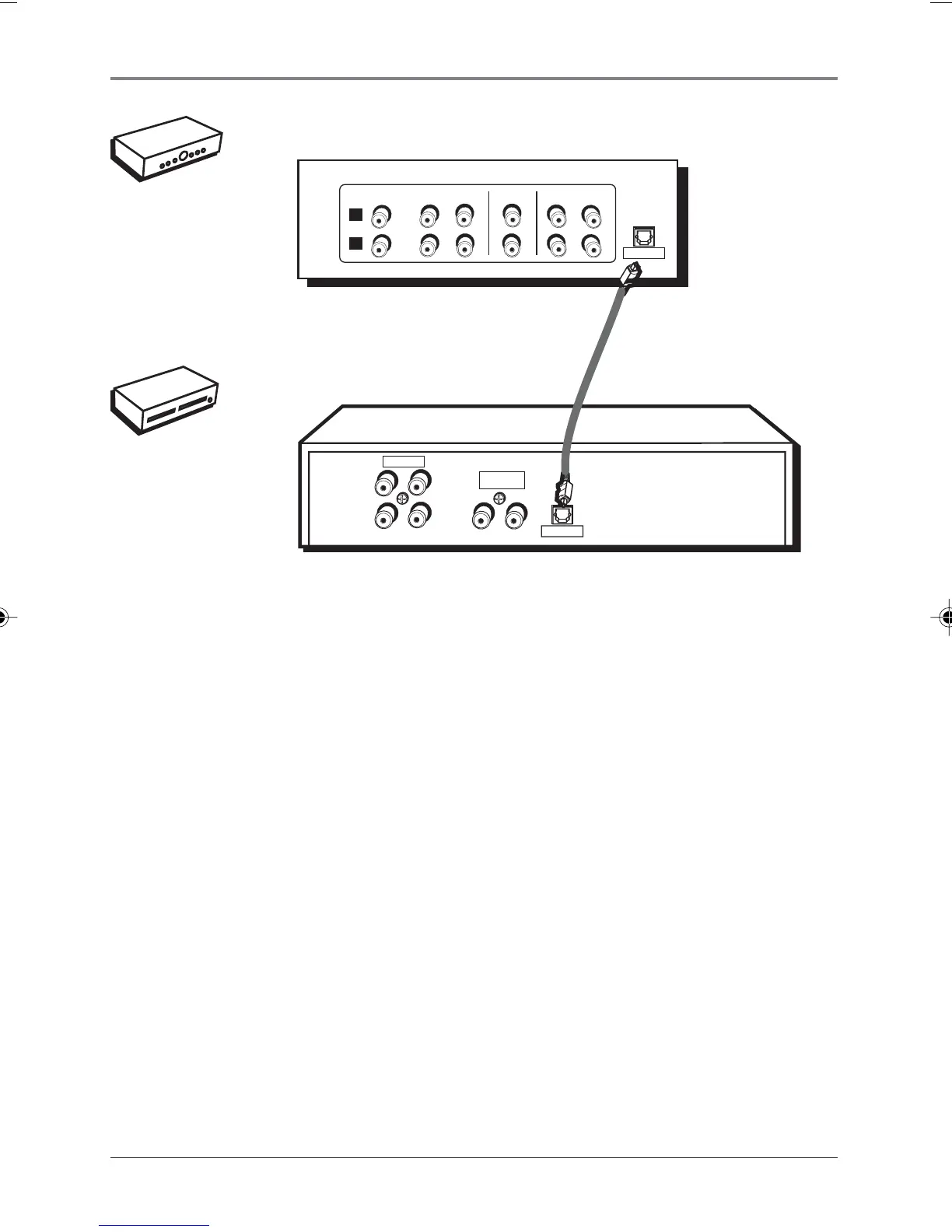

CD Player + CD Recorder (Digital Optical)
1. Remove the protective cap from the OPTICAL IN jack on the back of the recorder (if
necessary) and also remove the protective caps from your digital optical cable.
2. Connect the digital optical cable to the OPTICAL IN jack on the back of the recorder.
Connect the other end of the cable to the corresponding output jack on your A/V
receiver or CD player (sometimes labeled OPTICAL OUT).
Go To Page 8
15920520.01 Connections 9/24/02, 3:54 PM7
