Connecting AV Composite device (Good Video Quality)
To connect an composite AV device, such as a DVD player, follow these steps:
1. Connect the VIDEO jack on the back of TV to the video output jacks of device via video cable (yellow).
2. Connect the L-AUDIO-R jacks on the back of TV to the audio output jacks of device via audio cable.
Notice the left channel jack and plugs are white and the right channel jack and plugs are red.
Note. AV signal belongs to composite video. This kind of video signal has regular good display quality.
Composite Video Connection

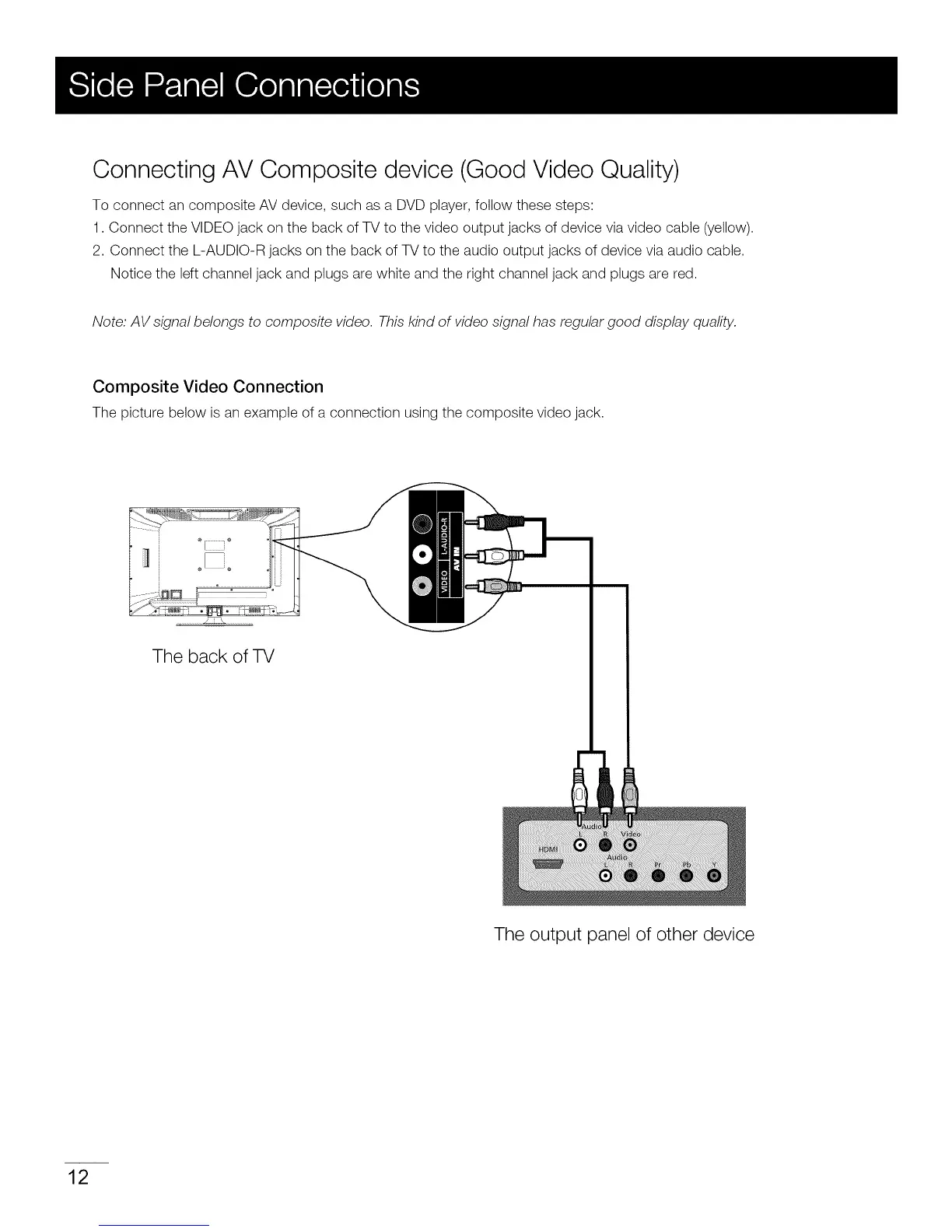

The picture below is an example of a connection using the composite video jack.
The back of TV
The output panel of other device
