The back of TV
Back Panel Connections
Connecting HDMI device (Best Video Quality)
HDMI Connection

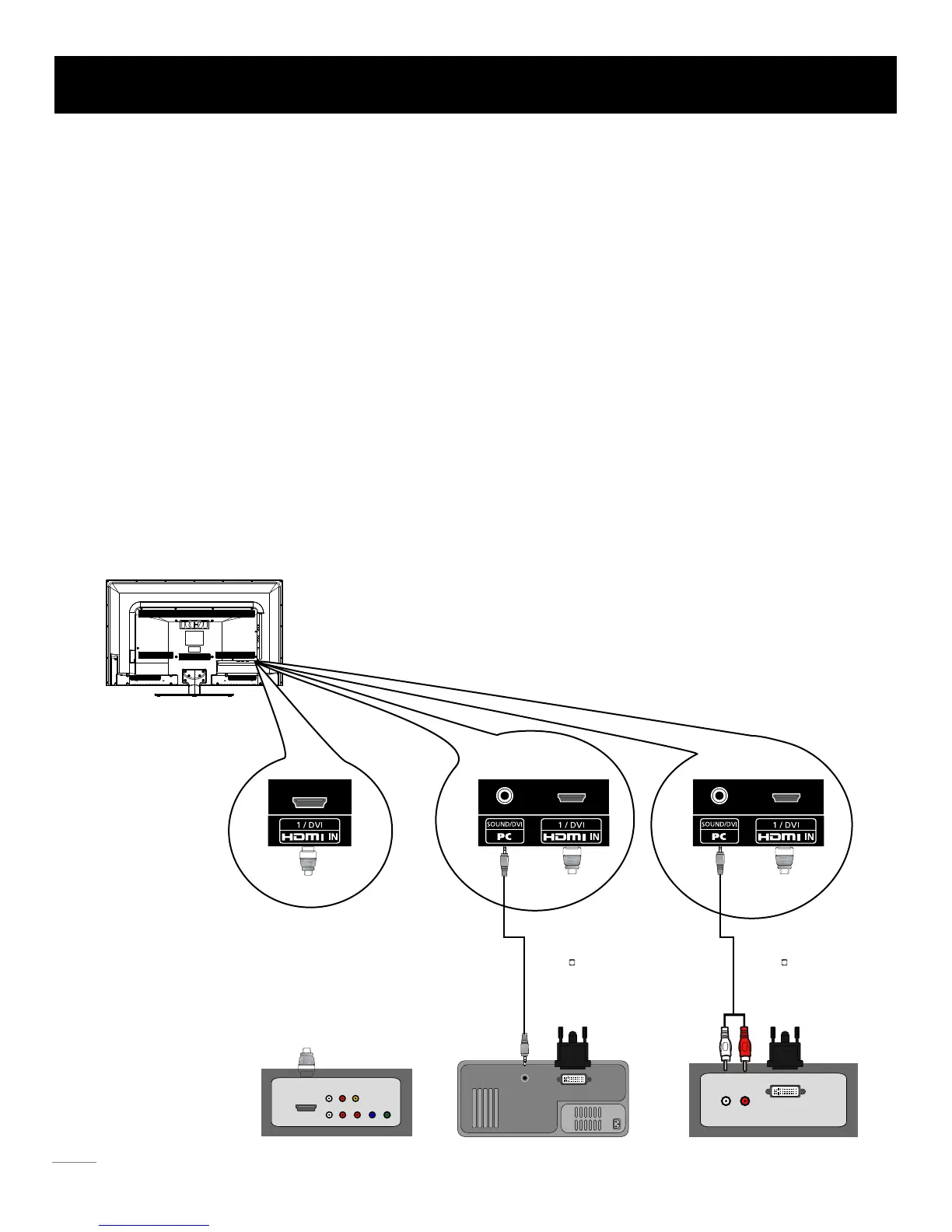

The picture below is an example of a connection using the HDMI video jack.
To connect a HDMI device, such as a DVD player, please Connect the HDMI 1/DVI, 2, or 3 jack on the back of TV to the output
jacks of device via HDMI cable.
Note: 1. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transmitting uncompressed digital
data. It carries the audio and video signal via the same cable and has the best display quality.
2. HDMI-DVI cable transfers only video signal from DVI port of DVI device to HDMI jack of TV. For audio signal, please
connect audio output to SOUND/DVI on TV back panel.
To connect a DVI device, such as a computer via DVI port of PC and HDMI jack of TV:
1. Connect the HDMI 1/DVI, 2, or 3 jack on the back of TV to the DVI port of PC via HDMI-DVI cable.
2. Connect the SOUND/DVI jack on the side of TV to the audio output jack of computer with audio cable (3.5mm stereo jack).
To connect a DVI device, other AV device via DVI port of device and HDMI jack of TV:
1. Connect the HDMI 1/DVI, 2, or 3 jack on the back of TV to the DVI port of device via HDMI-DVI cable.
2. Connect the SOUND/DVI jack on the back of TV to the audio output jack of device with audio cable (dual-channel RCA
jacks to 3.5mm stereo jack).
14
Audio
L R
Audio
L R Y Pb Pr
Video
HDMI
The output panel of HDMI device The output panel of other AV devicePC
DVI
Speaker or
headphone
Audio Out
L R
DVI
To Next Page
