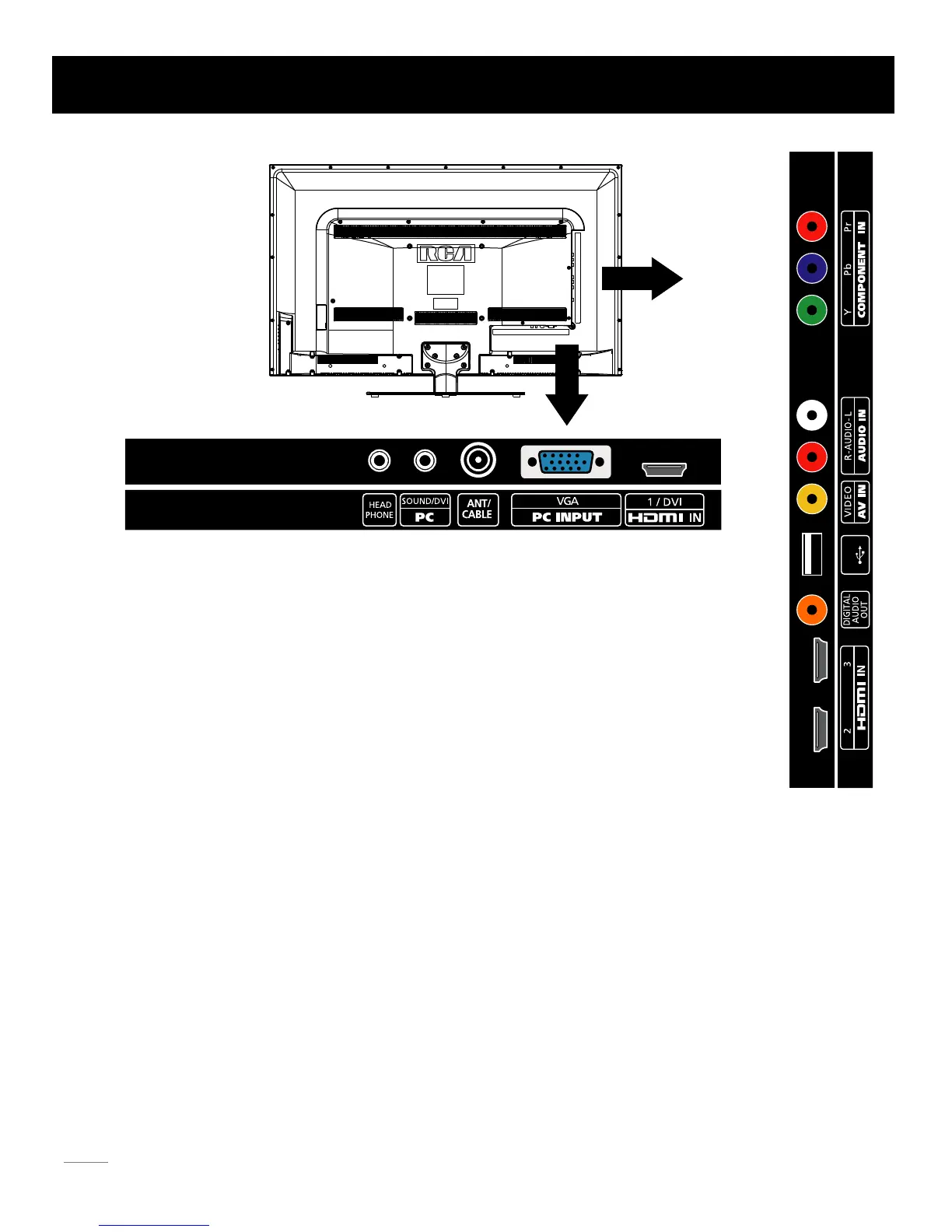

TV Jacks Explanation
ANT/CABLE: Connect to receive the signal from your antenna or cable via coaxial cable.
HEAD PHONE:
Connect a 3.5mm headphone for personal audio.
DIGITAL AUDIO OUT:
Connect a coaxial cable for digital audio output.
HDMI IN 1/DVI, 2, 3: (High-Definition Multimedia Interface) It provides an uncompressed digital connection
that carries both video and audio data by way of an integrated mini-plug cable.
USB: Connect your USB storage device to enjoy music/photo files on your TV. (Also used for service purpose)
AV IN VIDEO, R-AUDIO-L: Connect an AV device that has composite video jacks, such as a VCR or a DVD
• AUDIO-L: Left audio channel connection. The left audio connector is usually white. For mono audio sources, be sure to
use the left AUDIO INPUT.
• AUDIO-R: Right audio channel connection. The right audio connector is usually red.
player. To access device connected to these jacks, press the INPUT button on your remote; then press the
up/down arrow to select AV. Press the ENTER button at last to confirm.
SOUND/DVI: Use to obtain sound when a PC is connected to TV. Use 3.5mm stereo mini-pin cable to
connect PC to TV.
PC INPUT VGA: Connect your computer or other device with a VGA output to this jack using a 15-pin,
D-sub cable.
Note:
COMPONENT IN Y/Pb/Pr, R-AUDIO-L: Connect a device that has component video jacks, such as a DVD player. To access
• Y/Pb/Pr (Component Video): They provide good picture quality because the video signal is separated into three
components. Use three video-grade or component video cables for the connection. When using Y/Pb/Pr, make sure you
connect left and right audio cables to the Audio L and Audio R jacks.
device connected to the Y/Pb/Pr jack, press the INPUT button on your remote; then press the up/down arrow to select Component.
Press the ENTER button at last to confirm.
The VIDEO (AV), COMPONENT IN input (Y, Pb, Pr) share the same audio input jacks R-AUDIO-L.
16
