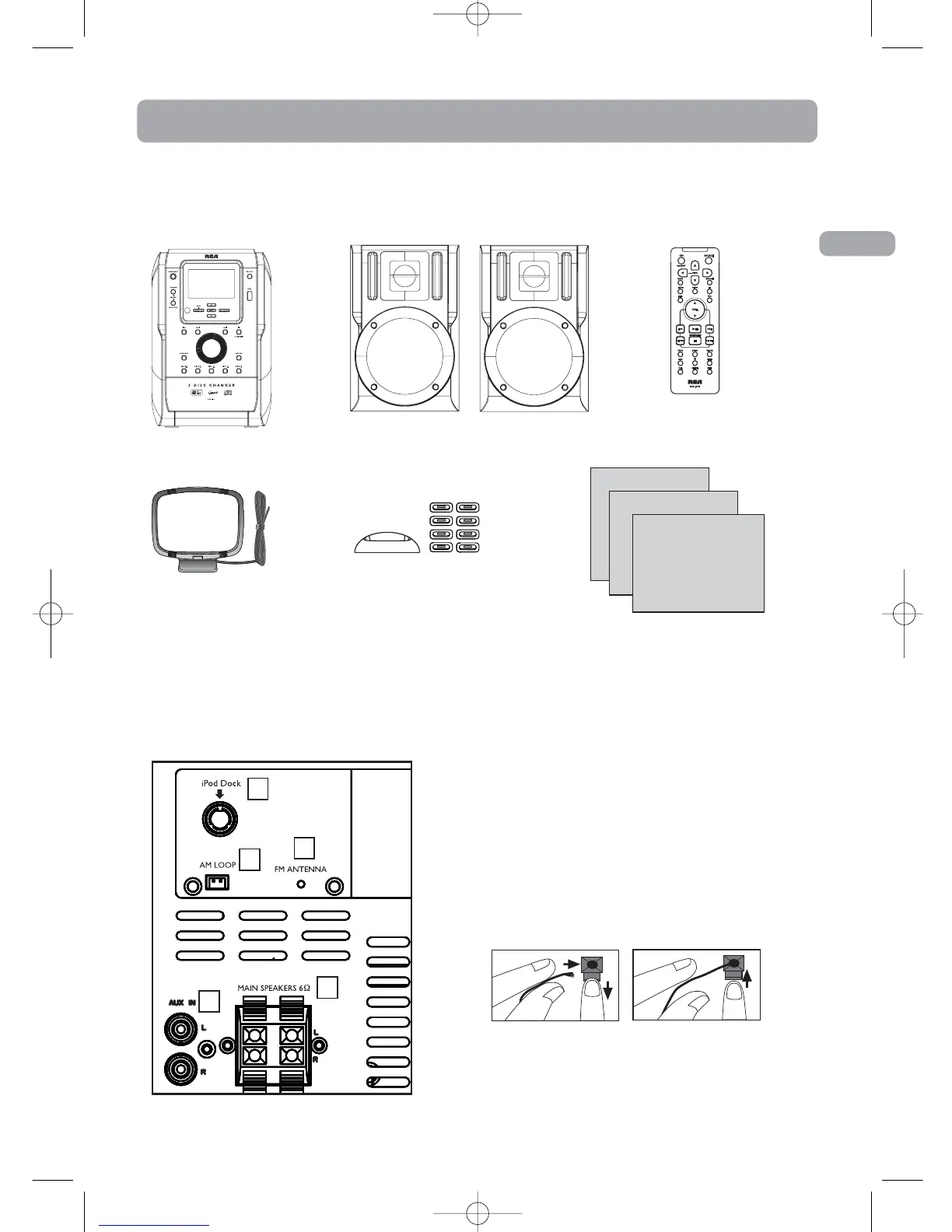

Content of Box
Connections of Antennas and Speakers
1. iPod dock socket.
2. AM Loop antenna Jack.
3. FM Pigtail Antenna.
4. AUX IN.
5. Main Speaker Jacks.
Using the FM and AM Antennas
Before you use your unit, ensure both the FM and
AM antennas are positioned properly.
Uncoil the FM antenna at the back of the unit,
ensuring it is fully extended (you may even want
to tape it to the wall behind the unit if possible.
The higher the better.) You’ll also need to
connect the AM antenna loop to the back of the
unit if you listen to AM stations. Rotate the AM
loop antenna for better reception.
Connecting the Speakers
Each speaker has a black and a red wire. When
connecting the speakers, match the red wires
to the red jacks and the black wires to the
black jacks.
2
EN
Getting Started
one AM loop antenna
one main unit
two main speakers
one iPod dock and
eight adapters
User Manual
Quick Start Guide
Product
Registration Card
one remote control
with batteries
Release tab to lock wire in
the terminal.
NOTE: Ensure the insulation
is completely removed from the
of the
speaker wires at all connection
points.
Push Speaker terminal tab
down to insert wire.
ends
RS2130i EN 15/2/07 4:31 PM Page 11
