CONEXIÓN
CONNECTION

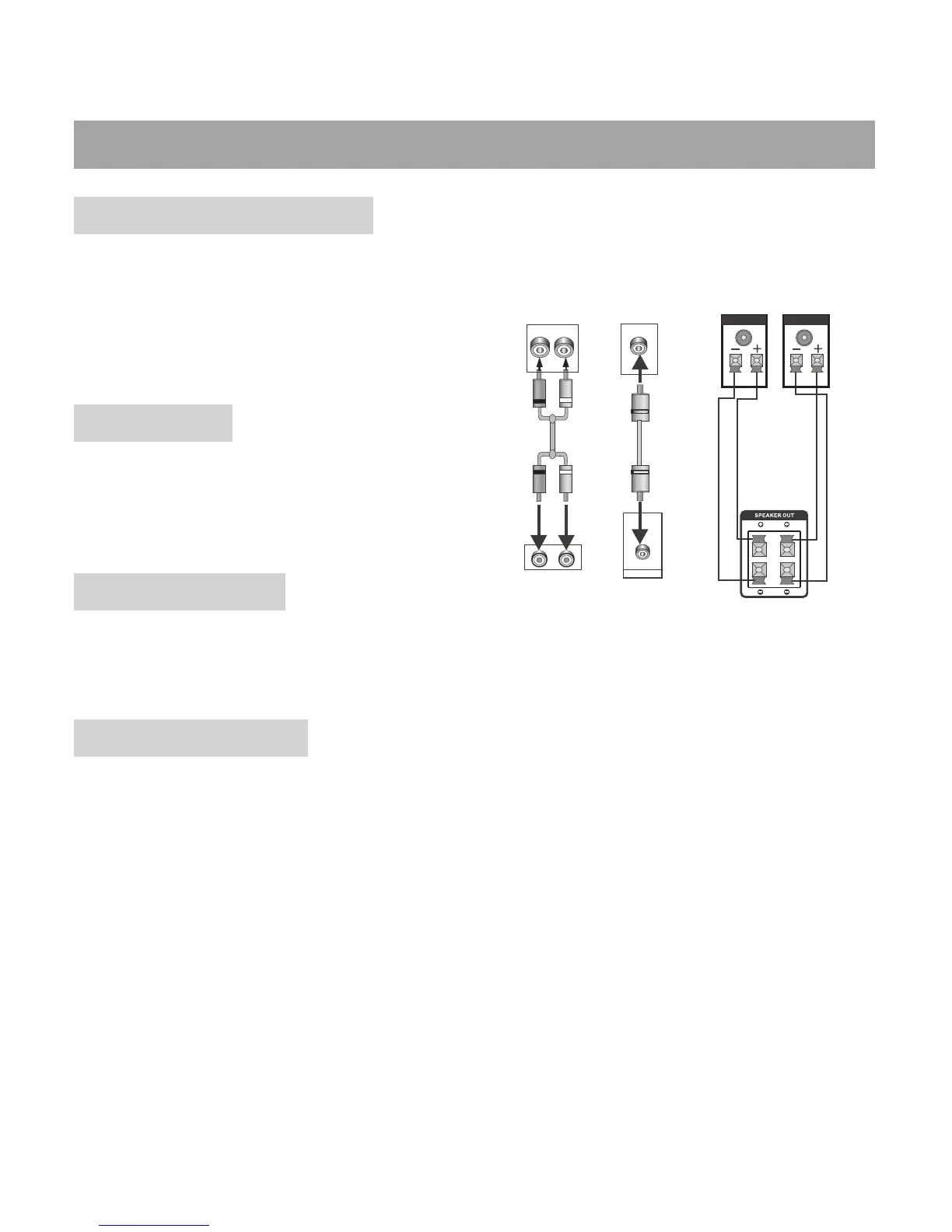

Audio system connectio
The player has both analogue and digital
audio output. The analogue audio is two
channel. The digital audio is outputted from
the coaxial, and sound quality is much
better than the analogue audio.
2ch output
Coaxial Digital Audio
Speaker output
Note:
The physical connection should come with audio output setup of this unit. Please refer to Audio
Setup in system setup.
Use a pair of audio cable (red for right/white
for left) to connect the audio input of the TV
or AV amplifier to the audio output of this
unit.
Use the specified coaxial cable to connect
the coaxial output of this unit to the coaxial
input of power Amplifier.
Use the specified cable(white+,black-) in
the accessories to connect this unit to the
input of sound boxes.
Speaker
R L
DIGITAL AUDIO
COAX IAL
COAXIAL
Coaxial Output
Digital Audio Input
R
L
2CH Audio Output
R L
DIGITAL AUDIO
COAX IAL
COAXIAL
R
L
R L
DIGITAL AUDIO
COAX IAL
COAXIAL
R
L
2CH Audio Input
R L
TV/Monitor Input
DVD Output
Speaker output
White
Black
White
Black
- 49 -
