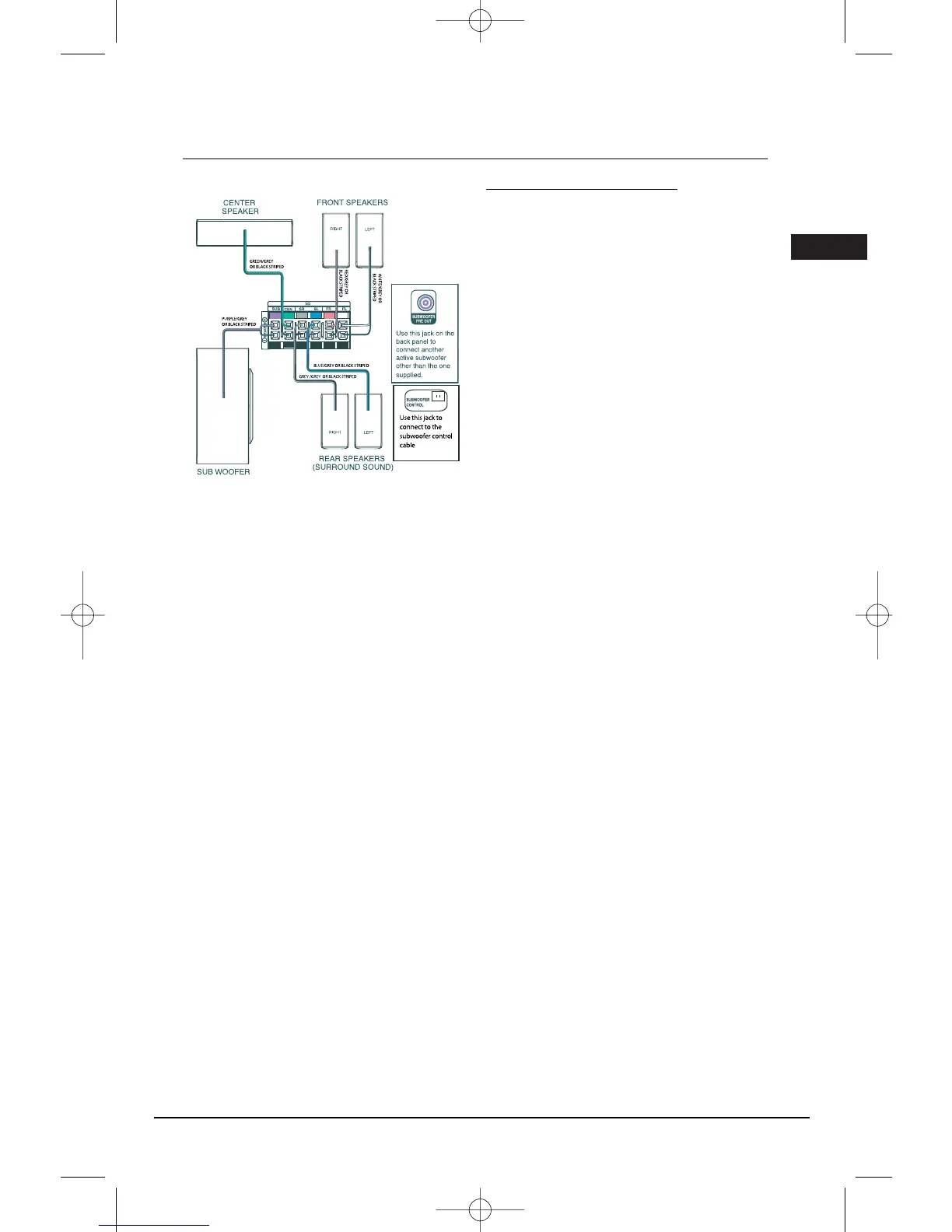

Connecting the speakers
Six speakers are provided with the unit (2 front,
1 center, 2 rear, 1 subwoofer). To achieve good
surround effects, all six speakers need to be
connected to the receiver.
One speaker wire is provided with each
speaker. Speaker wires are color-coded to
match the terminals.
Note: When connecting the speakers, make sure
the polarities (“+” speaker wire to “+” on the
receiver. For example, red wire to red terminal
on the receiver) of speaker wires and terminals
match. If the cords are reversed, the sound will
be distorted. Do not ground the output line, it
will damage the speaker.
Note: When connecting subwoofer, connect subwoofer
control cable to the unit’s rear panel first, then press the
power switch on the subwoofer speaker to switch it on.
Illustrations contained in this document are for representation only.
