16
Tour of the Receiver

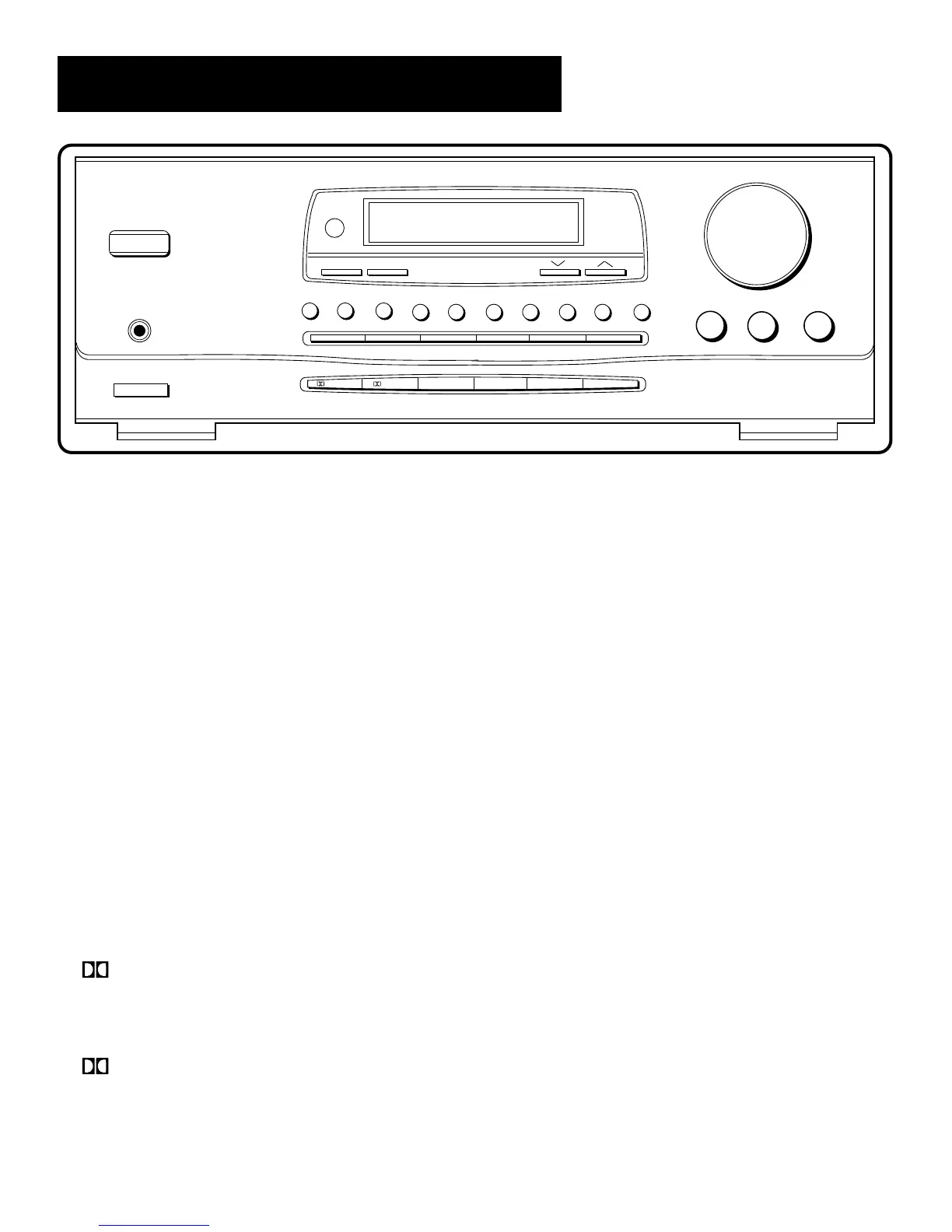

Front Panel
AUTO Selects auto tuning mode or manual tuning mode.
BALANCE Adjusts the sound from the left and right speakers.
BASS Adjusts the bass listening level.
BYPASS Turns off the Surround circuitry. Sound is generated
without effects—conventional stereo.
CD Selects the CD player input.
CENTER MODE Lets you select a center mode when using
Dolby Pro Logic or Dolby 3 Stereo:
Normal Select if you are using a small center speaker. This
is the recommended mode.
Wide Select if the center speaker is large or the same as
the left and right speakers. The full range of Center
Channel is routed to the center speaker.
Phantom Select when there is no center speaker. The
signal intended for the center speaker is divided equally
between the left and right main speakers. Phantom mode
is not available in 3 Stereo mode.
3 STEREO Turns on Dolby Pro Logic surround sound
without Surround sound speakers and is suggested for video,
home theater, TV and some music. Recommended mode if not
using surround speakers.
PRO LOGIC Turns on Dolby Pro Logic surround sound with
Surround sound speakers and is suggested for video, home
theater, TV and some music. This is the recommended mode if
you have all speakers.
MASTER VOLUME
TREBLE
BASS
BALANCE
L
R
MIN
MAX
MIN MAX
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
BY PASS
TEST TONE
HALL
CENTER MODE
3 STEREO
PRO LOGIC
SPEAKERS
PHONES
STANDBY/ON
POWER
CD
TAPE
FM/AM
TV
VCR
VIDEOVIDEO
987654321
0
REMOTE
SENSOR
PRESET SCAN
AUTO
TUNING
To Next Page
