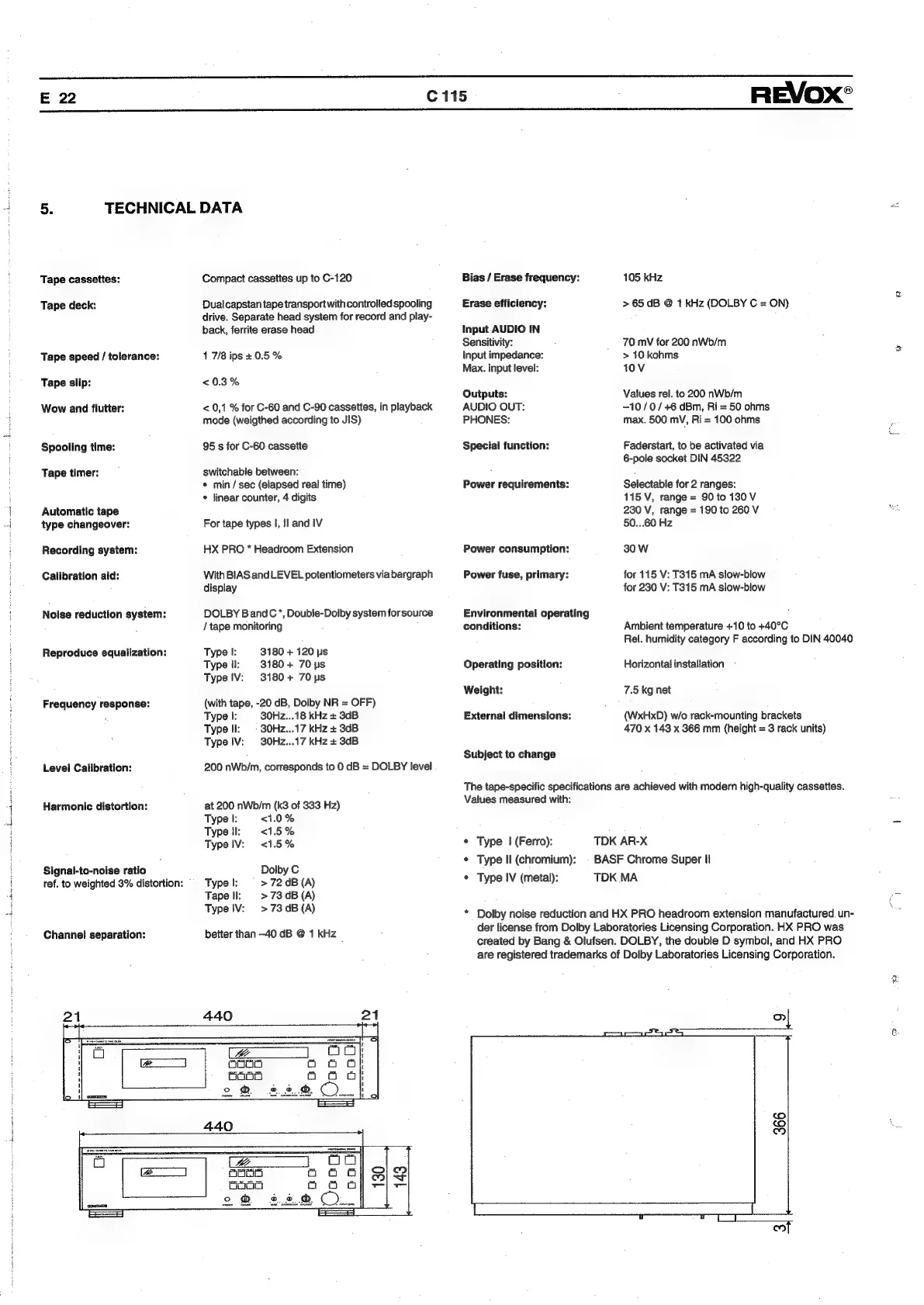

5. TECHNICAL DATA
Tape cassettes:
Tape deck:
Tape speed / tolerance:
Tape slip:
Wow and fiutter:
Spooling time:
Tape timer:
Automatic tape
type changeover:
Recording system:
Calibration aid:
Noise reduction system:
Reproduce equalization:
Frequency response:
Level Calibration:
Harmonic distortion:
Compact cassettes up to C-120
Dual capstan tape transport with controlled spooling
drive. Separate head system for record and play-
back, ferrite erase head
1 7/8 ips + 0.5 %
<0.3%
< 0,1 % for C-60 and C-90 cassettes, in playback
mode (weigthed according to JIS)
95 s for C-60 cassette
switchable between:
* min/sec (elapsed real time)
* linear counter, 4 digits
For tape types I, Il and IV
HX PRO * Headroom Extension
With BIAS and LEVEL potentiometers via bargraph
display
DOLBY BandC *, Double-Dolby system forsource
/ tape monitoring
Type |: 3180 + 120 ps
Type Il: 3180 + 70 us
Type lV: 3180+ 70 ps
(with tape, -20 dB, Dolby NR = OFF)
Type |: 30Hz...18 kHz + 3dB
Type ll: = 30Hz...17 kHz + 3dB
Type lV: 30H7z...17 kHz + 3dB
200 nWb/m, corresponds to 0 dB = DOLBY level
at 200 nWb/m (k3 of 333 Hz)
Bias / Erase frequency:
Erase efficiency:
Input AUDIO IN
Sensitivity:
Input impedance:
Max. input level:
Outputs:
AUDIO OUT:
PHONES:
Speciai function:
Power requirements:
Power consumption:
Power fuse, primary:
Environmental operating
conditions:
Operating position:
Weight:
External dimensions:
Subject to change
The tape-specific specifications are achieved with modern high-quality cassettes.
Values measured with:
REVOXx®
105 kHz
> 65 dB @ 1 kHz (DOLBY C = ON)
70 mV for 200 nWb/m
> 10 kohms
10V
Values rel. to 200 nWb/m
-10/0/+6 dBm, Ri = 50 ohms
max. 500 mV, Ri = 100 ohms
Faderstart, to be activated via
6-pole socket DIN 45322
Selectable for 2 ranges:
115 V, range = 90 to 130 V
230 V, range = 190 to 260 V
50...60 Hz
30 W
for 115 V: T315 mA slow-blow
for 230 V: T315 mA slow-blow
Ambient temperature +10 to +40°C
Rel. humidity category F according to DIN 40040
Horizontal installation
7.5 kg net
(WxHxD) w/o rack-mounting brackets
470 x 143 x 366 mm (height = 3 rack units)
cad
Type
|:
<10%
_
Type Ii:
<15%
Type
lV:
<1.5%
¢
Type
|
(Ferro):
TDK
AR-X
é
¢ Type
Il (chromium):
© BASF
Chrome
Super
li
i
Signal-to-noise
ratio
Dolby C
:
|
ref.
to
weighted
3%
distortion:
©
Typel:
|
>
72
dB
(A)
*
Type
IV
(metal):
TDK
MA
4
Tape
Il:
>
73
dB
(A)
ae
4
Type
IV:
>
73
dB
(A)
m
.
Dolby noise reduction and HX PRO headroom extension manufactured. un-
der license from Dolby Laboratories Licensing Corporation. HX PRO was
created by Bang & Olufsen. DOLBY, the double D symbol, and HX PRO
are registered trademarks of Dolby Laboratories Licensing Corporation.
Channel separation:
better than —40 dB @ 1 kHz _
“3
cect Soe)
a FFG é
366

Revox C115 Specifications
