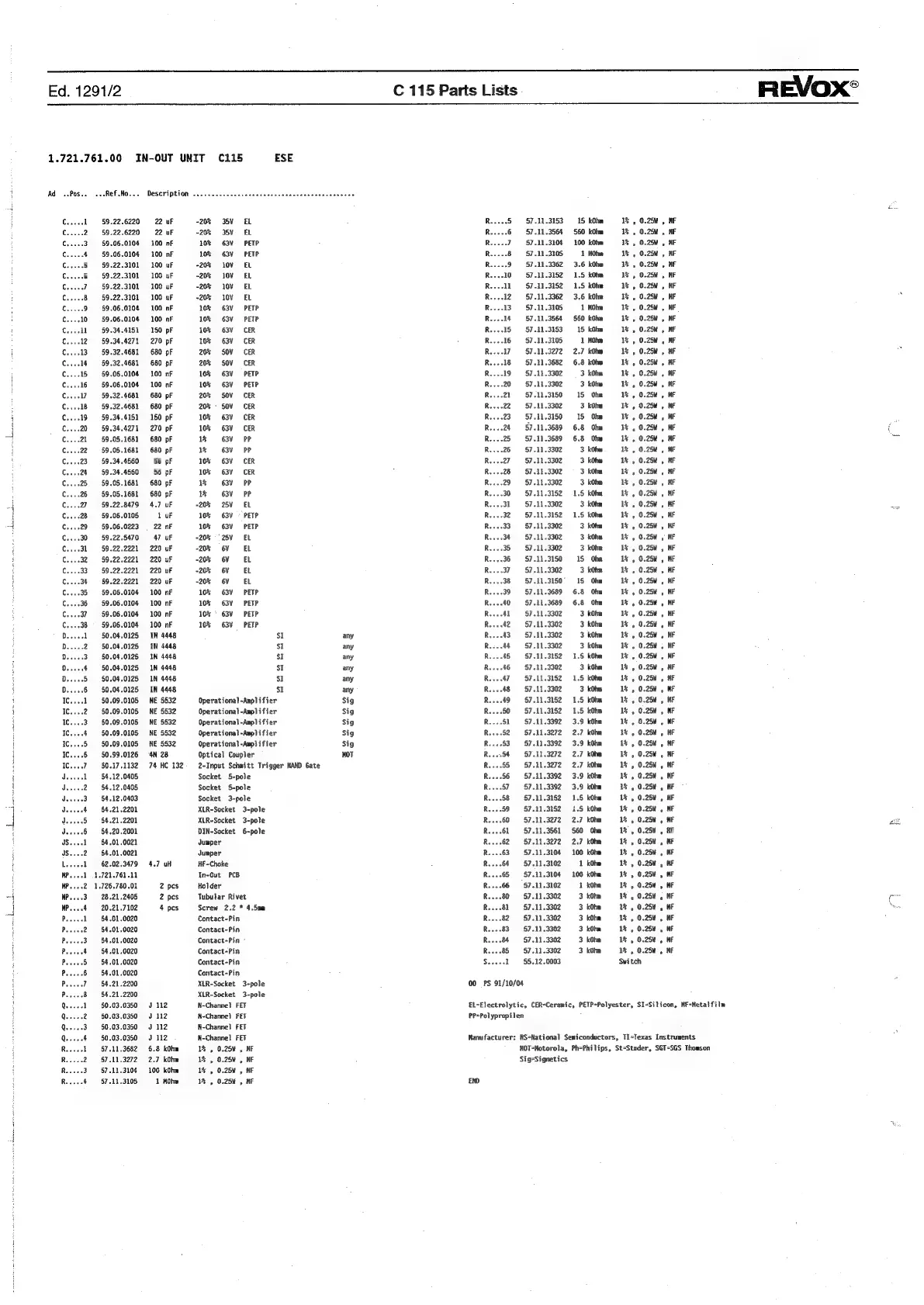

Ed. 1291/2 C 115 Parts Lists
1.721.761.00 IN-OUT UNIT C115 ESE
Ad ..Pos.. ...Ref.No... Description ..
ey omer
59.22.6220 22 uF -20% «35V EL 57.11.3153 15 kOha 1% , 0.250, WF
59.22.6220 22 uF 20% 35¥) EL 57.11.3564 560 kOhe 1% , 0.250 , HF
Cece 3 59.06.0104 100 nF 10% 63V— PETP $7.11.3104 100 kOhm 1% , 0.250 , HF
Cress! 4 §9.06.0104 100 nF 10% 63V¥ PETP 57.11.3105 1 HOha 1% , 0.250 , HF
Cu... 5 §9.22.3101 100 uF -20% 10V) EL 57.11.3362 3.6 kOhe 1% , 0.250, AF
(Ciseee 6 69.22.3101 100 uF -20% 10V) EL §7.11.3152 1.5 kOhe 1%, 0.250 , HF
Cosase, 7 59.22.3101 100 uF ~-20% =10V) EL §7.11.3152 1.5 kOhe 1%, 0.250 , HF
Coeeee 8 §9.22.3201 100 uF -20% 10V EL 57.11.3362 3.6 kOhr 1% , 0.250 , HF 8
§9.06.0104 100 nF 10% 63V—-PETP $7 .11.3105 1 KOhe 1% , 0.25 , HF
59.06.0104 100 nF 10% 63V ~PETP 57.11.3564 560 kOhm % , 0.250, HF
69.34.4151 150 pF 10% 6349 CER $7 .11.3153 15 kOha 1% , 0.250 , HF
§9.34.4271 270 pF 10% 63V CER 57.11.3105 1 HOhe 1% , 0.25 , WF
59.32.4681 680 pF 20% SOV CER §7.11.3272 2.7 kOhe 1%, 0.25W , HF
59.32.4681 680 pF 20% SOV CER 57.11.3682 6.8 kOhs 1% , 0.25" , HF
§9.06.0104 100 nf 10% 63¥ = PETP 57.11.3302 3 kOhn 1% , 0.25W , HF
59.06.0104 100 nF 10% 63¥ PETP §7 .11,3302 3 kOhe 1% , 0.25 , HF
59.32.4681 680 pF 20% SOV CER §7.11.3150 15 Ohe 1% , 0.25, HF
59.32.4681 680 pF 20% + 50V CER 57.11.3302 3 kOhw % , 0.250 , HF
59.34.4151 150 pF 10% 63V CER 57.11.3150 15 Ohe % , 0.250 , HF
i §9.34.4271 270 pF 10% 63¥ CER 57.11.3689 6.8 Ohm % , 0.250 , HF i
59.05.1681 680 pF % 63V PP. 57.11.3689 6.8 Ohe 1% , 0.25W , HF wy.
59.05.1681 680 pF % 63V PP §7.11.3302 3 k0he 1% , 0.25¥ , HF
59.34.4560 56 pF 10% 634 CER 57.11.3302 3 koh 1% , 0.25 , HF
§9.34.4560 56 pF 10% 63V CER §7 .11.3302 3 kOhe 1%, 0.250, HF
59.05.1681 680 pF w% 63V. PP 57.11.3302 3 kOhe 1% , 0.25 , AF
59.05.1681 680 pF % 63¥ PP. 57.11.3152 1.5 kOhm 1% , 0.25, MF
i 59.22.8479 4.7 uF -20% =25V EL 57.11.3302 3 kOhw 1% , 0.25, MF ase
| 59.06.0105, luF 10% 63¥ ~~ PETP R...-32 57.11.3152 1.5 kOhm 1% , 0.250, HF
. 59.06.0223 22 nF 10% 63V PETP Ro. 233 57.11.3302 3 kOhm 1% , 0.25 , HF
C....30 59.22.5470 47 uF -20% = 25V EL R... 34 57.11.3302 3 kOhe 1% , 0.25" , HF
i €....31 §9.22.2221 220 uF -20% 6V EL R....38 §7..11.3302 3 k0he 1% , 0.25W , HF
H C....32 $9.22.2221 220 uF -20% 6V CEL R....36 57.11.3150 15 Ohm 1% , 0.25" , HF
: C....33 §9.22.2221 220 uF ~20% «6V EL R....37 57.11.3302 3 k0ha 1% , 0.25" , HF
t §9.22.2221 220 uF -20% 6V EL R....38 — §7.11.3150° 15 Ohe 1% , 0.25N , HF
| 59.06.0104 100 nF 10% 63V PETP R....39 57.11.3689 6.8 Ohm 1%, 0.25" , HF
: 59.06.0104 100 nF 10% 63V PETP R....40 57.11.3689 6.8 Ohm 1% , 0.25, HF
59.06.0104 100 nF 10% + 63¥ PETP R... 4d §7 11.3302 3 kOhw 1% , 0.25, HF
: 59.06.0104 100 nF 10% 63V_— PETP R....42 57.11.3302 3 kOha 1%, 0.250 , HF
; 50.04.0125 1N 4448 SI any 57.11.3302 3 kOhw Y% , 0.25", HF
i 50.04.0125 IN 4448 SI any 57.11.3302 3 kOha 1%, 0.250 , HF
: $0.04.0125 IN 4448 SI any §7.11.3152 1.5 kOhw 1% , 0.25W , HF
: $0.04,0125 1N 4448 SI any 57.11.3302 3 kOha 1% , 0.250, HF
i $0.04.0125 1N 4448 SI any R....47 $7.11,3152 1.5 kOhe 1% , 0.25", HF
' 50.04.0225 IN 4448 SI any R...-48 57.11.3302 3 kOhe 1% , 0.25W , HF
: 50.09.0105 NE 5532 Operational -Auplifier Sig R....49 57.11.3152 1.5 kOhw 1% , 0.25" , HF
i 60.09.0105 NE 5532 Operational -Amplifier Sig R....50 57.11.3152 1.5 k0he 1% , 0.25 , WF
\ §0,09,.0205 NE 5532 Operational -Amplifier Sig R....$1 $7.11.3392 3.9 kOhw Ms, 0.25¥ , HF
i 60.09.0105 NE 5532 Operational -Asplifier Sig R...-52 57.11.3272 2.7 kOhw 3%, 0.250, HF
H 50.09.0105 NE 5532 Operational -Ampli fier Sig R....53 57.11.3392 3.9 kOhm 1% , 0.250 , HF
i 50.99.0126 -4N 28 Optical Coupler HOT R....54 57.12.3272 2.7 kOhe 1% , 0.25W , HF
i 90.17.1132 74 HC 132 2-Input Schwitt Trigger NAND Gate R....55 57.11.3272 2.7 kOhm 1% , 0.25" , MF
} 54.12.0405 Socket 5-pole R....56 §7.11.3392 3.9 k0he 1%, 0.25" , HF
i 54.12.0405 Socket S-pole §7.11.3392 3.9 kOhw a% , 0.250 , HF
54.12.0403 Socket 3-pole §7.11.3152 1.5 kOhe 1% , 0.250 , HF
§4.21.2201 XLR-Socket 3-pole §7.11.3152 i.5 kOhe 1% , 0.250 , HF
$4.21.2201 XLR-Socket 3-pole 57.12.3272 2.7 kOhe 1% , 0.250 , MF es
54.20.2001 DIN-Socket 6-pole 57.11.3561 560 Ohe 1%, 0.25¥ , HF
$4.01.0021 Jumper §7.11.3272 2.7 kOhm 1% , G.25W , AF
; 54.01.0021 Jumper $7.11.3104 100 kOhe 1% , 0.25 , HF
: 62.02.3479 4.7 ul HF-Choke 57.11.3102 1 kOhe 1% , 0.25W , KF
: 1,721.761.11 In-Qut PCB §7.11.3104 100 kOhw 1%, 0.25, WF
i 1.726.780 .01 2 pes Holder §7..11.3102 1 kha % , 0.25, HF
4 28.21.2405 2 pes Tubular Rivet 57.11.3302 3 kOhn % , 0.250 , WF
20.21.7102 4 pes Screw 2.2 * 4.5ne 57 11.3302 3 kOhe 1%, 0.25W , HF
§4.01.0020 Contact-Pin 57.11.3302 3 kOhe 1% , 0.250 , HF
§4.01.0020 Contact-Pin $7.11 .3302 3 kOha 1% , 0.254 , HF
! 54.01.0020 Contact-Pin - 97.11.3302 3 kOha 1% , 0.250 , HF
} §4.01.0020 Contact-Pin $7 .11.3302 3 kha 1% , 0.250 , HF
i 54.01.0020 Contact-Pin $5.12.0003 Switch
54.01.0020 Contact-Pin
54.21.2200 XLR-Socket 3-pole 00 PS 91/10/04
54.21.2200 XLR-Socket 3-pole
60.03.0350 J 112 H-Channet FET EL=Electrolytic, CER=Ceramic, PETP=Polyester, SI=Silicon, HF<Metalfilm
50.03.0350 J 112 N-Channel FET PP=Polypropilen
50.03.0350 J 112 N-Channel FET .
§0.03.0350 J 112 N-Channel FET Manufacturer: NS-Hational Semiconductors, Tl=Texas Instruments :
§7.11.3682 6.8 kOhe 1% , 0.250, HF WOT=Hotorola, Ph=Philips, St=Studer, SGT=SGS Thomson
§7.11.3272 2.7 k0he 1% , 0.250 , HF Sig=Signetics
57.11.3104 100 kOhe 1% , 0.250 , HF
57.11.3105 1 4Ohe 1% , 0.254 , HF END
