INSTALLATION INSTRUCTIONS
WARNINGS:
• When pipe insulation is not rated for the appropriate
weather conditions, install electric heat tracing or
equivalent to prevent freezing of the pipes.
• D o not insulate or block drain valve on the hot outlet
fitting.
• I f pipes are allowed to freeze, the water heater and
the pipes may malfunction or leak due to freezing
water.
NOTICE: The hot and cold water supply pipes
should be insulated to provide additional freeze
protection.
For increased energy efficiency, use pipe insulation as
shown in the diagram. Insulate the pipes all the way
to the top. DO NOT cover any drain or pressure-relief
valve(s).

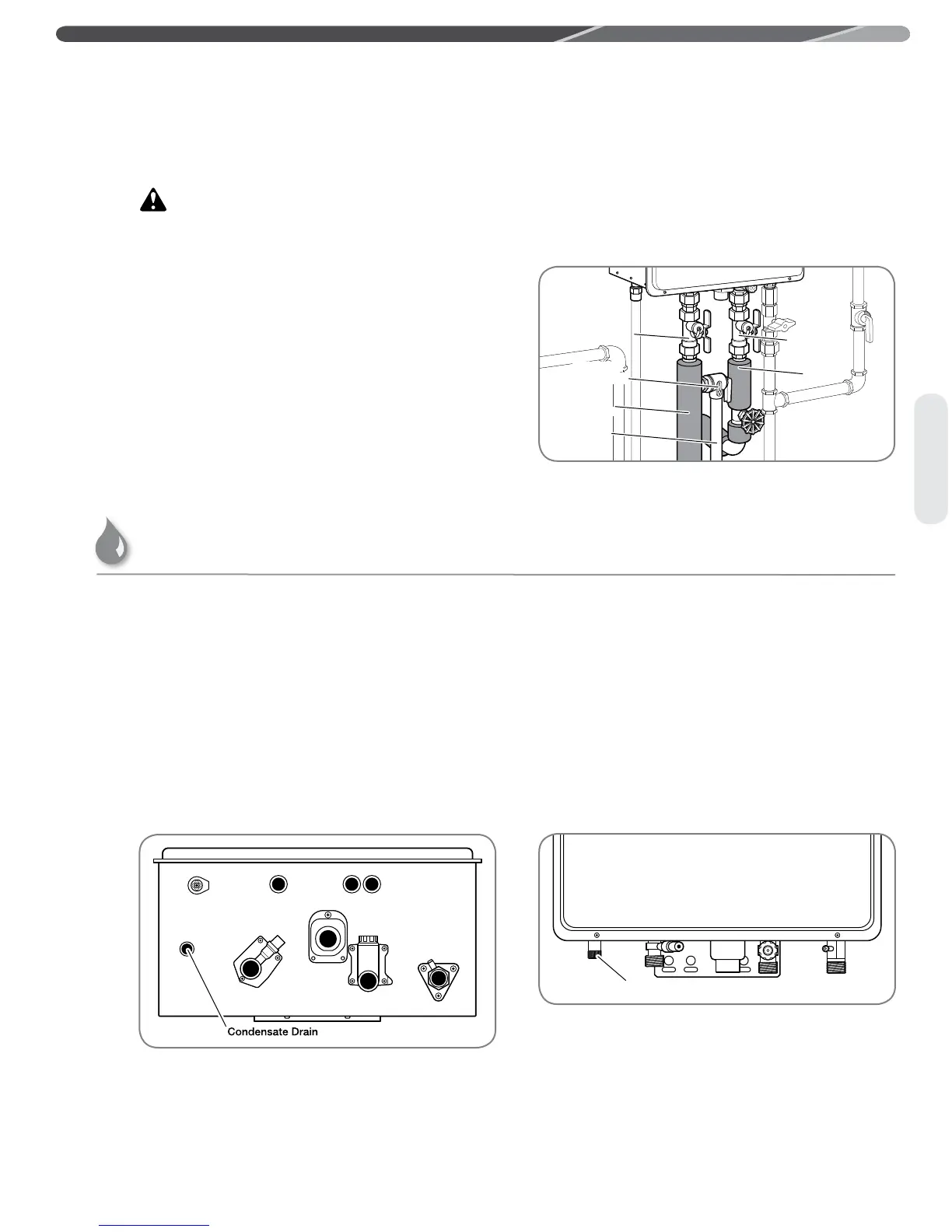

Hot and Cold Pipe Insulation Installation
Cold Water
Service Valve
Hot Water
Service Valve
Pressure
Relief Valve
Pressure
Relief Valve
Water
Outlet
Water
Outlet
Water
Inlet
Water
Inlet
Drain
Drain
Condensate Drainage
Be sure the condensate runs freely to a drain and
does not accumulate inside the water heater. In cold
climates, precautions may need to be taken to ensure
that the condensate drain does not freeze.
• All condensation must drain and dispose of per local
code.
• I f the condensate drain gets blocked, an error code
will display on the remote control. If this occurs, the
condensate drain must be cleared.
• Use only PVC or CPVC pipe or flexible tube for the
condensate drain line.
• The drain pipe (along its entire length) must be at
least the same diameter as the drain line.
• The drain line should be as short as possible and
have a downward slope toward the end.
• The end of the drain pipe should be open to the
atmosphere. The end should not be under water or
other substances.
• D o not connect the drain pipe directly to the drain
sewer.
• D o not connect the drain pipe with an air-
conditioning evaporator coil drain.
Condensate
Plumbing
