Wiring — A polarized 120V 50/60 Hz power
supply, with suitable disconnect means, must
be connected to the black and white leads
provided. The maximum current draw by these
models are 5 Amps. The water heater, when
installed, must be electrically grounded in ac-
cordance with local codes, or, in the absence
of local codes, with the National Electrical
Code, ANSI/NFPA 70 in the United States; or
CSA C22.1 Electrical Code, in Canada. Im-
proper grounding may result in abnormal op-
eration of the unit. Refer to Figure 18 in this
manual for water heater internal wiring dia-
grams.
All electrical wiring and connections must be
in accordance with local codes. This water
heater must be electrically grounded. Elec-
trical power should be supplied through a
fused disconnect switch located near the
water heater. Where local codes permit, use
the supplied power cord for field connection.
A grounding receptacle is required. If local
codes DO NOT permit the use of the supplied
cord, disconnect the power cord from the
junction box and replace with suitable power
supply (120V, 60Hz) wiring and connections.
The water heaters draws less than 5 amps
(maximum). Check for proper polarity at the
main power connection prior to operating the
water heater.
CAUTION
Turn off or disconnect the electrical power supply to the water heater before serving. Label all wires
prior to disconnect when servicing controls. Wiring errors can cause improper and dangerous opera-
tion. Verify proper operation (including limits and safeties) after servicing.
Installation

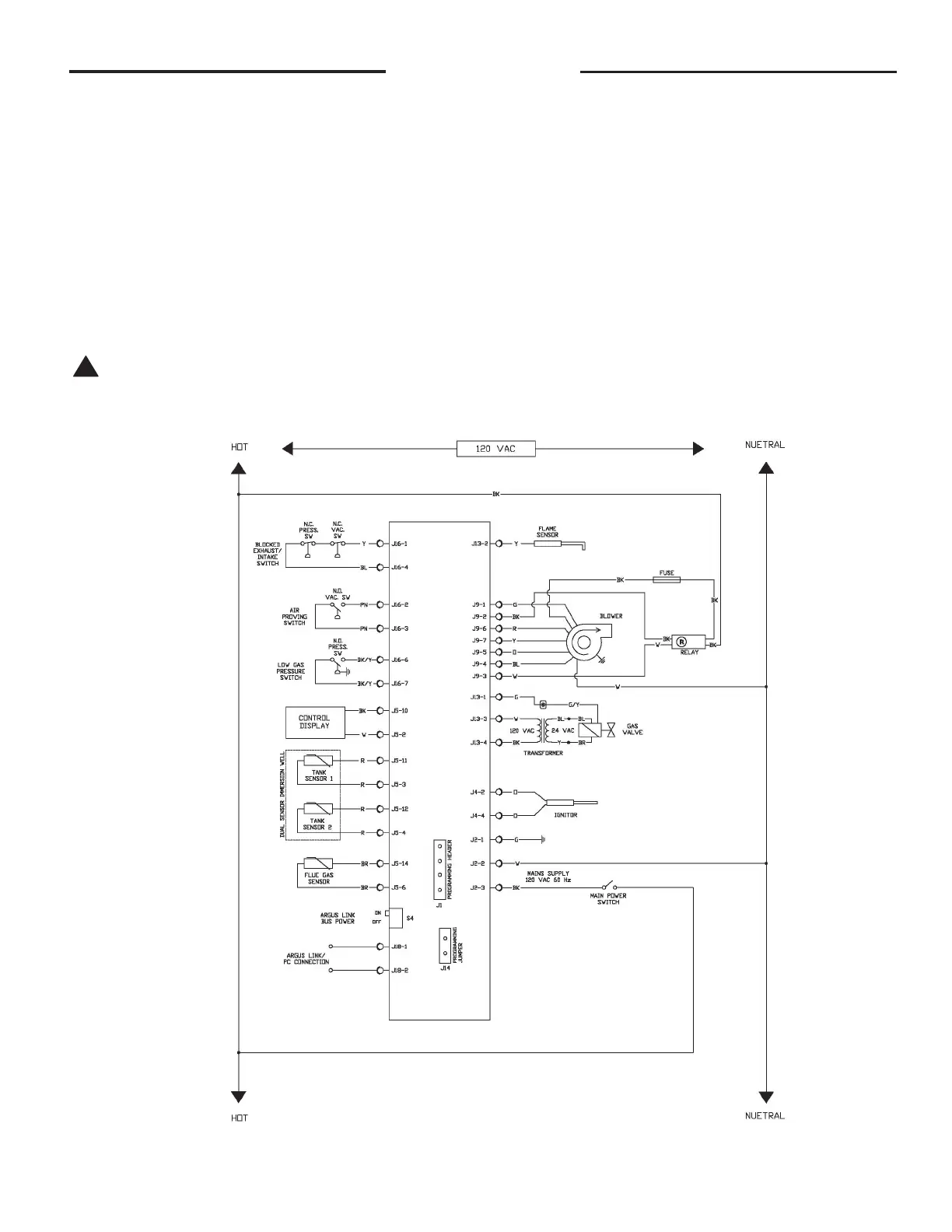

Component Wiring Diagram
Figure 19
