Rheem RA13 Series User Manual

Air

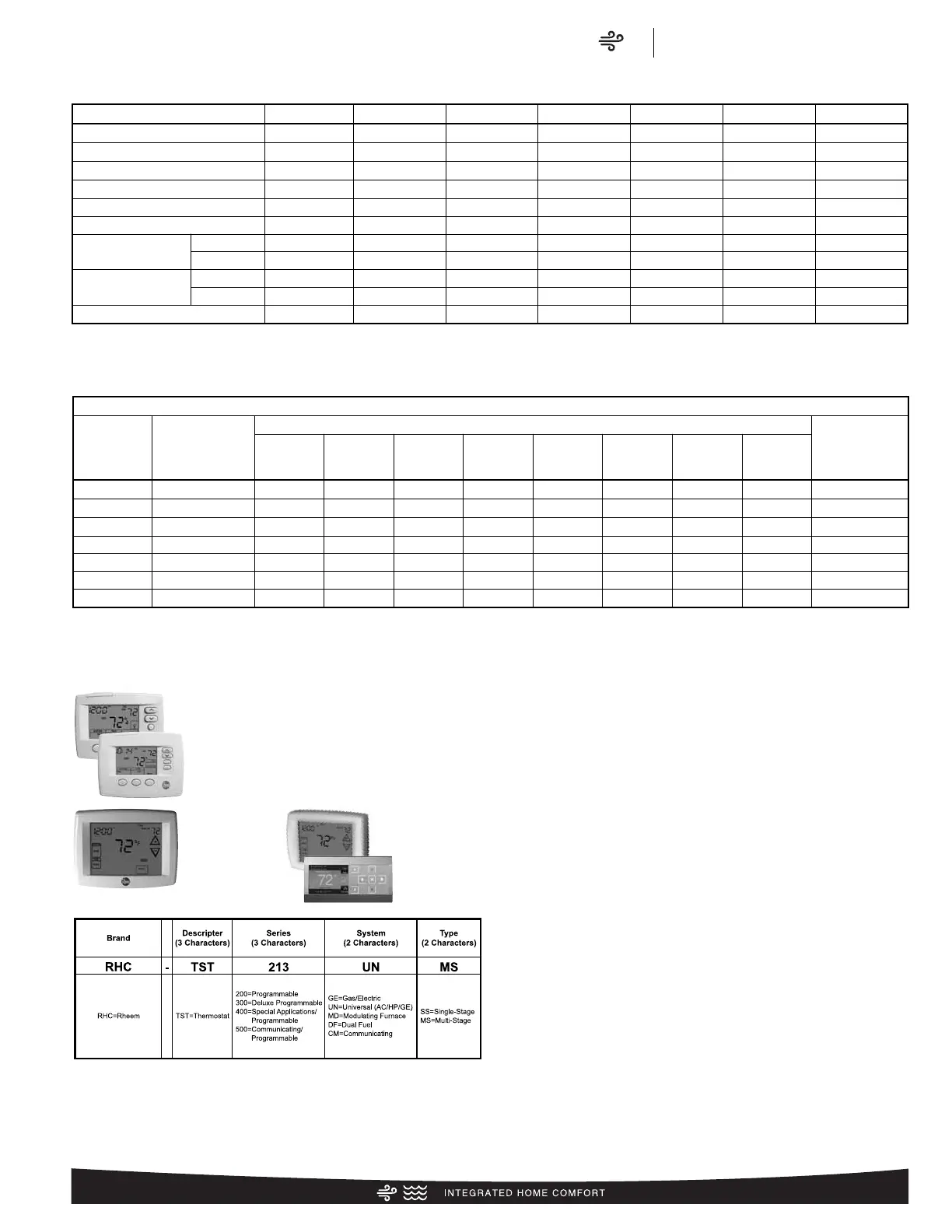

Accessories/Weighted Sound Power/Thermostats
RA13 Series
9
Accessories
Model No. RA1318 RA1324 RA1330 RA1336 RA1342 RA1348 RA1360
Compressor crankcase heater* 44-17402-44 44-17402-44 44-17402-44 44-17402-44 44-17402-45 44-17402-45 44-17402-45
Low ambient control RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08 RXAD-A08
Compressor sound cover 68-23427-26 68-23427-26 68-23427-26 68-23427-26 68-23427-25 68-23427-25 68-23427-25
Compressor hard start kit SK-A1 SK-A1 SK-A1 SK-A1 SK-A1 SK-A1 SK-A1
Low pressure control RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07 RXAC-A07
High pressure control RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07 RXAB-A07
Liquid Line Solenoid
(24 VAC, 50/60 Hz)
Solenoid Valve 61-200RD2T3TVLC 61-200RD2T3TVLC 61-200RD2T3TVLC 61-200RD2T3TVLC 61-200RD2T3TVLC 61-200RD3T3TVLC 61-200RD3T3TVLC
Solenoid Coil 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V 61-AMG24V
Liquid Line Solenoid
(120/240 VAC, 50/60 Hz)
Solenoid Valve 61-200RD2T3TVLC 61-200RD2T3TVLC 61-200RD2T3TVLC 61-200RD2T3TVLC 61-200RD2T3TVLC 61-200RD3T3TVLC 61-200RD3T3TVLC
Solenoid Coil 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V 61-AMG120/240V
Top Cap w/Label 91-101123-21 91-101123-21 91-101123-21 91-101123-21 91-101123-21 91-101123-21 91-101123-21
*Crankcase Heater recommended with Low Ambient Kit.
Weighted Sound Power Level (dBA)
RA13 Sound Power Level
Model
Sound Power
Level [dB(A)]
Full Octave Linear Sound Power Level dB - Center Frequency - Hz
Sound Power
Level [dB(A)]
with Sound
Blanket
125 250 500 1000 2000 4000 6300 8000
RA1318 79.1 57.3 63.1 69.8 69.5 65.6 60.5 56.3 53.3 NR
RA1324 75.5 55.4 60.3 64.7 66.4 62.6 58.0 54.3 52.4 NR
RA1330 78.1 51.4 67.4 67.5 68.2 65.5 59.8 55.6 53.6 NR
RA1336 77.5 55.1 66.1 66.9 68.2 64.6 60.7 57.4 55.6 NR
RA1342 72.7 48.9 56.1 62.9 62.2 61.1 55.2 51.9 50.2 NR
RA1348 75.8 51.4 59.6 65.2 65.9 64.3 58.5 55.2 53.7 75.2
RA1360 77.7 51.7 60.9 66.9 70.4 63.5 57.4 55.4 53.8 NR
NOTE: Tested in accordance with AHRI Standard 270-08 (not listed in AHRI)
* Photos are representative. Actual models may vary.
For detailed thermostat match-up information,
see specification sheet form number T11-001.
300-Series *
Deluxe
Programmable
400-Series *
Special Applications/
Programmable
500-Series *
Communicating/
Programmable
200-Series *
Programmable
Thermostats
