Rheem Raypak CROSSWIND V Series User Manual

38
23. PLUMBING DIAGRAMS
WATER OUT (TO POOL OR SPA)
FILTER
WATER IN (TO POOL OR SPA)
PUMP
CHECK VALVE
CHEMICAL INTRODUCTION

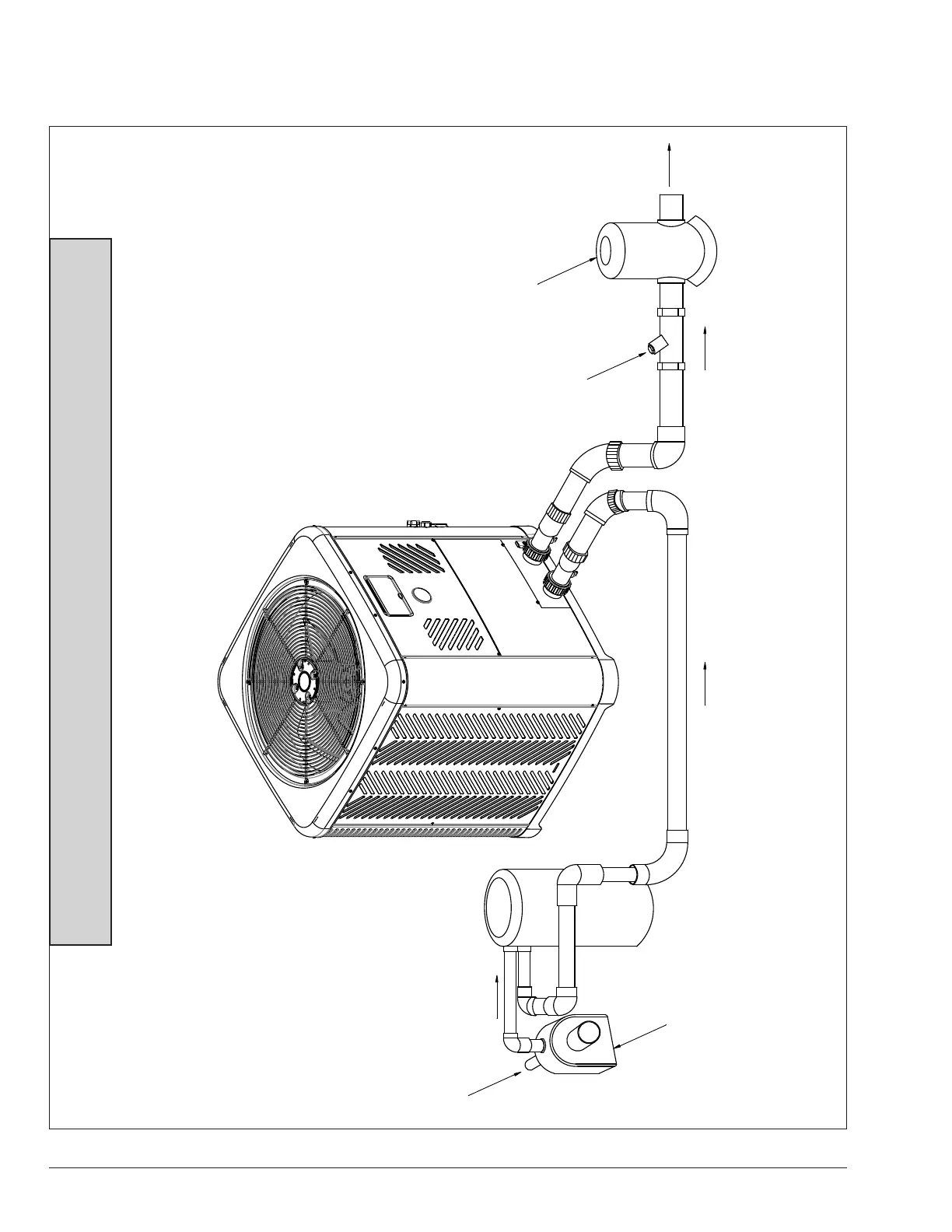

Figure 63. Plumbing Schematic – No External Bypass (Plumb the heater AFTER the lter and before any chlorinators.)
NOTE: Models 4550 – For systems with pumps less than 1-1/2 HP (under 40 GPM / 151 LPM) Models 5550-8550 – For systems with pumps less than 2 HP (under 50 GPM / 189 LPM) No external bypass required.
