WIDTH
17 = 17.5” (600-1200 CFM) 24 = 24.5 (1400-1800 CFM)
21 = 21” (800-1600 CFM)
NOMINAL CAPACITY
24 = 18,000-24,000 BTU/H
36 = 30,000-36,000 BTU/H
48 = 42,000-48,000 BTU/H
60 = 60,000 BTU/H
FIGURE 2
MODEL NUMBER EXPLANATION
(-) H 1 V 24 17 S T A N A A ***
NOTES:
1) J Voltage (230V) single phase air handler is designed to be used with single or three phase 230 volt power. In the case
of connecting 3-phase power to the air handler terminal block, bring only two leads to the terminal block. Cap, insulate
and fully secure the third lead.
2) The air handlers are shipped from the factory with the proper indoor coil installed, and cannot be ordered without a coil.
3) Electric heat elements are field-installed items.
4) The air handlers do not have an internal filter rack. An external filter rack or other means of filtration is required.
2.2 MODEL NUMBER EXPLANATION (SEE FIGURE 2)
AVAILABLE MODELS
RH1V2417STANJA
RH1V3617STANJA
RH1V3621MTANJA
RH1V4821STANJA
RH1V4824STANJA
RH1V6024STANJA
AVAILABLE MODELS
RHIV3621HTANTA
RHIV4821MTANTA
RHIV6021STANTA
RH2V2421HTACJA
RH2V3624HTACJA
RH2V4824HTACJA
RH2V6024HTACJA

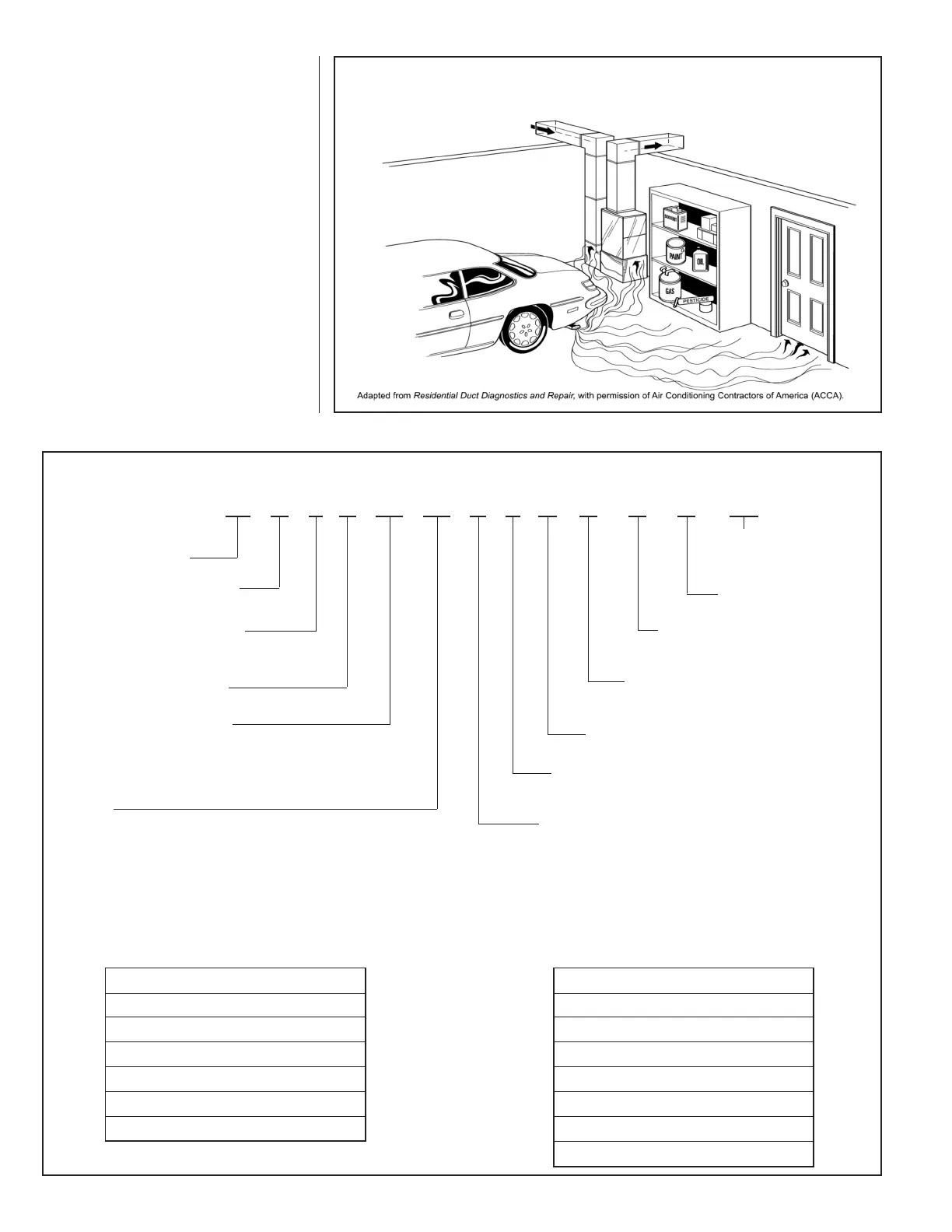

FIGURE 1
MIGRATION OF DANGEROUS SUBSTANCES, FUMES, AND ODORS INTO LIVING SPACES
6
OPTION CODE
(SEE ADS-3803)
BLANK = NONE
MINOR SERIES
A = FIRST
VOLTAGE
A = 115/1/60 J = 208/240/1/50
D = 480/3/60 T = 220/240/1/50
MOTOR TYPE
V = ECM
STAGES OF AIR FLOW
1 = SINGLE
2 = TWO STAGE
PRODUCT CATEGORY
H = AIR HANDLER
CONTROLS
C = COMMUNICATING
N = NON-COMMUNICATING
MAJOR SERIES
A = FIRST
METERING DEVICE
T = TEV P = PISTON
E = EEV
COIL EFFICIENCY
S = STANDARD H = HIGH
M = MEDIUM
BRAND
