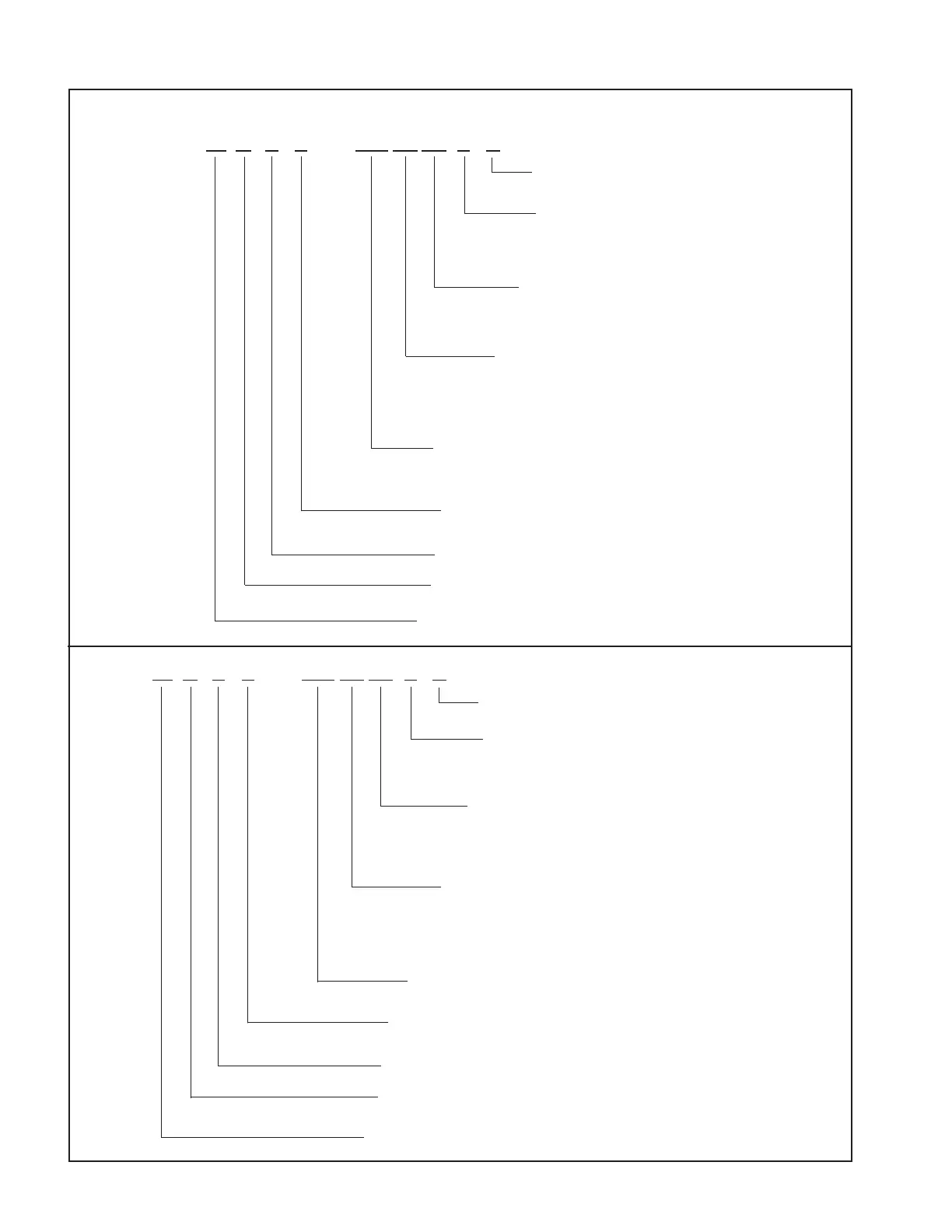

FIGURE 2
MODEL NUMBER EXPLANATION
(-) H S L — HM 18 17 J A
DESIGN VARIATION
A = 1
ST
DESIGN
VOLTAGE
A = 115/1/60
D = 480V-3-60
J = 208/240/1/60
CAPACITY
18 = 18,000 BTU/H 42 = 42,000 BTU/H
24 = 24,000 BTU/H 48 = 48,000 BTU/H
30 = 30,000 BTU/H 60 = 60,000 BTU/H
36 = 36,000 BTU/H
HM = A/C OR HP MULTI-POSITION
HM = (Vertical Upflow/Horizontal Left is the factory configuration)
REFRIGERANT
L = R-410A
S = STANDARD MODEL (PSC MOTOR)
CABINET SIZE
17 = 17.5" (600 - 1200 CFM)
21 = 21" (1200 - 1600 CFM)
24 = 24.5" (1600 -1800 CFM)
TRADE BRAND
CLASSIFICATION
H = AIR HANDLER
2.4 MODEL NUMBER EXPLANATION
(-) H L L — HM 24 17 J A
DESIGN VARIATION
A = 1
ST
DESIGN
VOLTAGE
A = 115/1/60
J = 208/240/1/60
D = 480/3/60
CAPACITY
24 = 18,000 / 24,000 BTU/H
36 = 30,000 / 36,000 BTU/H
38 = 30,000 / 36,000 / 42,000 BTU/H
48 = 42,000 / 48,000 BTU/H
60 = 60,000 BTU/H
HM = A/C OR HP MULTI-POSITION
HM = (Vertical Upflow/Horizontal Left is the factory configuration)
REFRIGERANT
L = R-410A
L = HIGH EFFICIENCY (X-13 MOTOR)
CABINET SIZE
17 = 17.5" (600 - 1200 CFM)
21 = 21" (3821 = 1000 - 1200 CFM)
21 = 21" (4821 = 1400 - 1600 CFM)
24 = 24.5" (1600 - 1800 CFM)
TRADE BRAND
CLASSIFICATION
H = AIR HANDLER
