Rheem RTEX-04T User Manual

5

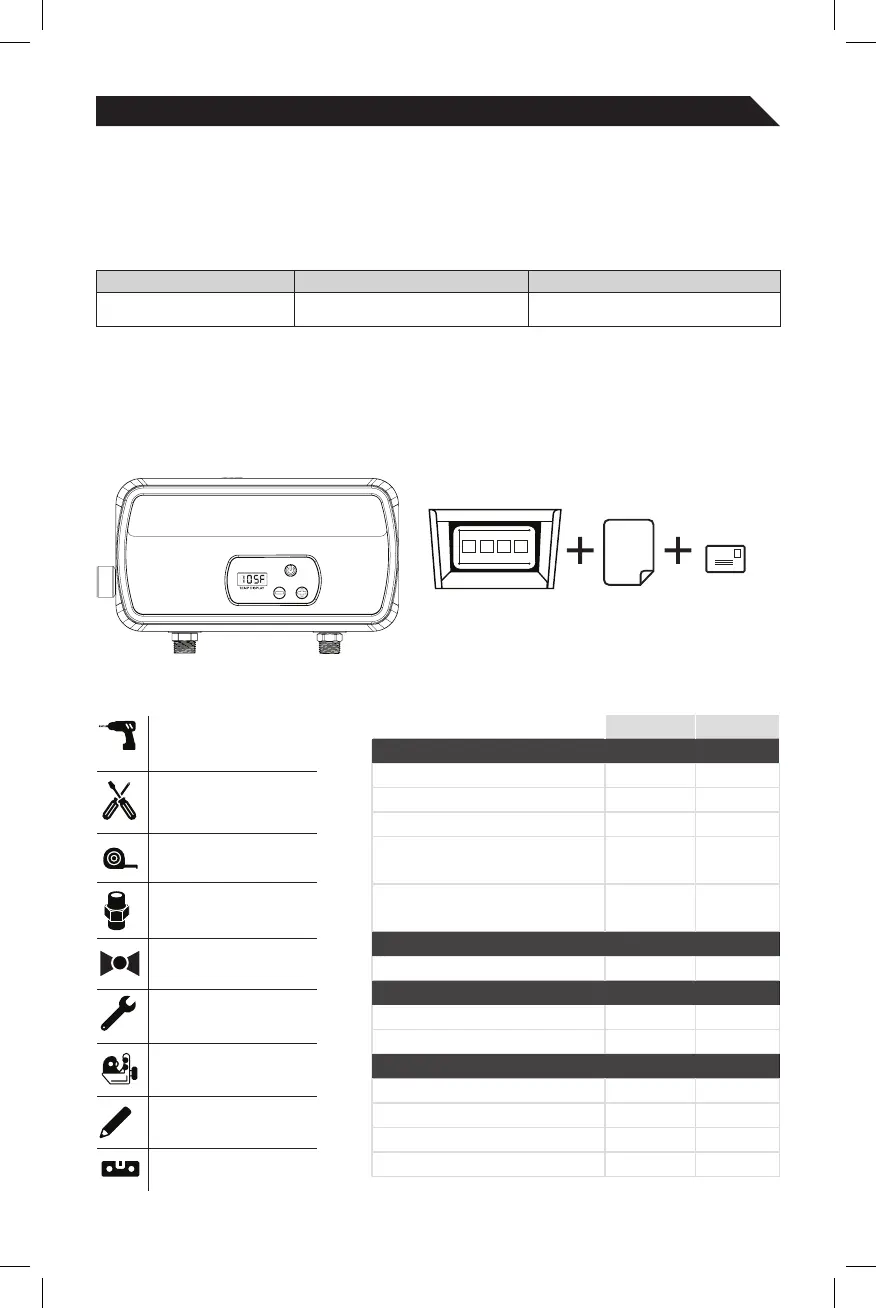

BEFORE INSTALLATION
PLEASE READ THESE INSTRUCTIONS THOROUGHLY AND COMPLETELY PRIOR TO
INSTALLATION & USE. FAILURE TO FOLLOW INSTRUCTIONS COULD CAUSE PROPERTY
DAMAGE, SERIOUS PERSONAL INJURY, OR DEATH.
By installing this product, you acknowledge the terms of the manufacturer’s warranty. Once the
heater is installed, do not return product to the place of purchase. If you have any questions
regarding the warranty or product return policies, please contact:
Electric drill for
pre-drilling holes
Phillips and Flat head
screwdrivers
Tape measure/ruler
½” dielectric unions - 3.5 kW
½” dielectric unions - 6.5 kW
½” shut off valves - 3.5 kW
½” shut off valves - 6.5 kW
Adjustable wrench
Pipe cutter
(may be benecial)
Pencil
Level
REQUIRED TOOL LIST:
3.5 kW 6.5 kW
ELECTRICAL
Power (kW) 3.5 kW 6.5 kW
Voltage (V) 120V 240V
Total Current (Amps) 29 27
Required Wire Size
(CU) 75ºC (AWG)
10 10
Required minimum breaker size
(per NEC-Intermittent Duty)
1x30 Double pole
TEMPERATURE
Temperature Adjustment Range (F) 60-140 60-140
PLUMBING
Turn-On Flow Rate (GPM) 0.25 0.25
Inlet & Outlet Fittings ½” NPT ½” NPT
PRODUCT INFORMATION
Product Height (in) 6 6
Product Width (in) 11 11
Product Depth (in) 3 3
Product weight (lb) 4 4
PRODUCT SPECIFICATIONS:
Manual
Warranty Card
(inside manual)
Installation
Template
Inspect all components.
The contents of your box should include one of the following units:
BRAND CALL EMAIL
Rheem
®
or Richmond
®
800-374-8806 eco.support@eemax.com
3.5 kW or 6.5 kW
AERATOR SUPPLIED IS .35GPM/1.3LPM
