INSTALLATION INSTRUCTIONS
NOTICE:
Wifi remote must be installed Indoors.

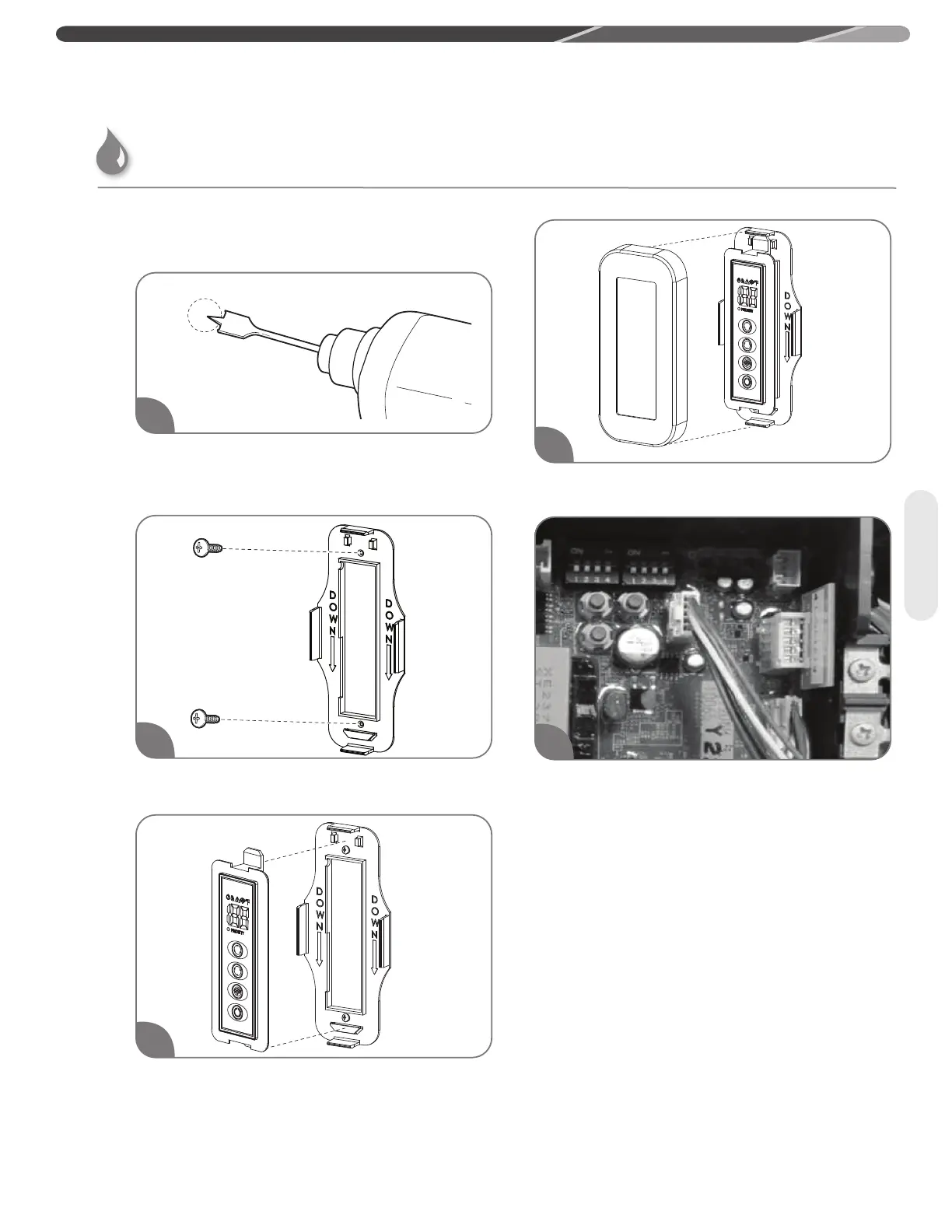

Drill a 1- to 1 1/2 in. hole at the proposed control
location. Run the control cable between the
.retaeh retaw eht dna lortnoc etomer eht fo noitacol
Install the base of the wall mount to the wall using
2 included screws.
Install the wifi display into the wall mount by
resting the bottom tab into the slot on the wall
mount. Then push the top tab of the wifi diplay
into the retention clips and connect the wire
harness.
Install the front cover over the wifi display and
snap it in to secure.
Plug the other end of the cable into the PCB of the
water heater, which will be indoors.
