CONNECTIONS – ELECTRICAL
40

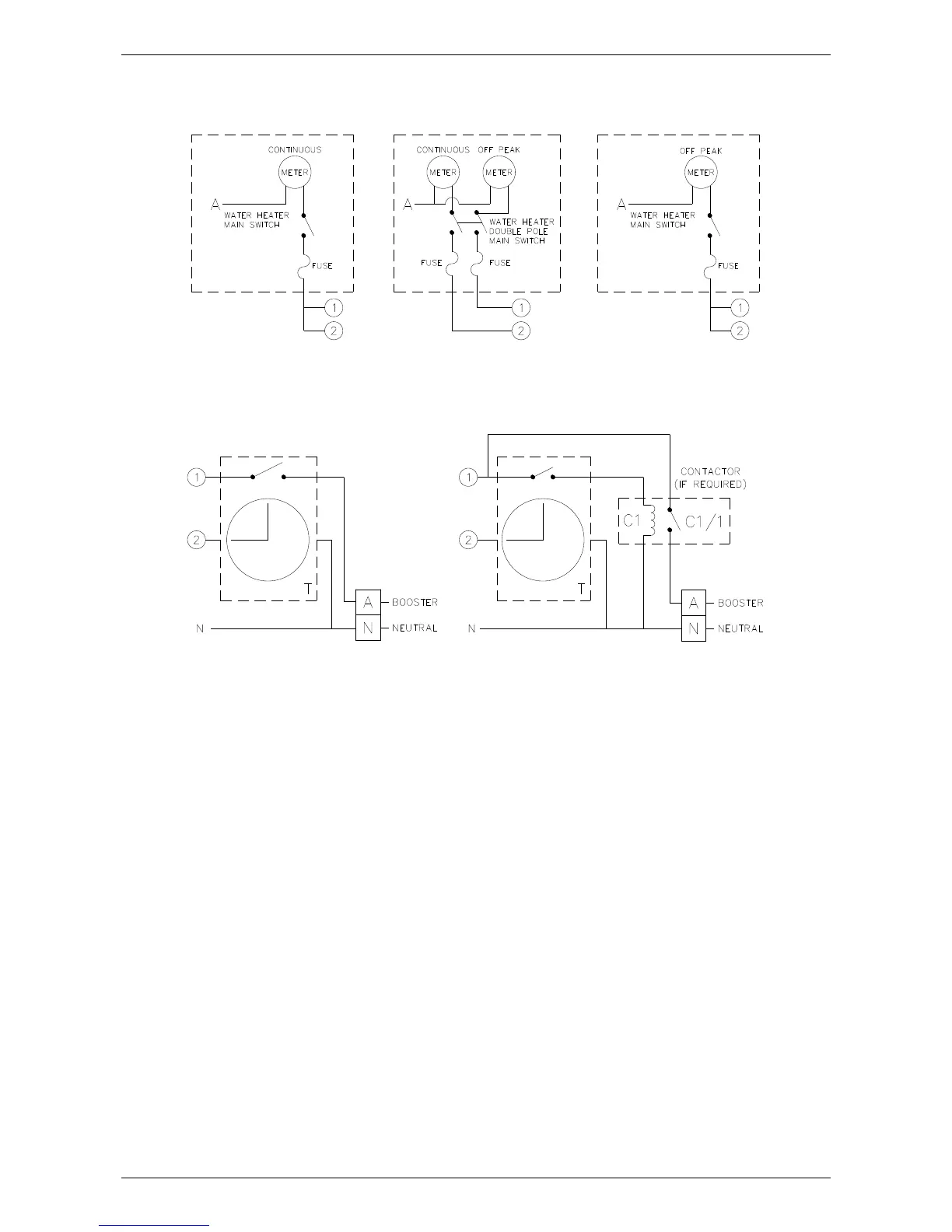

TIMER CONTROL SWITCH WIRING DIAGRAM
CONTINUOUS
POWER SUPPLY
Switchboard
EXTENDED OFF-PEAK
POWER SUPPLY
Switchboard
Timer
Terminal Block
TIMER WITHOUT CONTACTOR
Timer
Terminal Block
TIMER WITH CONTACTOR (if required)
EXTENDED OFF-PEAK
POWER SUPPLY
(timer with rechargeable battery)
Switchboard
TIMER WIRING DIAGRAMS
ELECTRIC BOOSTED DIRECT SOLAR WATER HEATER
