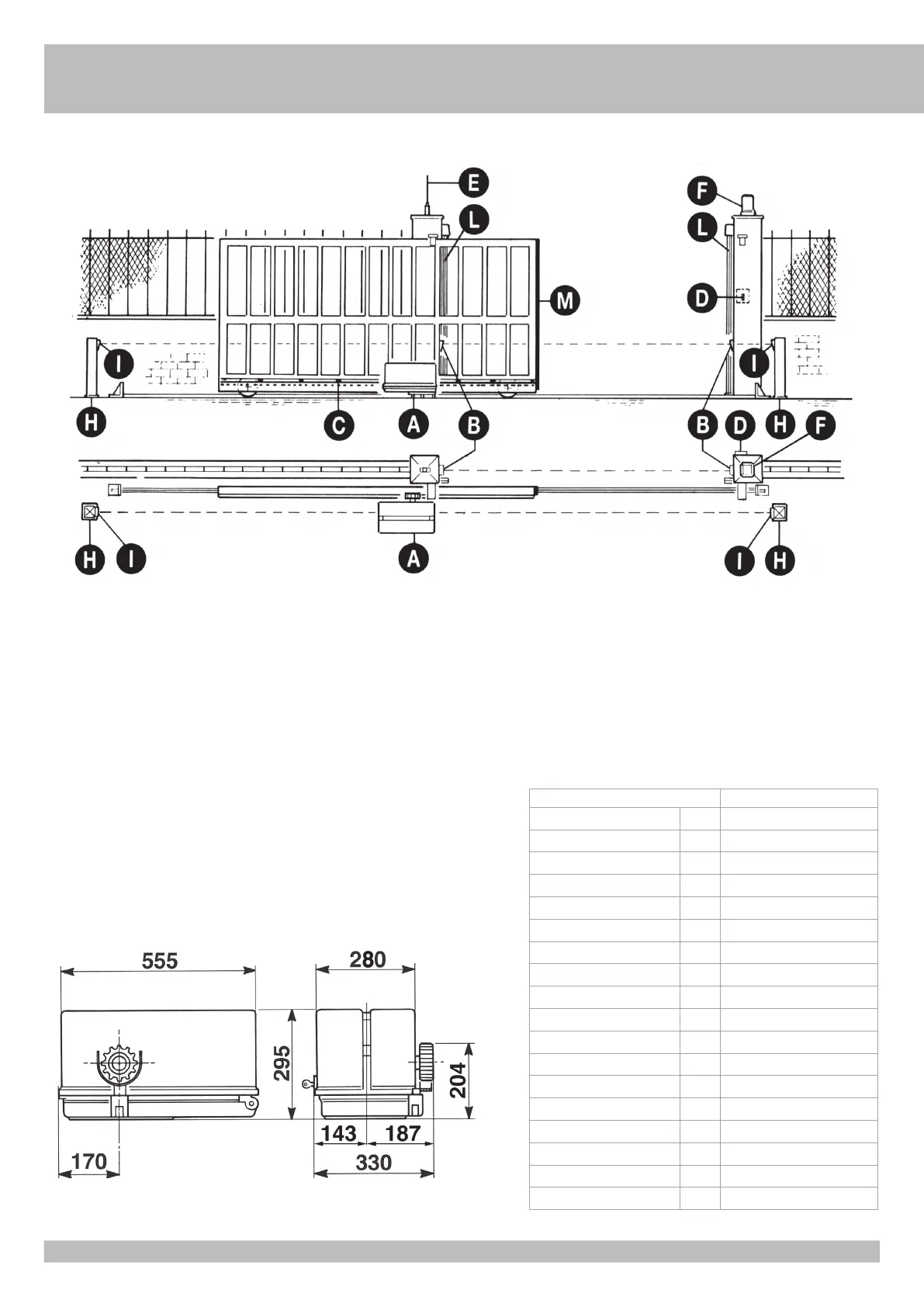

SYSTEM LAY-OUT
TECHNICAL FEATURES
Irreversible operating devices for sliding gates with a maximum weight of 3600 kg / 4.846
lbs.
The irreversibility of this operating device allows you to avoid using any electric lock for an effective
closing of the gate. The motor is protected by an heat probe, that temporary interrupts the
operating cycle in case of prolonged use.
Measurements in mm/inch
11,6 “
5,6”
13”
7,36”
6,7”
11”
21,65”
6,14 “
A - SUPER 3600 operator
B - Photoelectric cells (external)
C - Rack M6
D - Key selector
E - Tuned aerial
F - Flashing lamp
H - Galvanized column for P.E. cells
I - Photo electric cells (internal)
L - Safety strip fixed to column
M - Mecanichal or electrical safety strip with RED transmitter
1
TECHNICAL DATA SUPER 3600
Max. leaf weight kg
3600
Operating speed m/s
0,165
Thrust force to constant turns N
4700/4150
Max torque Nm
200/175
Rack module M
6
Power supply
230V~ 50/60Hz
Motor capacity W
1885/1861
Power absorbed A
8,7/7,9
Capacitor µF
50
Normative cycles n°
100-72s/2s
Daily operations suggested n°
700
Service %
100
Guaranteed consecutive cycles n°
700/10m
Lubrification
SHELL OMALA S2 G100
Weight of electroreducer kg
42
Noise db
<70
Working temperature °C
-10 ÷ +55
Protection IP
55
