1.4.4 Logical Boundary of TOE
The Basic Functions and Security Functions are described as follows:

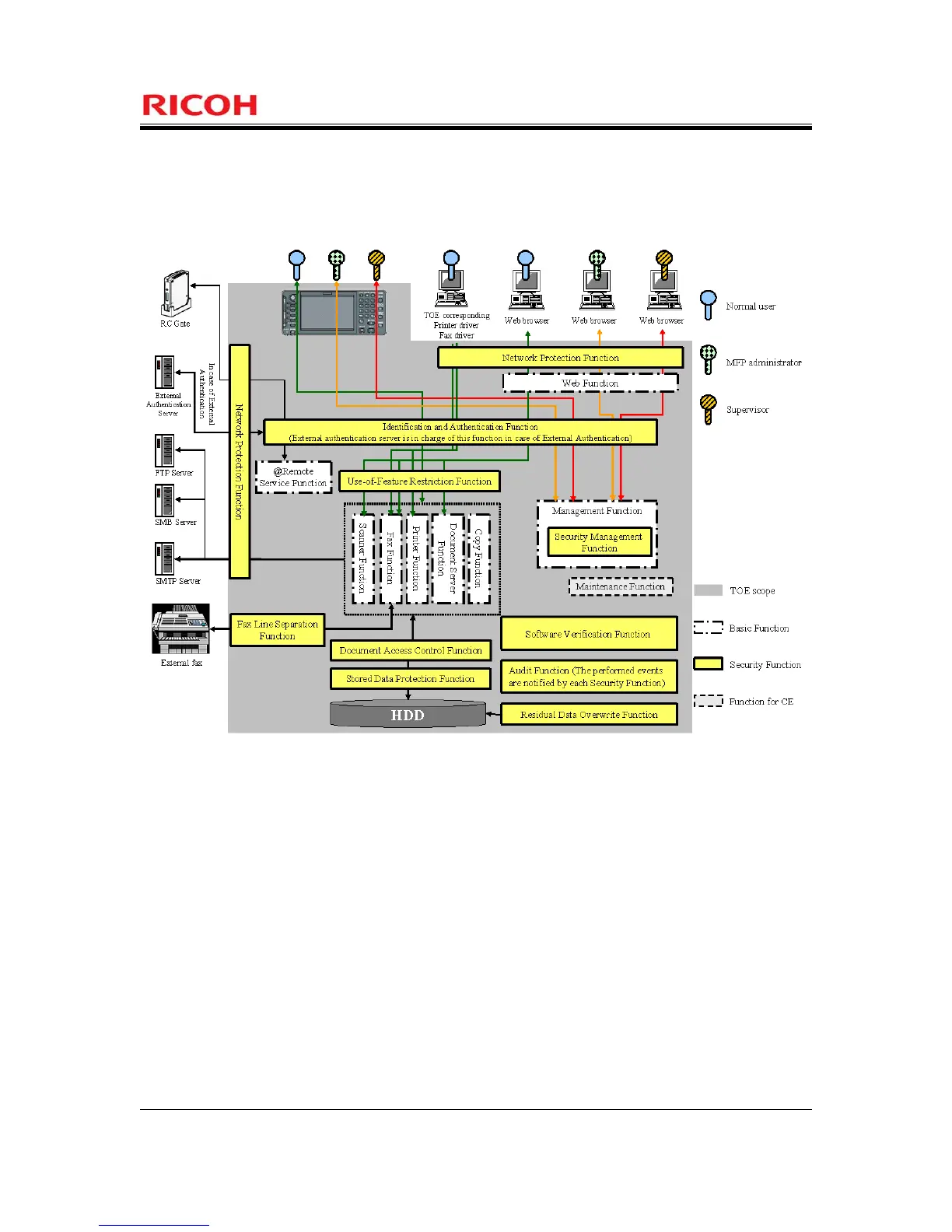

Figure 3 : Logical Scope of the TOE
1.4.4.1. Basic Functions
The overview of the Basic Functions is described as follows:
Copy Function
The Copy Function is to scan paper documents and copy scanned image data from the Operation Panel.
Magnification and other editorial jobs can be applied to the copy image. It can also be stored on the HDD as
a Document Server document.
Printer Function
The Printer Function of TOE is to print or store the documents the TOE receives from the printer driver
installed on the client computer. It also allows users to print and delete the stored documents from the
Operation Panel or a Web browser.
