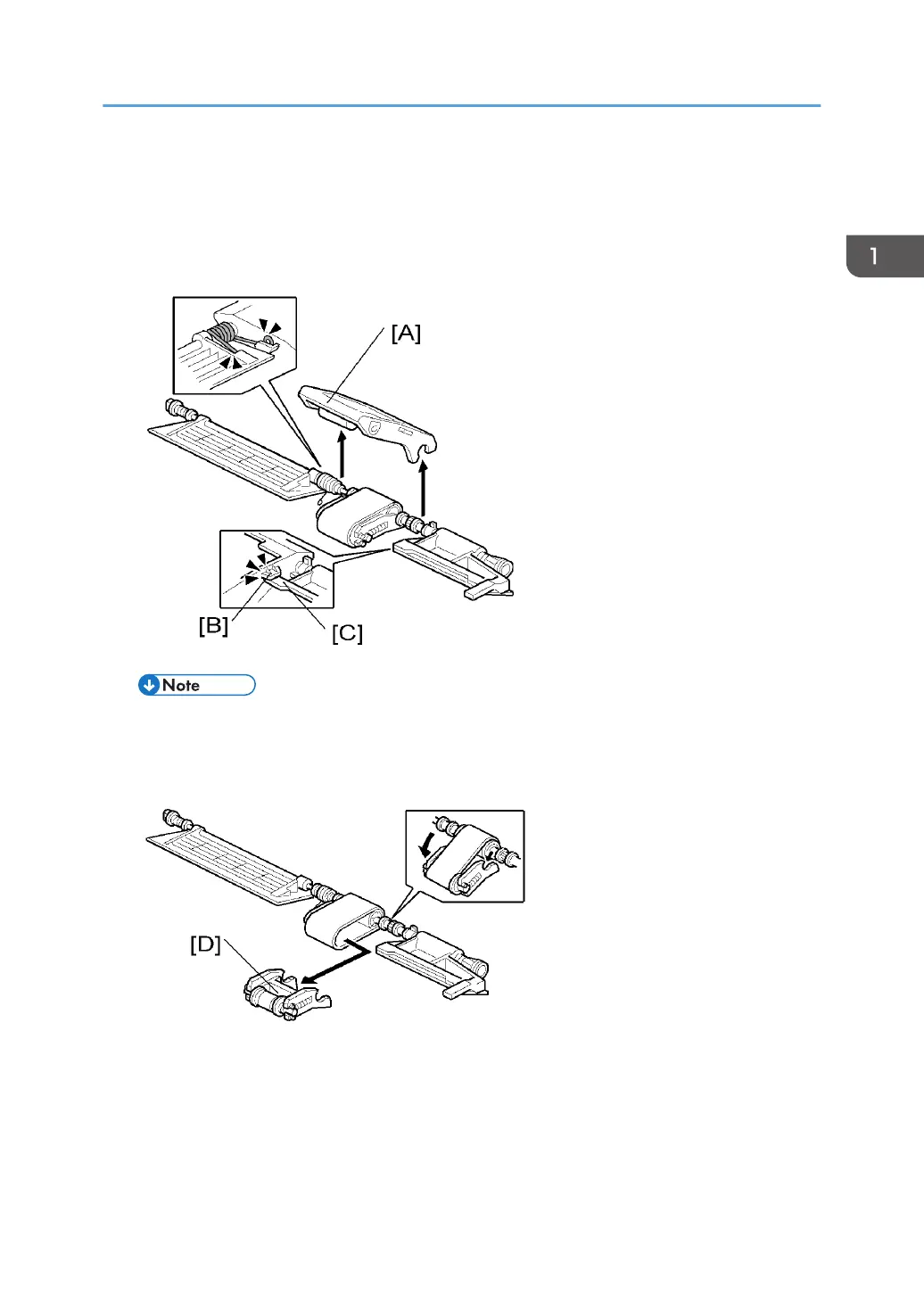

Feed Belt
1. Original feed unit (page 9).
2. Feed belt cover [A] (spring×1).
• When reassembling the feed belt cover, make sure that the projection [B] of the feed belt
cover is on the guide plate rear [C].
3. Belt tension unit [D]
Feed Belt
