RICOH Ri 1000
Procedure for long-term storage
16 / 22
How to check the condition of the installation of the head
protection cover with cleaning solution
1.Install the head protection cover filled with cleaning solution.
See Attaching the head protection cover for installation instructions.
2.Remove the head protection cover about 5 minutes after installation.
See Removing the head protection cover for removal instructions.
3.Perform visual checks.
If the cleaning solution was installed correctly without spilling, the cleaning solution in

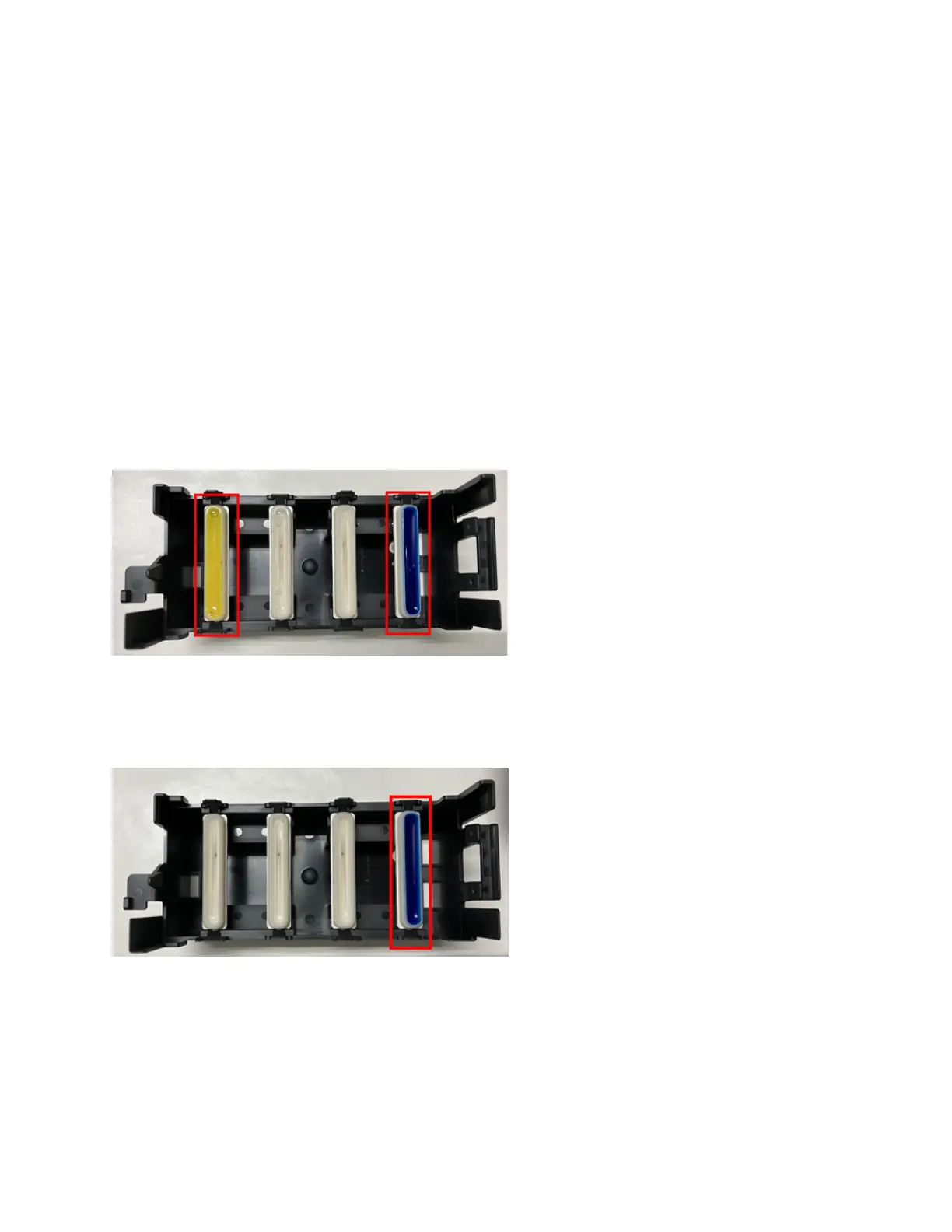

the cap appears discolored white or colored. As shown in the photo below, if the caps
on the left and right ends are discolored, the center cap is also installed correctly.
However, if the cleaning solution in all caps is not discolored, or if only the caps on
either end are discolored, they may not be installed correctly. If this is the case, install
the head protection cover again to check if it is installed correctly.
To Next Page
