INTRODUCTION
4
M**

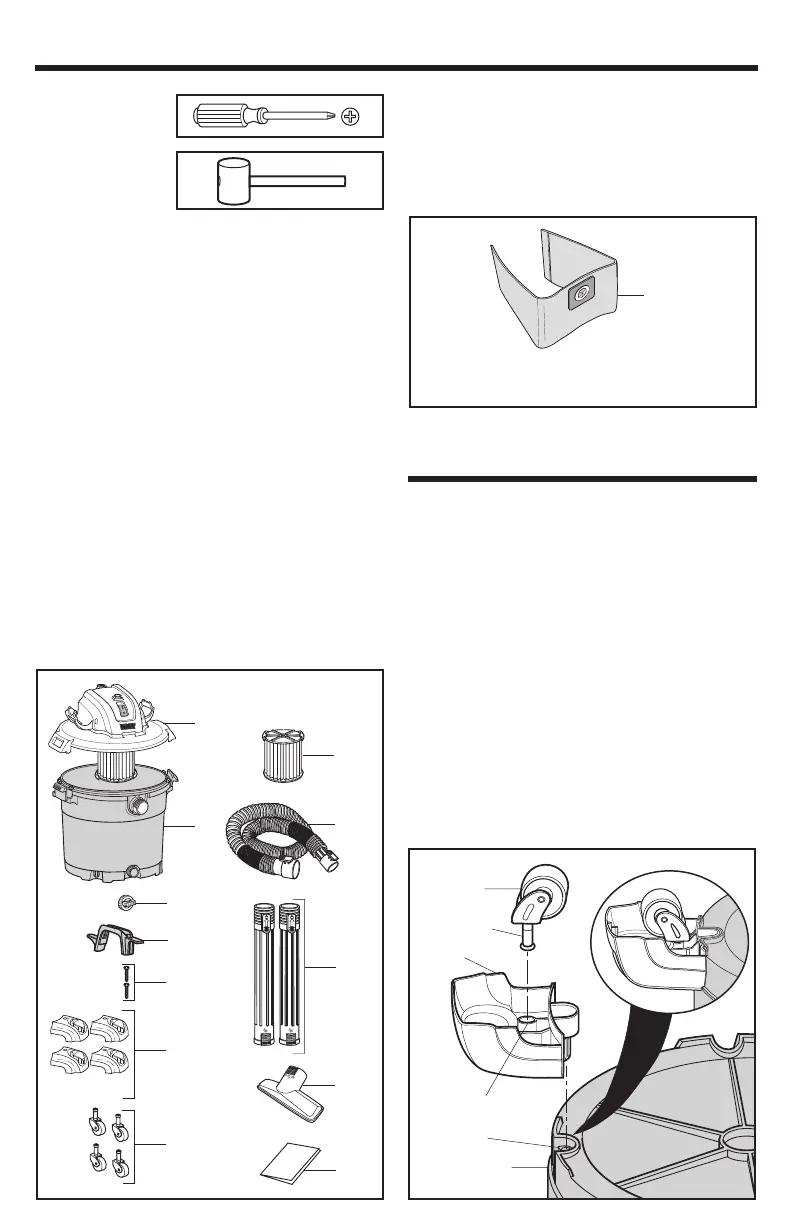

Select Models May Also Include (Fig. 2):
Key Description Qty
M** Disposable Filter Bag .................................................. 1
** Check the Contents List on your Carton for a List of Included
Accessories.
Fig. 2
For installation/removal of filter bag, refer to instructions
printed directly on bag.
F
G
J
K
D
E
D
R
A
I
N
D
R
A
I
N
A*
B*
C*
H*
L
I
UNPACKING
This Product Requires Assembly.
Check all parts from carton against the Carton Contents List.
If any parts are damaged or missing, contact 1-800-4-RIDGID
(US and Canada) or by email at info@ridgidvacs.com.
CARTON CONTENTS LIST (Fig. 1)
Key Description Qty
A* Powerhead Assembly .................................................1
B* Dust Drum Assembly .................................................. 1
C* Drain Cap ......................................................................1
D Carry Handle / Power Cord Wrap ............................... 1
E Pan Head Screw, #10 x 3/4” (19 mm) .......................2
F Caster Foot w/Storage ................................................. 4
G Caster ...........................................................................4
H* Qwik Lock™ Filter ........................................................1
I Tug-A-Long Positive Locking Hose with Dual-Flex ... 1
J Extension Wand ........................................................... 2
K Utility Nozzle .................................................................1
L Owner’s Manual ........................................................... 1
* These parts come preassembled.
Fig. 1
TOOLS NEEDED
Phillips Screwdriver
Rubber Mallet
CASTER/CASTER FOOT ASSEMBLY (Fig. 3)
NOTE: Remove Powerhead Assembly from Dust Drum
prior to assembly of Casters and Caster Feet.
1. Place Caster Foot (F) upside down on the floor.
2. Place the Caster (G) into the Caster Foot (F): Insert the
Caster Stem into Caster Foot Socket.
3. Push on the Caster until the Caster Ball end snaps fully
into the Caster Foot Socket and the Caster swivels
freely. Repeat for other Three Casters and Caster Feet.
4. Turn Dust Drum (B) upside down on floor.
5. Place Caster Foot with Caster over Dust Drum Post and
press firmly in place. Repeat for the other Three Caster/
Caster Foot Assemblies (F & G). If necessary, gently tap
Caster Foot Assembly with a rubber mallet until fully
seated flush with the Drum as shown in image.
6. Turn the Dust Drum (B) upright.
ASSEMBLY
(G)
Caster Stem
Caster Foot
Socket
(B)
Dust Drum
Post
(F)
Fig. 3
