Parameter Setting Method

For this instrument, you can use the knob and touch screen to set parameters. The

common parameter setting methods are as follows:

• Method 1: Some parameters can be adjusted by rotating the knob on the front

panel.

• Method 2: Click or tap the input field of a specified parameter, then a virtual

keypad is displayed. Complete the parameter setting with the keypad.

Input a Value

When setting or modifying a parameter, input an appropriate value with the numeric

keypad.

• Click or tap the value or unit in the numeric keypad to complete the input.

• Rotate the multipurpose knob (1/2) to move the cursor to select the desired

value and unit. Press the knob to confirm the input.

Delete Key

Max. Value

Min. Value

Default Key

Clear Key

UnitTen to the Nth Power Confirmation Key

Cursor

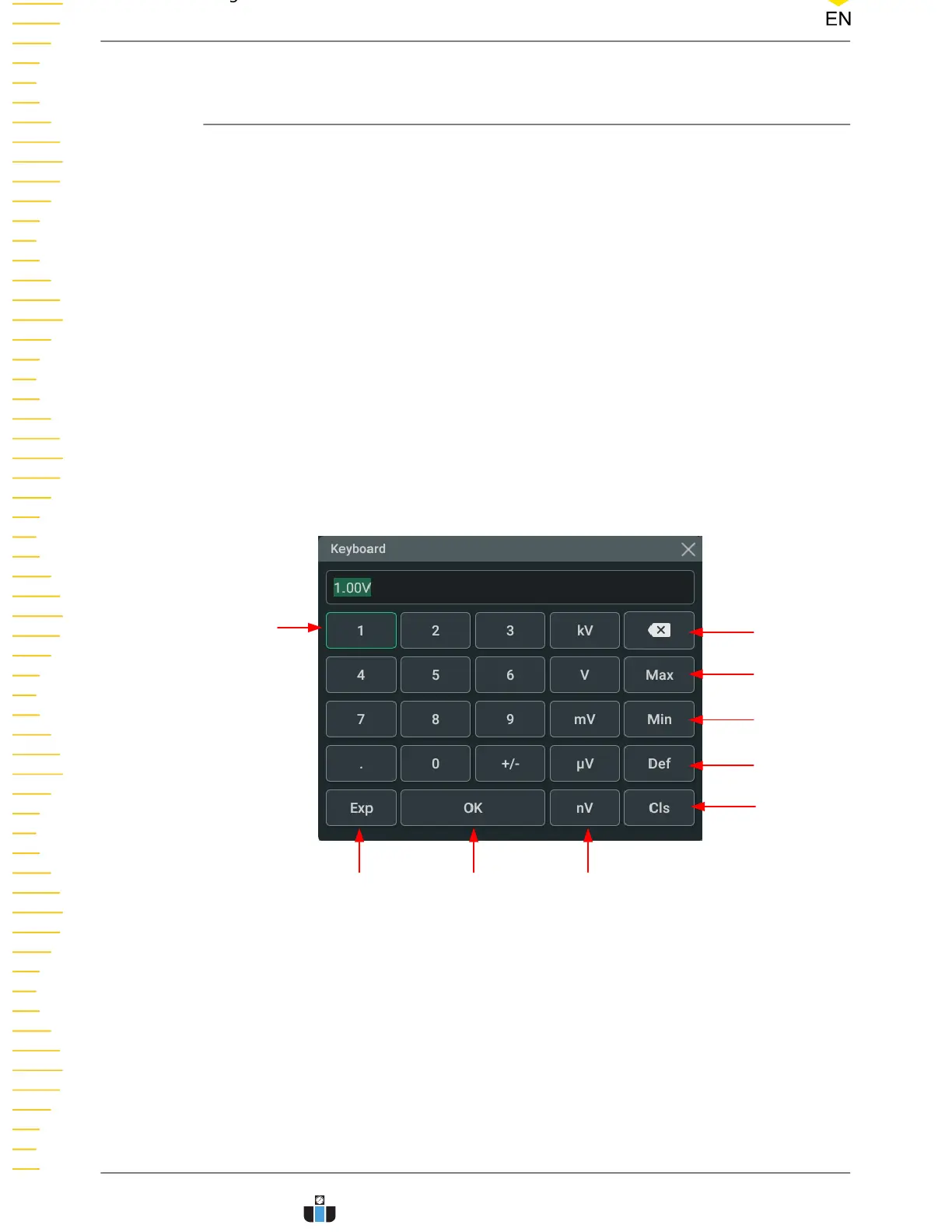

Figure 8.1 Numeric Keypad

After you input all the values and select the desired units, the numeric keypad is

turned off automatically. This indicates that you have completed parameter setting.

Besides, after you have input the values, you can also click or tap "OK" directly to

close the numeric keypad. At this time, the unit of the parameter is the default unit. In

the numeric keypad, you can perform the following operations:

• Modify the parameter value that has been input;
