RIGOL
MSO2000A/DS2000A Quick Guide

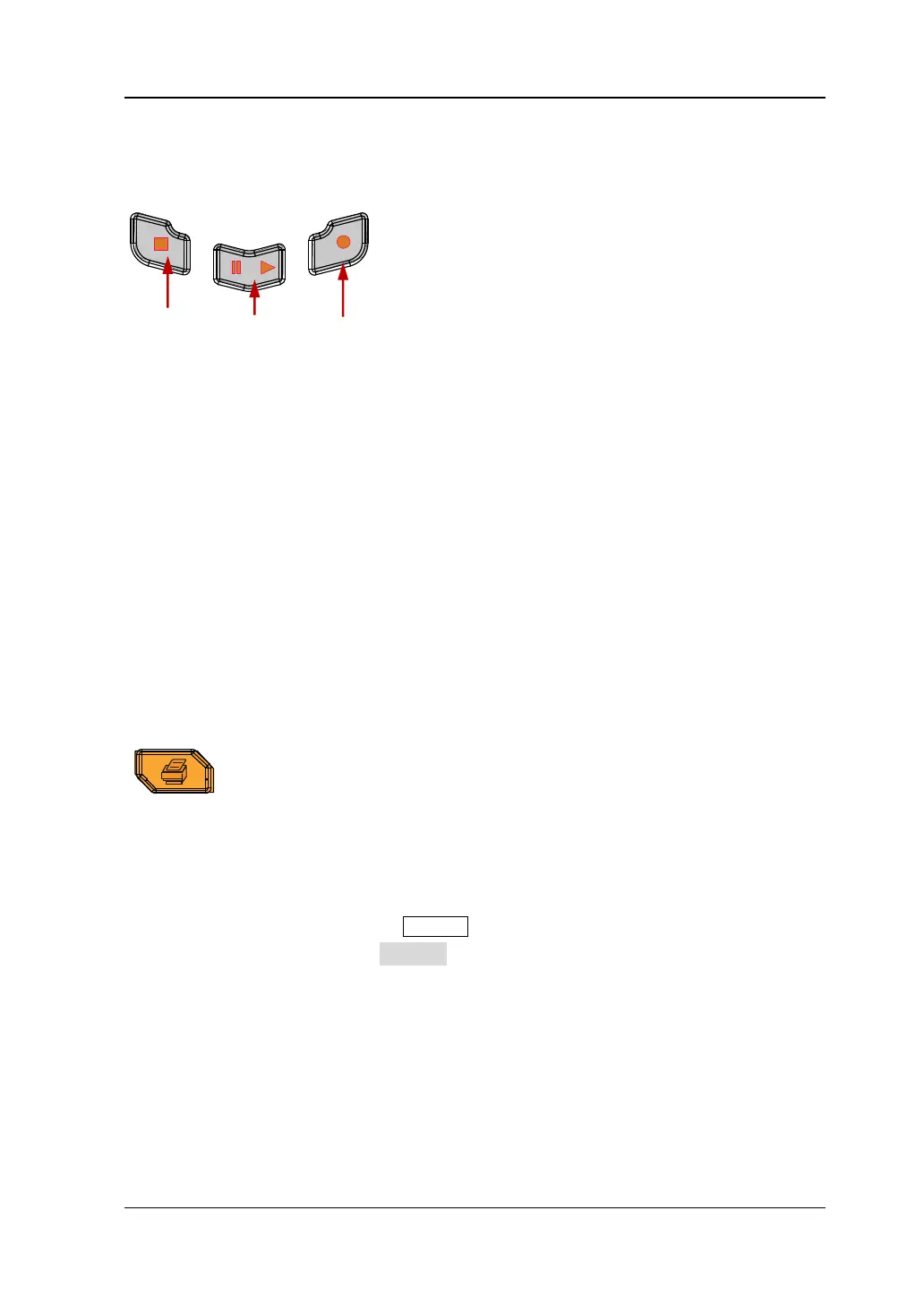

Record
Record: press this key to start recording the waveform. At this moment, the red
backlight of the key will start flashing. Besides, when the record constant on (Open)
is enabled, the backlight will also keep flashing.
Play/Pause: in the stop or pause state, press this key to play back the waveform
and press again to pausethe play. The backlight is illuminated in yellow.
Stop:press this key to stop the waveform being recorded or being played back. The
backlight is illuminated in orange.
Print
Press this key to execute the print function or save the screen in
the USB storage device. If a PictBridge printer is currently
connected and the printer is in idle state, pressing this key will
execute the print function. If no printer but a USB storage device is
currently connected, pressing this key will save the screen to the
USB storage device in ".png" format by default. You can also save
the screen in the specified picture format (bmp, png, jpeg and tiff)
by pressing the Storagetoset the storage type as picture, and then
pressing the Pic Typeto select the desired format. When printer
and USB storage device are connected at the same time, the
printer enjoys higher priority.
