Parameter Setting Method
For the MSO5000 series, you can use the multifunction knob or enable the
touch screen to set the parameters of MSO5000 series. The common parameter
setting methods are as follows:
Method 1:
For the parameters with the sign
, rotate the multifunction knob on the
front panel directly to select the parameter item or modify the parameter value.
Method 2:
For the parameters with the sign
, rotate the multifunction knob on the
front panel and press it down to select the parameter item or modify the
parameter value.
Method 3:
For the parameters with
displayed on the menu, rotate the multifunction
knob on the front panel directly to set the parameter, or press down the
multifunction knob
or the specified menu softkey, and then the numeric
keypad is shown in Figure 15 below.

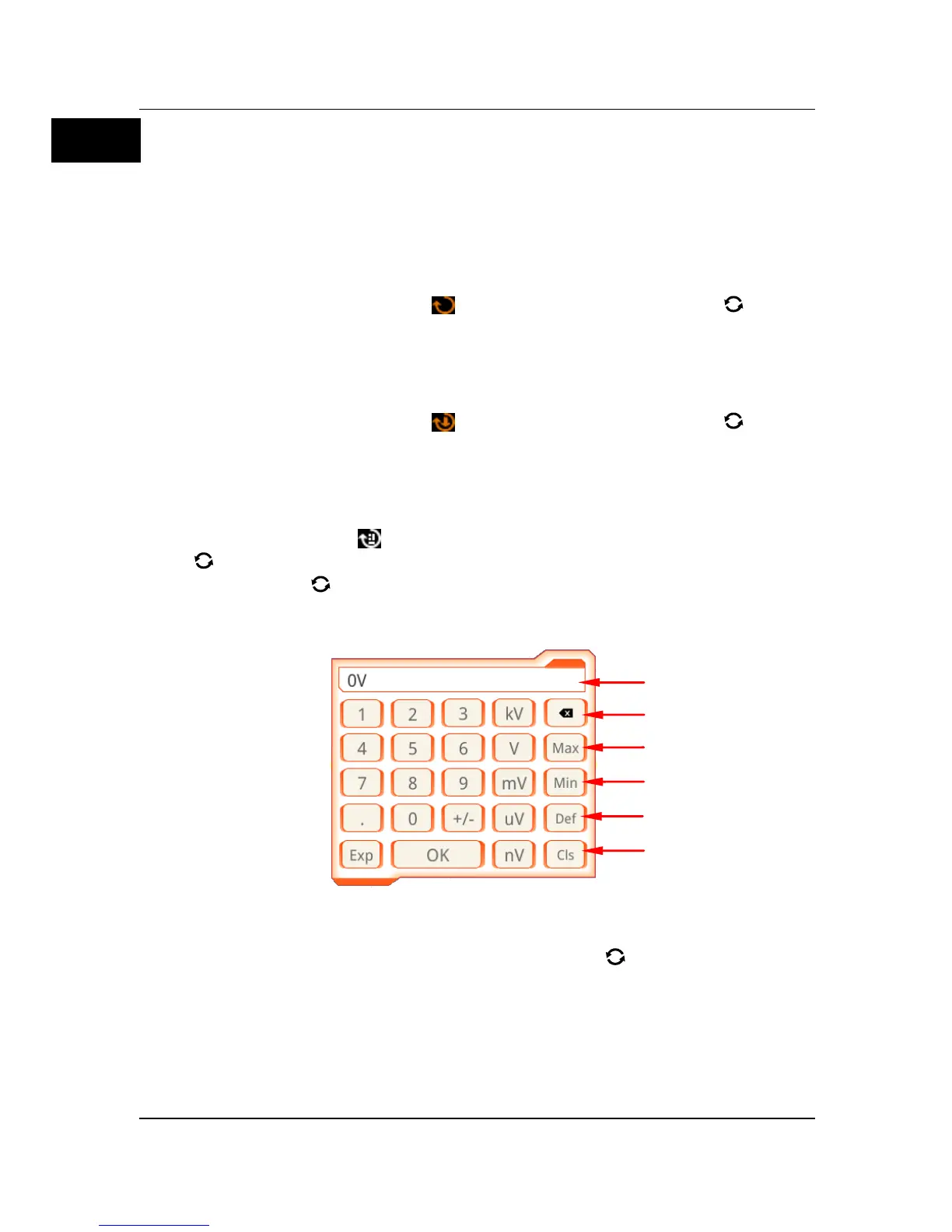

Figure 15 Numeric Keypad
In the numeric keypad, rotate the multifunction knob
to select the
parameter, then press down the knob to select it. Then input the value or the
unit. You can also enable the touch screen and tap the value or unit in the
numeric keypad to input them. After you input all the values and select the
desired units, the numeric keypad is turned off automatically. This indicates
that you have completed parameter setting. Besides, after you have input the
Parameter Input Field
Delete Key
Max. Value Key
Min. Value Key
Default Key
Clear Key
To Next Page
