9

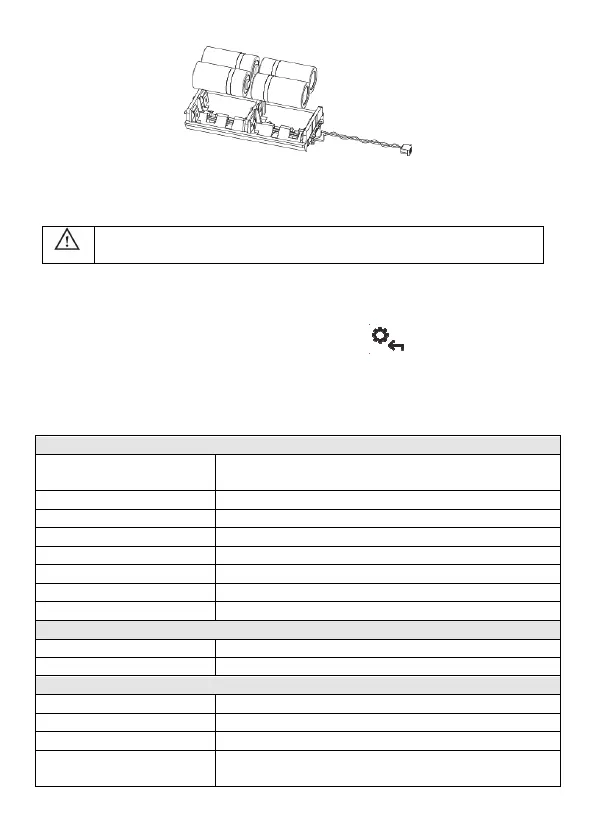

6. Reconnect the battery cable to the battery connector.
7. Close the battery compartment cover, place the keypad back on the wall and secure
the screw to its place.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose
of used batteries according to local regulations.
CHANGING KEYPAD PARAMETERS
Any change performed in the definition of the keypad parameters also requires
updating the keypad. This is performed by pressing the
key for 2 seconds. The
panel will then send an update to the keypad.
TECHNICAL SPECIFICATION
Electrical
Battery Type CR123, 3V Lithium battery (x 4)
RW332KPP8BTA: 3V, 10 Ah flat Lithium battery (x 1)
Current Consumption Standby current 9µA, Max current 150 mA
Power Output 868.65MHz: 10 mW
Frequency 433.92, 868.65, 915 MHz
Modulation Type OOK
Typical Battery Life 3 years
Low battery indication 2.6 V
Proximity RF frequency 13.56 MHz
Physical
Dimension (HxWxD) 178 x 103 x 38 mm (7 x 4.1 x 1.5“)
Weight (Including batteries) 0.435 kg
Environmental
Operating temperature -10°C to 55°C (14°F to 131°F)
Storage temperature -20°C to 60°C (-4°F to 140°F)
Humidity Range Average relative humidity: 75%
Standard Compliance EN 50131-1, EN 50131-3 Grade 2, Environmental Class
II, EN 50131-6 Type C, EN 50131-5-3
