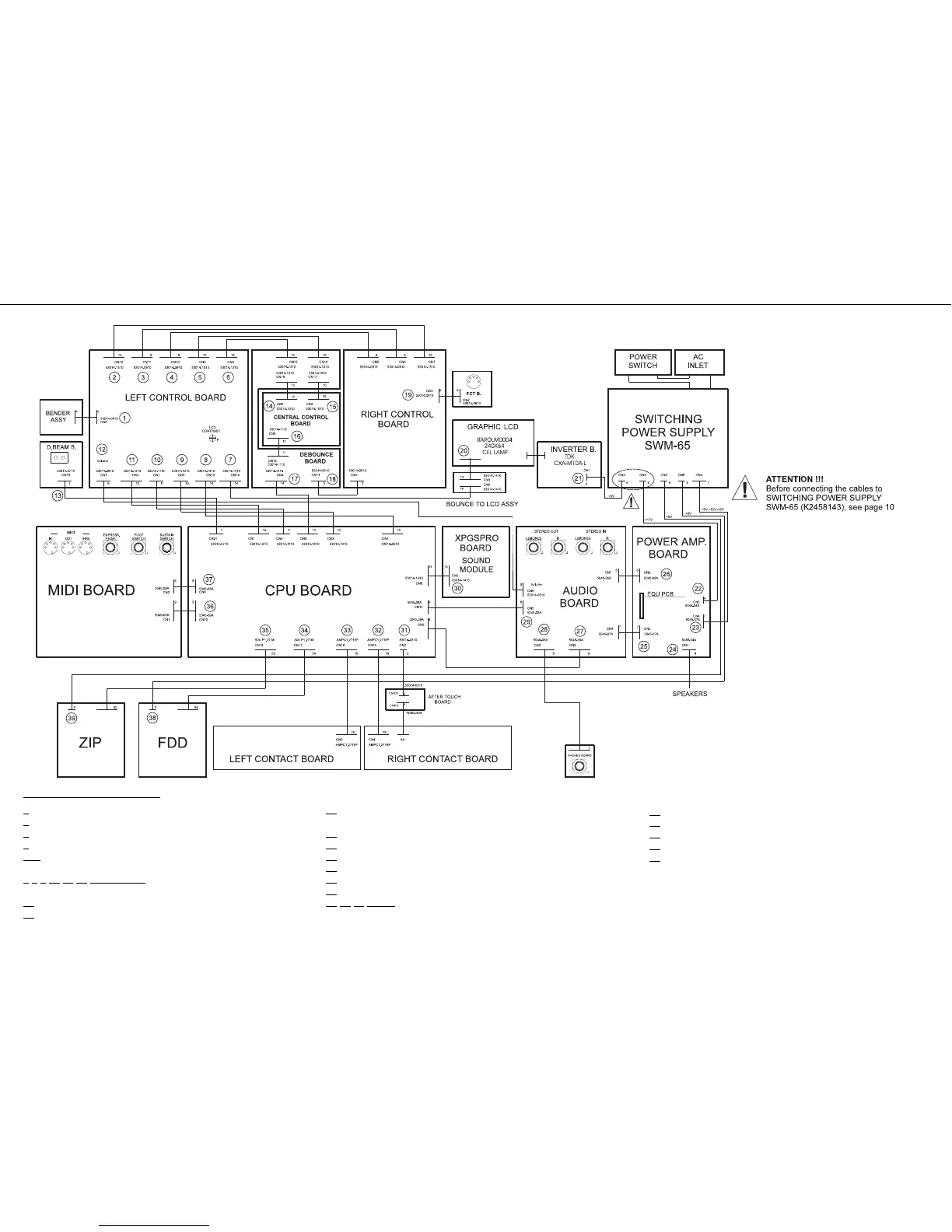

WIRING DIAGRAM
WIRING P
ARTS LIST
1 00783234 BENDER CABLE (4) 2C P.2
2 7700425000 15P CABLE ASSY (50) 2C P.2
3
7700426000 9P CABLE ASSY (6) 2C P.2
4 7700427000 8P CABLE ASSY (6) 2C P.2
5-6:
7700430000 DEBOUNCE WIRING ASSY
7-8-9-10-11-12-13-17-18-19:
7700431000 TOP CBN WIRING ASSY
14
7700422000 13P CABLE ASSY (12) 2C P.2
15
7699413000 10P CABLE ASSY (12) 2C P.2
30
7700123000 14P CABLE ASSY (8) 2C P2
32
7695008001 16P FLAT CABLE (26) 2C
33 K3468186 16P FLAT CABLE (36) 2C
34 K3468198 34P FLAT CABLE (18) 2C
35
K3468197 50P FLAT CABLE (36) 2C
16
7700424000 11P CABLE ASSY (12) 2C P.2
20 7700423000 14P CABLE ASSY (20) 2C P.2
21
K3468156 4P CABLE (90) 2C D/D
22 K3468155 4P CABLE 2N/2V (28) 2C D/R
23 K3468199 7P CABLE (28) 2C D/R
24
K3468160 4P CABLE ASSY (28/106) W/4PC
25 7697239001 7P CABLE ASSY (16) 2C D/R
26
-27-28-29-31:
7700432000 BOTTOM CBN WIRING ASSY
6
EM-2000
Oct, 1998
To Next Page
