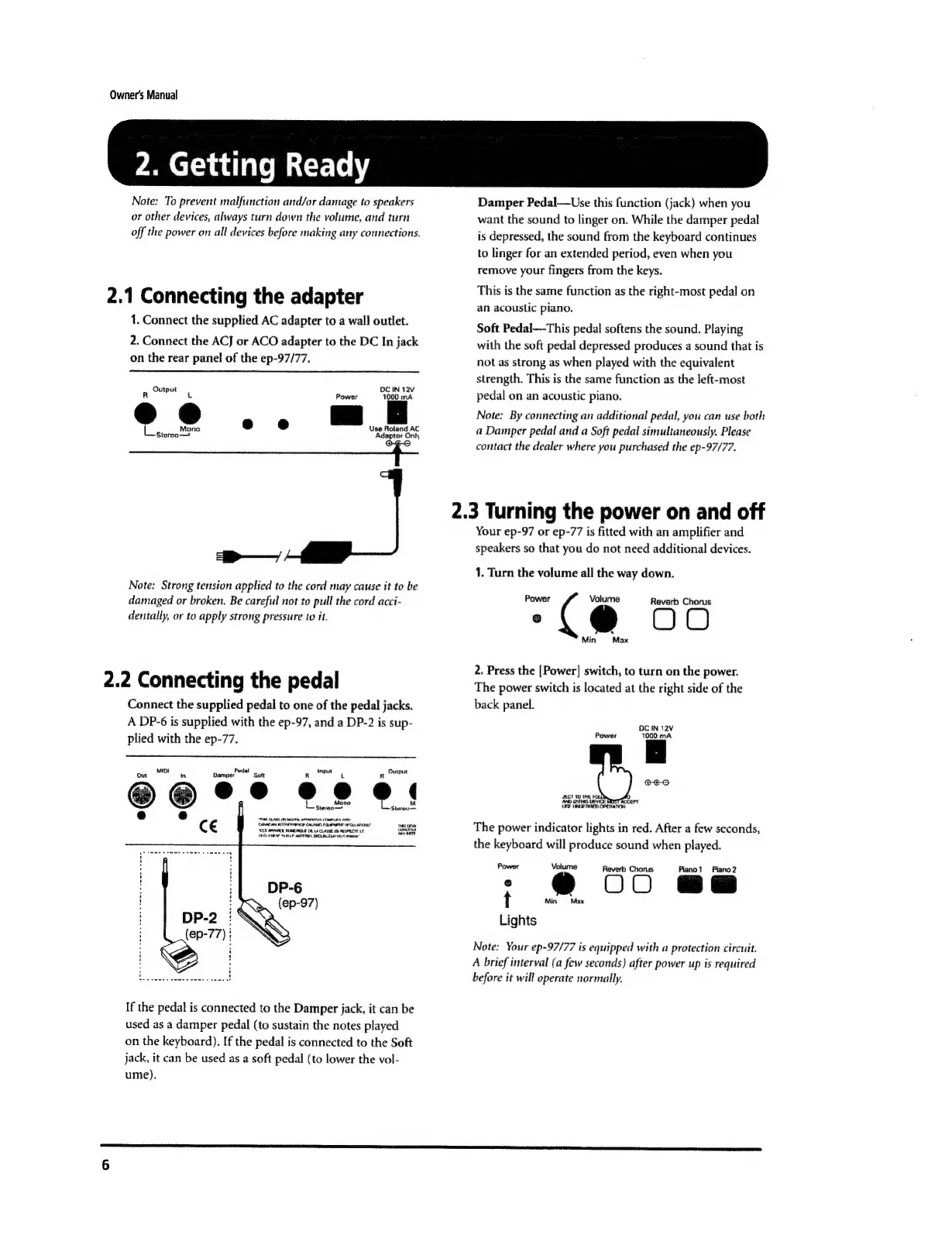

Owner's Manual
2. Getting Ready
Note: To prevent malfunction and/or damage to speakers
or other devices, always turn down the volume, and turn
off the power on all devices before making any connections.
2.1 Connecting the adapter
1. Connect the supplied AC adapter to a wall outlet.
2. Connect the ACJ or ACO adapter to the DC In jack
on the rear panel of the ep-97/77.
Output OC IN 12V
R L Power 1000 mA
L Mona e e Usa Roland AC
Sterco— Adaptor Only
D
Note: Strong tension applied to the cord may cause it to be
damaged or broken. Be careful not to pull the cord acci-
dentally, or to apply strong pressure to it.
2.2 Connecting the pedal
Connect the supplied pedal to one of the pedal jacks.
A DP-6 is supplied with the ep-97, and a DP-2 is sup-
plied with the ep-77.
Pedal U it Output
on M n Damper Sor a oy Rowe
Mono (
(B @ L stereo? U stereot
CE ai
red
If the pedal is connected to the Damper jack, it can be
used as a damper pedal (to sustain the notes played
on the keyboard). If the pedal is connected to the Soft
jack, it can be used as a soft pedal (to lower the vol-
ume).
Damper Pedal—Use this function (jack) when you
want the sound to linger on. While the damper pedal
is depressed, the sound from the keyboard continues
to linger for an extended period, even when you
remove your fingers from the keys.
This is the same function as the right-most pedal on
an acoustic piano.
Soft Pedal—This pedal softens the sound. Playing
with the soft pedal depressed produces a sound that is
not as strong as when played with the equivalent
strength. This is the same function as the left-most
pedal on an acoustic piano.
Note: By connecting an additional pedal, you can use both
a Damper pedal and a Soft pedal simultaneously. Please
contact the dealer where you purchased the ep-97/77.
2.3 Turning the power on and off
Your ep-97 or ep-77 is fitted with an amplifier and
speakers so that you do not need additional devices.
1. Turn the volume all the way down.
Power Volume
le
d
Mi
in Max
Reverb Chorus
2. Press the [Power] switch, to turn on the power.
The power switch is located at the right side of the
back panel.
OC IN 12V
Power 1000 mA
eeo
eC! ID HE
ACCEPT
USF UNDESIRED OPERARON
The power indicator lights in red. After a few seconds,
the keyboard will produce sound when played.
Power Volume Reverb Chorus Pianol Piano2
- @ 06 ae
Lights
Note: Your ep-97/77 is equipped with a protection circuit.
A brief interval (a few seconds) after power up is required
before it will operate normally.
