Roland EXR-5 Service Note

Oct.2003
6

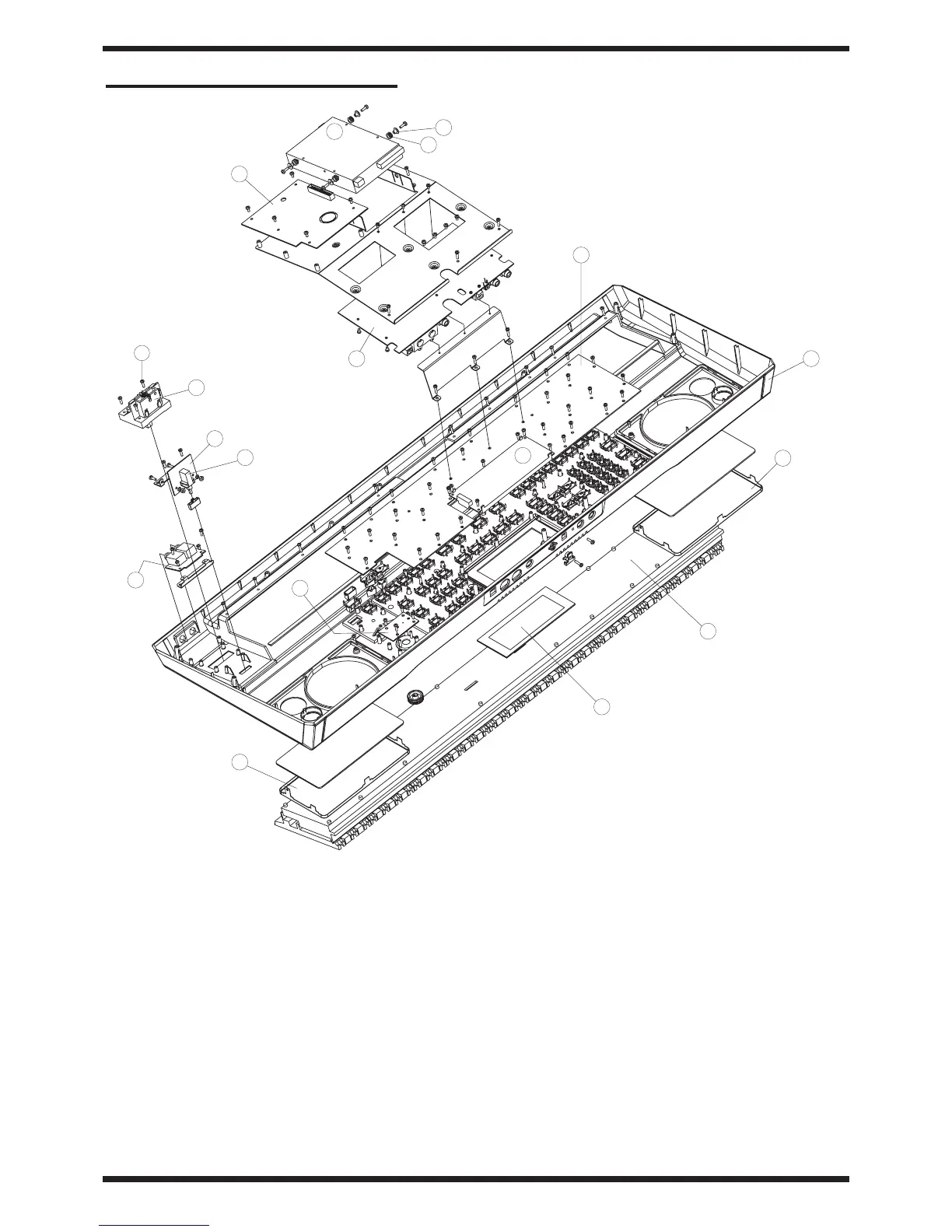

EXPLODED VIEW - TOP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
A
No.
Part No. Description
1
J240910601
22265242
FLOPPY D.DRIVER JU-257A167P
RUBBER GUIDE BUSHING
2
3
7775301000 CPU ASSY (MICRO ROM) EXR-5
4
22165134
BRASS BUSHING
5
7626921001 61 KEY KEYBOARD TP/7BA 2ND
6
7
7775306000 C.S. SWITCH ASSY EXR-5
8
7775302000 JACK SOCKET ASSY EXR-5
9
10
11
7775315000
LCD ASSY+CONNECT. EXR-5
VARN.+SILK.TOP CBNT EXR-5
7775309000
12
7775310000 SILKSCREENED PLEXIGLASS EXR-5/3
13
14
RIGHT/LEFT LOUDSPEAKER GRILL EXR-5
PUSH SWITCH SDKLA1-B
K2248180
1676512
7775304000
HEADPHONE PCB ASSY EXR-5
7775303000
7775305000
CONTROL PCB ASSY EXR-5
VOLUME PCB ASSY EXR-5
15
16
K3278112
PITCH BENDER SW+CABLE (36)+1C.
A
B
E
C
F
D
G
J2289193
J2289125
J2289113
J2289108
J2139102
J2289101
J2289130
(SCREW)
SELF LOCK. SCREW M3x6 TC TC H.6
SCREW 2,9 x10 TC TC PR TROP
NUT 3MA H.3
SELF LOCK. SCREW M3x10 TCTC H.6
TOOTHED WASHER I/D 3
SELF TAP. SCREW 2,9x6 TC TC
SCREW 2,9x13 TC TC PR TROP
