Roland GT3 User Manual

GT-3 Feb. 1999
2
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V

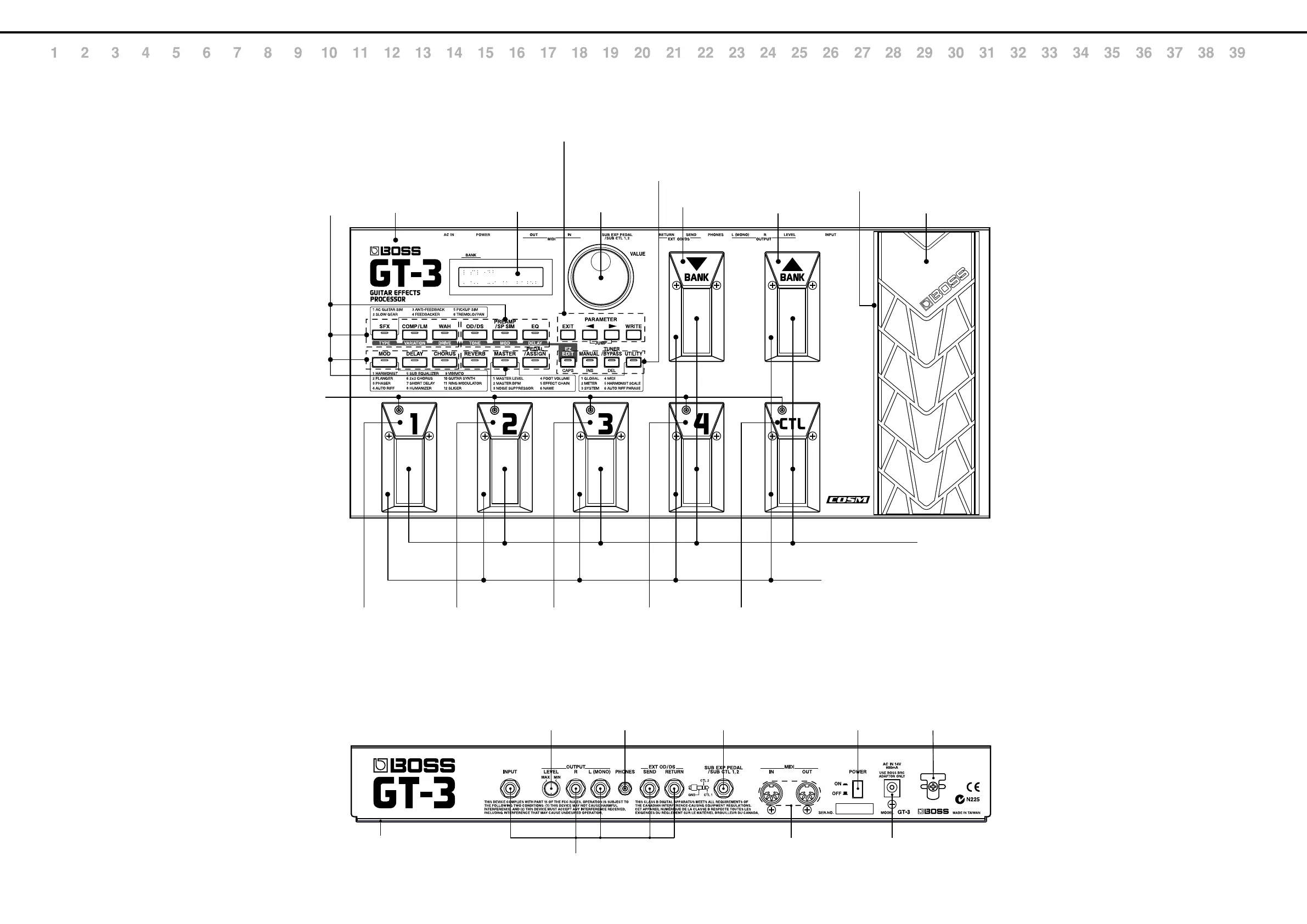

PANEL LAYOUT
FRONT VIEW
REAR VIEW
PEDAL SWITCH PEDAL
(G2187602)
SUPPORT SPRING
(G2177103)
PEDAL FOOT
(G2357109)
Switch
SKQKAH
(13129778)
Keytop
D S-KEYTOP MD3H BLK
(22495279)
LED
L-312LRD
(F5029117)
Switch
SKQKAB
(01780101)
TOP COVER
(G2017129)
LCD Cover
DISPLAY COVER
(G2567104)
LCD
WD-C1602R-2BLYC
(F5029404)
Keytop
D S-KEYTOP SX4H BLK
(00904256)
Switch
SKQKAB
(01780101)
Knob
D R-KNOB L BLK
(22485303)
Encoder
EVQ VEM F01 24B
(01013223)
Keytop
D S-KEYTOP SD4H BLK
(00900178)
LED
L-312LRD
(F5029117)
Switch
SKQKAB
(01780101)
PEDAL LABEL (DOWN)
(G2217709)
PEDAL LABEL (UP)
(G2217711)
VR PEDAL
(G2187517)
VR PLATE
(G2357112)
LED
GL-3PR8
(15029281)
Spacer
SPACER 3*6*10
(H2369401)
PEDAL LABEL (1)
(G2217705)
PEDAL LABEL (2)
(G2217706)
PEDAL LABEL (3)
(G2217707)
PEDAL LABEL (4)
(G2217708)
PEDAL LABEL (CTL)
(G2217710)
PEDAL ESCUTCHEON
(G2227301)
Jack
HEC0740-010010
(13449728)
Knob
P R-KNOB SF-A BLK/LCG
(01340412)
VR
RK09K12A0 (10kA x2)
(01676523)
Jack
HSJ0857-01-1210
(13449440)
Jack
HTJ-064-12D
(13449150MF)
Knob
G S-BUTTON S1H BLK
(12499175)
Switch
SDKLA1-B
(01676512)
Cord Hook
CORD HOOK 236-712
(22360712)
Jack
HTJ-064-12I
(13449155MF)
BOTTOM COVER
(G2817131)
Jack
YKF51-5054
(13429825)
/背面図
/正面図
/パネル配置図

Roland GT3 Specifications

General

Brand	Roland
Model	GT3
Category	Music Pedal
Language	English
