Mar. 2006 HPD-10

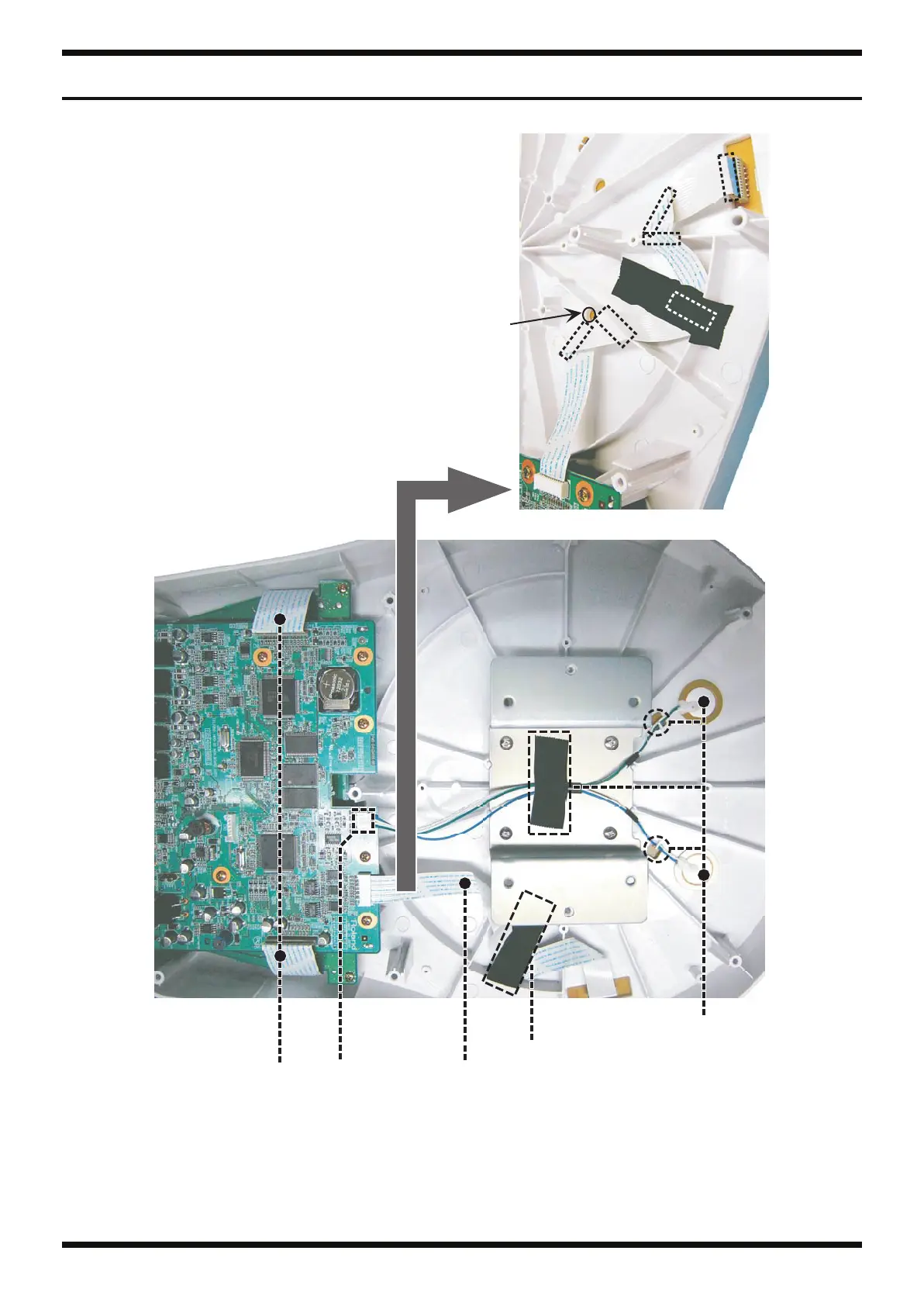

Affix the BAN CARD to the
TOP CASE with acetate tape.
ACETATE TAPE NITTO
#5 BLACK W20MM 30M 20P
(40232123)
- Affix up to the stamped circles
on the TOP CASE.
- Hook wiring in TOP CASE hooks
to secure the wiring.
- Affix the wiring to the STAY HOLDER
with acetate tape.
ACETATE TAPE NITTO
#5 BLACK W20MM 30M 20P
(40232123)
Bend at six points along the TOP CASE.
Take care not to cover the round holes in the TOP CASE.
CN6 on MAIN BOARD to
CN2 on PANEL BOARD with
BNCD-P=1.00-K-28-60
(03671856)
CN3 on MAIN BOARD to
PIEZO ASSY (73129534)
CN4 on MAIN BOARD to
CN1 on SENSOR BOARD with
BNCD-P=1.25-K-12-240
(04129578)
To Next Page
