6

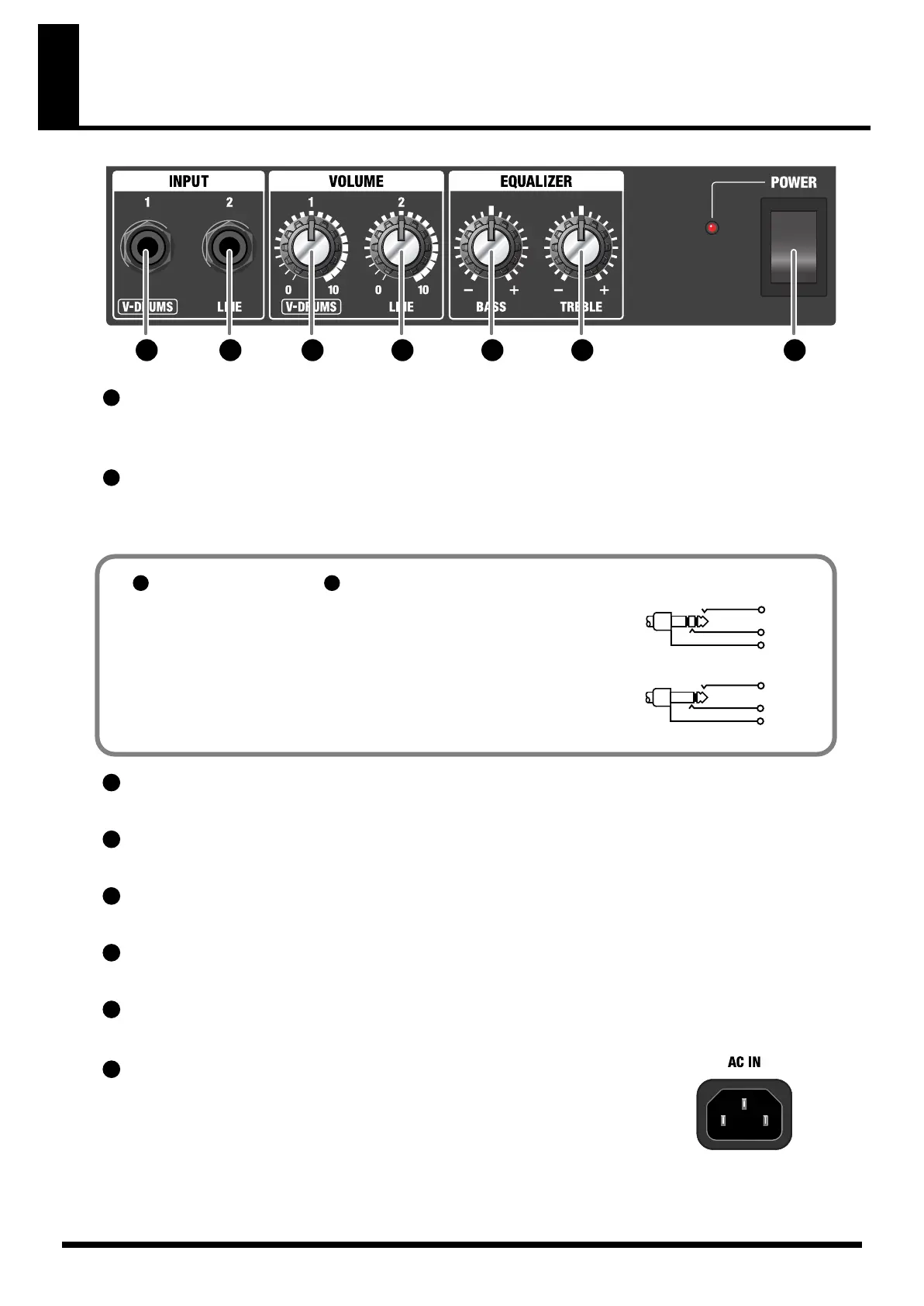

Panel Descriptions
fig.panel
V-DRUMS Input Jack
Connect the percussion sound module to this jack.
* Provides tonal quality perfectly matched to Roland’s “V-Drums” percussion sound modules.
LINE Input Jack
You can connect a CD player or other kind of device and have it play along with your drums.
* Provides tonal quality suited to Hi-Fi audio.
V-DRUMS VOLUME KNOB
This adjusts the volume of the device connected to the
V-DRUMS Input Jack
.
LINE VOLUME KNOB
This adjusts the volume of the device connected to the
LINE Input Jack
.
BASS KNOB
Adjusts the level of the Low frequency.
TREBLE KNOB
Adjusts the level of the High frequency.
POWER SWITCH
This switch turns the power on/off. When the power is on, the indicator will be lit.
ffig.ac
AC INLET
Connect the included Power cord here. Plug it firmly in, so that the cable does not
accidentally become disconnected.
* The input sensitivity of the PM-10 has been set somewhat high, to allow use with percussion sound modules having
relatively low output levels. But if you connect a sound module with a high output level (such as the TD series), distortion
may occur if you turn the volume level up too much. Be careful.
21 43 5 6 7
1
2
V-DRUMS Input Jack / LINE Input Jack
fig.XLR/TRSJack
922
This instrument is equipped with stereo phone type jacks, and accepts both mono
and stereo.
Make connections after first checking the wiring diagrams of other equipment you
intend to connect.
* This accepts 1/4” stereo phone plug. However, the speaker is mono.
1 2
3
4
5
6
7
8
