Roland R-8M User Manual

(D
PATCH
I

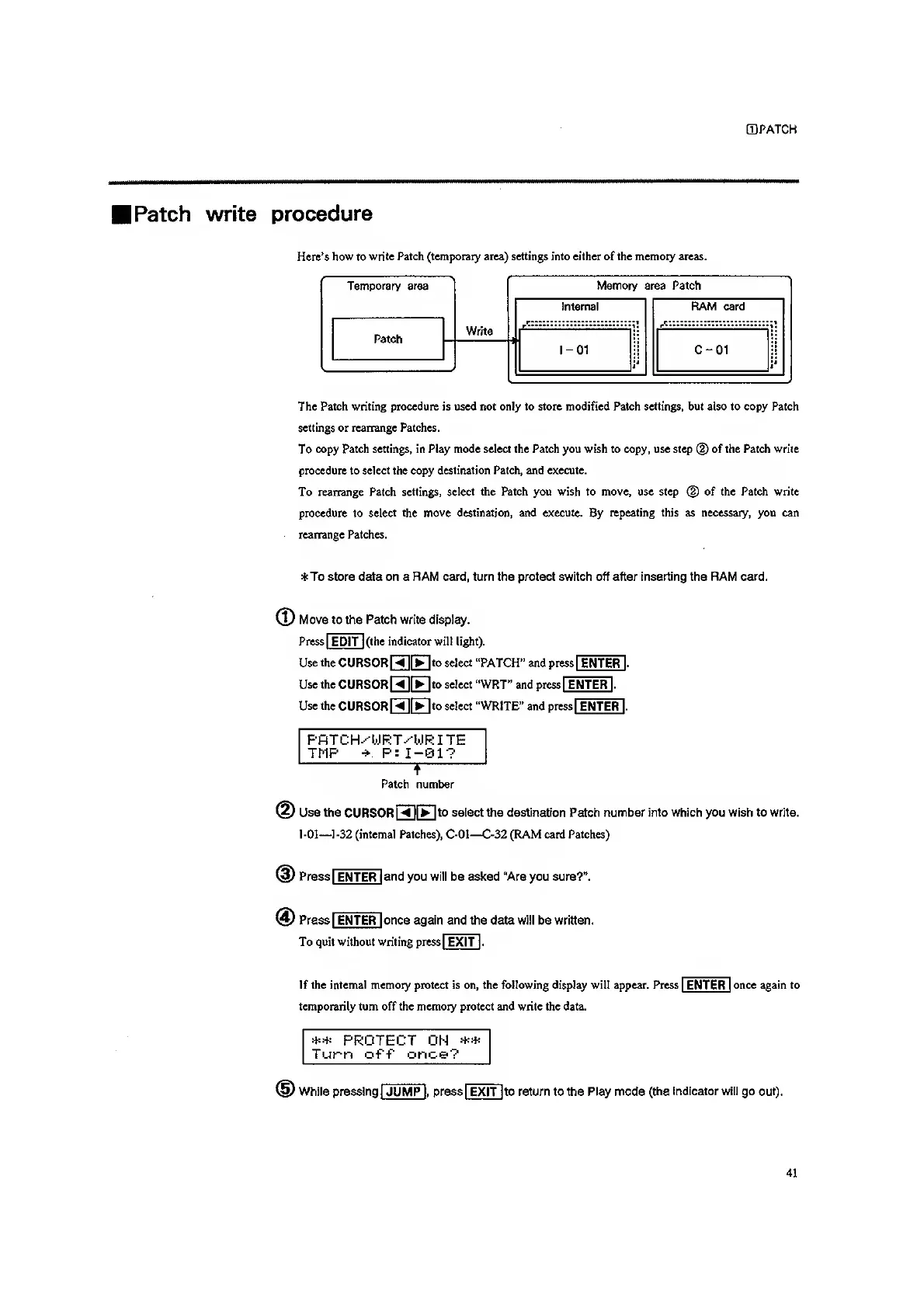

Patch
write
procedure
Here's
how
to
write Patch (temporary area) settings into either of the memoiy areas.
Temporary area
Write
Memory area Patch
Internal RAM card
Patch
i'
C-01
j'
1-01
—^
'
'1
The Patch writing procedure is used not only to store modified Patch settings, but also to copy Patch
settings or rearrange Patches.
To
copy Patch settings, in Play mode select the Patch you wish to copy, use step (5) of the Patch
write
procedure to
select
the copy
destination Patch, and execute.
To rearrange Patch
settings, select the Patch you wish to move, use step (2) of the Patch write
procedure to
select the move destination, and execute.
By
repeating this as necessaiy, you can
rearrange Patches.
*To Store data on a RAM card, turn the protect switch off after
inserting
the RAM
card.
CD
Move to the Patch write display.
Press
|EDlfl
(the indicator will light).
Use the
CURSOR
r<1[F1
to select
"PATCH" and press
|
ENTER
|
.
Use the
CURSORHHto
select "WRT"
and press
I
ENTER
|
.
Use the
CURSOR
[^[l
to
select
"WRITE"
and press
lENTERJ
PfiTCH-^WRT^WRITE
TMP
-*
P:
1-01?
Patch numtwr
Use the
CURSOR
[^[3*°
select tfie destination Patch number into which you wish to write.
I-Ol—
1-32
(internal Patches),
C-01—
C-32
(RAM card Patches)
Press lENTERj and you will be asked "Are you sure?".
®
Press
I
ENTER
I
once again and the data will be written.
To quit without writing press!
EXIT j.
If the internal memoiy protect is on, the following display will appear. Press
[
ENTER
|
once again to
temporarily turn off the memory protect and write the data.
**
PROTECT OH
**
Turn off once?
'
While pressing
|
JUMP
|,
press lEXITjto return to the Play mode
(theindicatorwillgoout).
41
