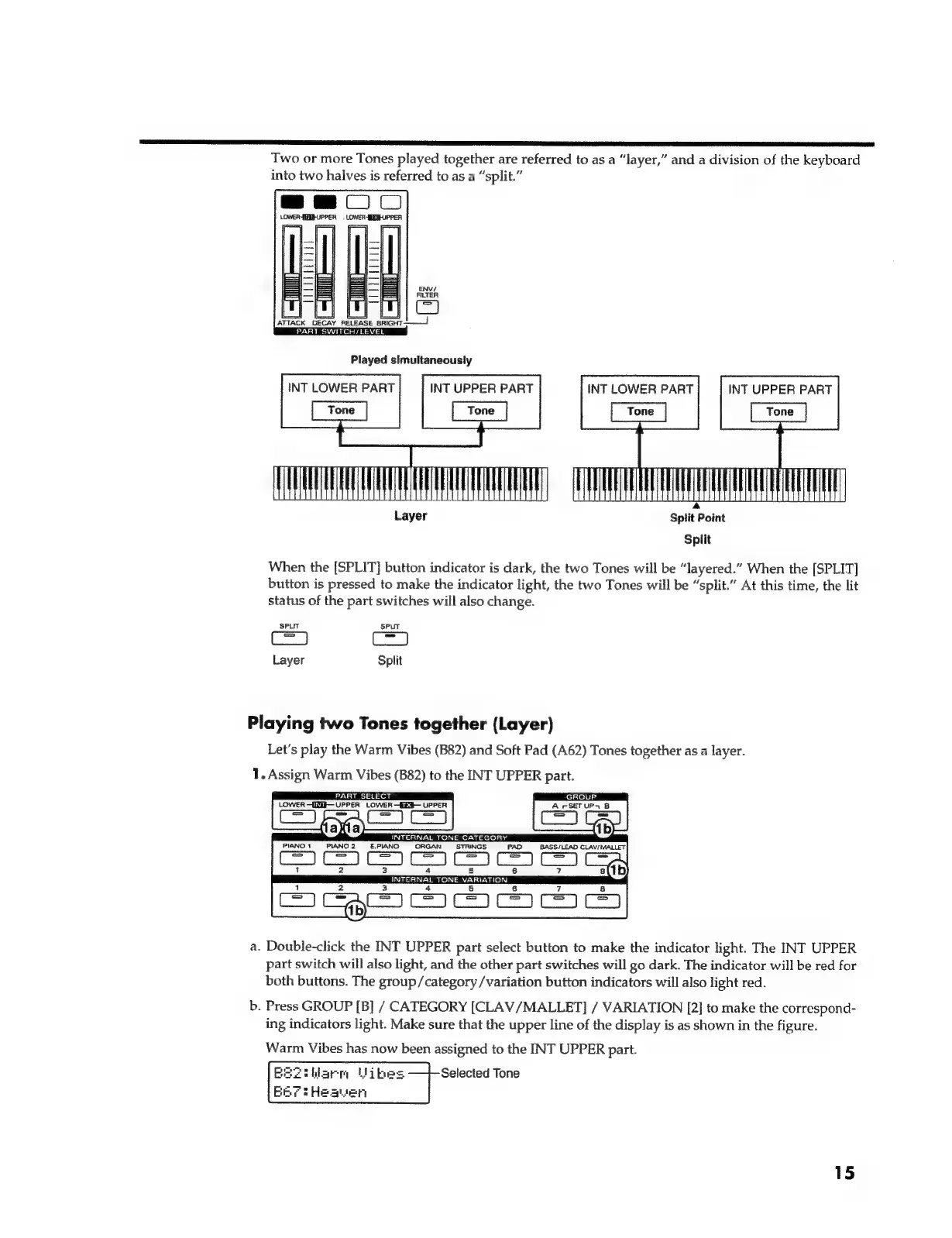

Two or more Tones played together are referred to as a “layer,” and a division of the keyboard
into two halves is referred to as a “split.”
Seo
LOWER4ERFUPPER «= LOWER-SIESHUPPER
A
Split Point
Split
When the [SPLIT] button indicator is dark, the two Tones will be “layered.” When the [SPLIT]
button is pressed to make the indicator light, the two Tones will be “split.” At this time, the lit
status of the part switches will also change.
SPLIT SPUT
Layer Split
Playing two Tones together (Layer)
Let’s play the Warm Vibes (B82) and Soft Pad (A62) Tones together as a layer.
1. Assign Warm Vibes (B82) to the INT UPPER part.
feisiel¥iid
PART SELECT
LOWER IR UPPER LOWER—€E@— UPPER
INTERNAL TONE CATEGORY
PIANO 1 PIANO 2 E.PIANO ORGAN STRINGS PAD BASS/LEAD CLAV/MALLET
3 4 5 6 7 8 (1b)
INTERNAL TONE VARIATION
3 4 5 6 7 8
Seta ees
a. Double-click the INT UPPER part select button to make the indicator light. The INT UPPER
part switch will also light, and the other part switches will go dark. The indicator will be red for
both buttons. The group/category /variation button indicators will also light red.
b. Press GROUP [B] / CATEGORY [CLAV/MALLET] / VARIATION [2] to make the correspond-
ing indicators light. Make sure that the upper line of the display is as shown in the figure.
Warm Vibes has now been assigned to the INT UPPER part.
1
feeehlarm Ulbes Selected Tone
Bert Hesweri
15

Roland RD-600 Specifications

General

Type	Digital Piano
Polyphony	64 voices
MIDI	In, Out, Thru
Weight	24.5 kg
Power Consumption	15W
Keyboard	88 keys (weighted hammer action)
Effects	Reverb, Chorus
Display	LCD
Outputs	L/Mono, R, Headphone
Inputs	Damper Pedal, Assignable Pedal
Power Supply	AC 117 V, AC 230 V, AC 240 V
