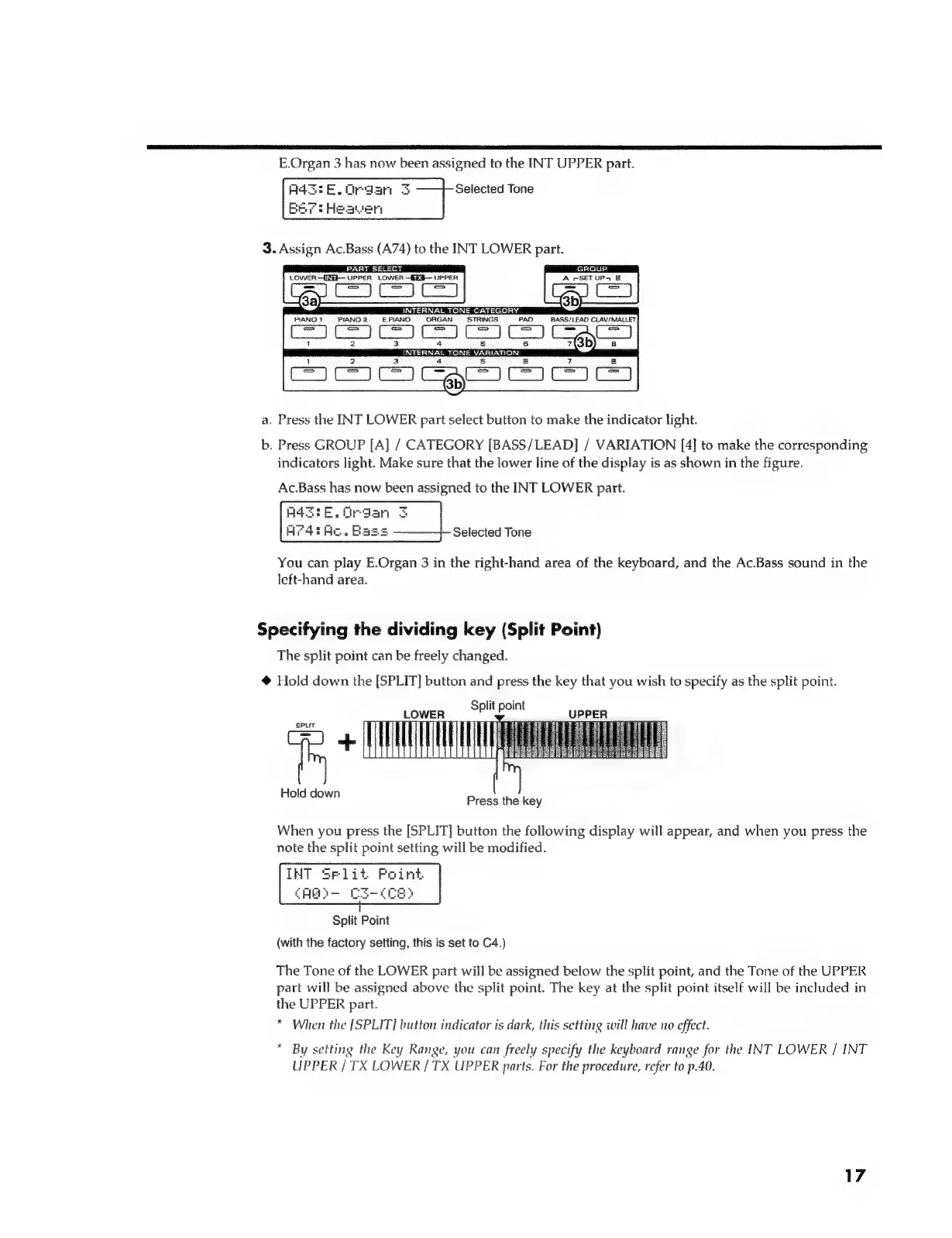

E.Organ 3 has now been assigned to the INT UPPER part.
A4S:FL Organ 3 Selected Tone
Bey t Heawers
3. Assign Ac.Bass (A74) to the INT LOWER part.
PART SELECT
LOWER —-~MMIR— UPPER LOWER—SE@— UPPER
ro ae |B a a
INTERNAL TONE CATEGORY
GROUP
A cSETUP4 B
PIANO 1 PIANO 2 E.PIANO ORGAN STRINGS PAD BASS/LEAD CLAV/MALLET|
Cad Baie Celt
1 2 3 4 5 6 7 Bb)
INTERNAL TONE VARIATION
1 2 3 4 5 6 7 8
Ba ee ‘ep Seca ied ca
a. Press the INT LOWER part select button to make the indicator light.
b. Press GROUP [A] / CATEGORY [BASS/LEAD] / VARIATION [4] to make the corresponding
indicators light. Make sure that the lower line of the display is as shown in the figure.
Ac.Bass has now been assigned to the INT LOWER part.
AASIE. Organ 3
ArédiAc. Bass
You can play E.Organ 3 in the right-hand area of the keyboard, and the Ac.Bass sound in the
left-hand area.
Specifying the dividing key (Split Point)
The split point can be freely changed.
@ Hold down the [SPLIT] button and press the key that you wish to specify as the split point.
Hold
down
Press
the
key
When you press the [SPLIT] button the following display will appear, and when you press the
note the split point setting will be modified.
Split Point
(with the factory setting, this is set to C4.)
The Tone of the LOWER part will be assigned below the split point, and the Tone of the UPPER
part will be assigned above the split point. The key at the split point itsel€ will be included in
the UPPER part.
* When the [SPLIT] button indicator is dark, this setting will have no effect.
* By setting the Key Range, you can freely specify the keyboard range for the INT LOWER / INT
UPPER / TX LOWER / TX UPPER parts. For the procedure, refer to p.40.
17

Roland RD-600 Specifications

General

Type	Digital Piano
Polyphony	64 voices
MIDI	In, Out, Thru
Weight	24.5 kg
Power Consumption	15W
Keyboard	88 keys (weighted hammer action)
Effects	Reverb, Chorus
Display	LCD
Outputs	L/Mono, R, Headphone
Inputs	Damper Pedal, Assignable Pedal
Power Supply	AC 117 V, AC 230 V, AC 240 V
