Roland SH-5 Service Manual

1976-10-30 SH-5

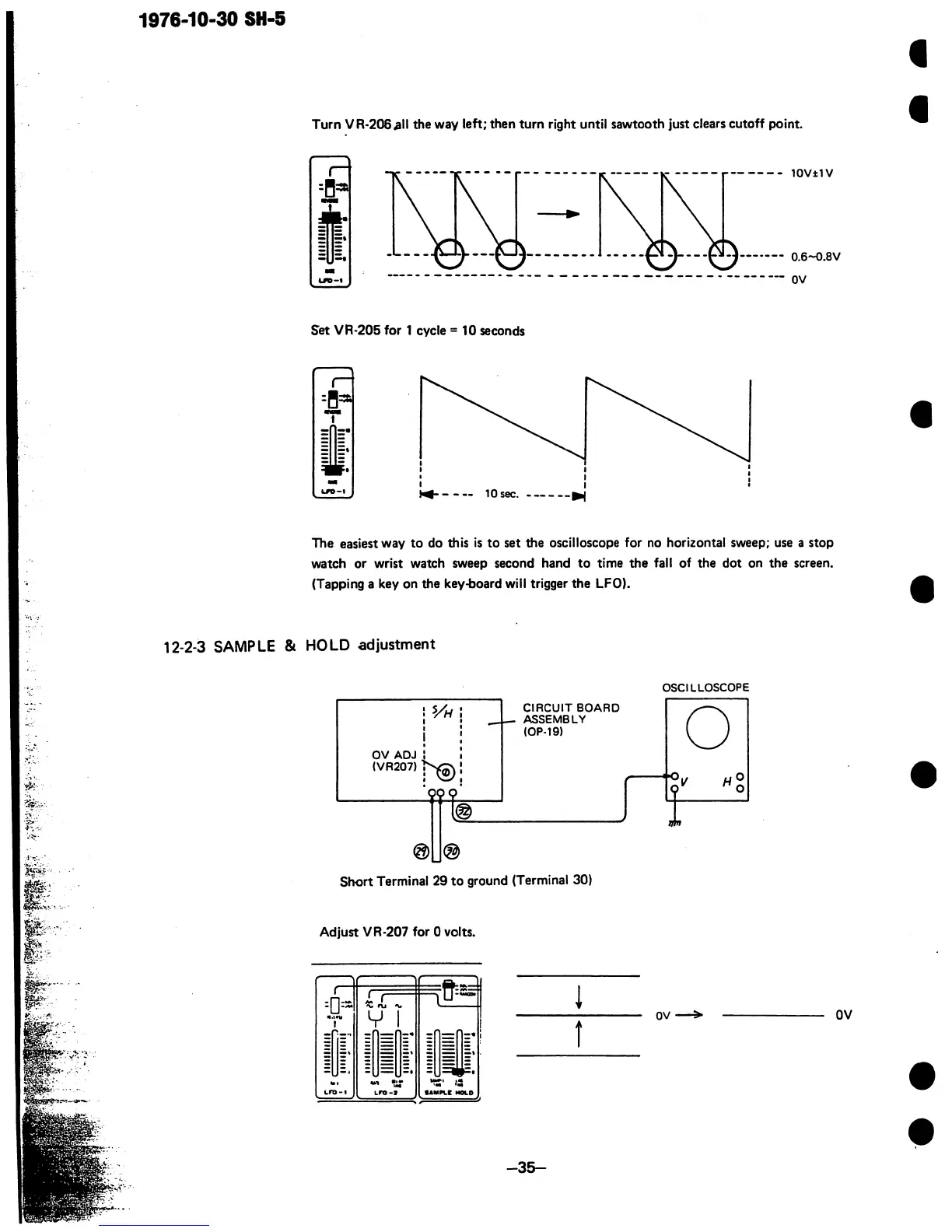

Turn VR-2O63II the way left; then turn right until sawtooth just clears cutoff point.
10V±1V
Set VR-205 for 1 cycle = 10 seconds
10 sec.
The easiest way to do this is to set the oscilloscope for no horizontal sweep; use a stop
watch or wrist watch sweep second hand to time the fall of the dot on the screen.
(Tapping a key on the key-board will trigger the LFO).
12-2-3 SAMPLE & HOLD adjustment
OSCILLOSCOPE
If
OV ADJ J
(VR207) >
00
CIRCUIT BOARD
ASSEMBLY
(OP-19)
Short Terminal 29 to ground (Terminal 30)
Adjust VR-207 for 0 volts.
-35-
OV ■
OV
