Roland SH-5 Service Manual

1976-10-30 SH-5

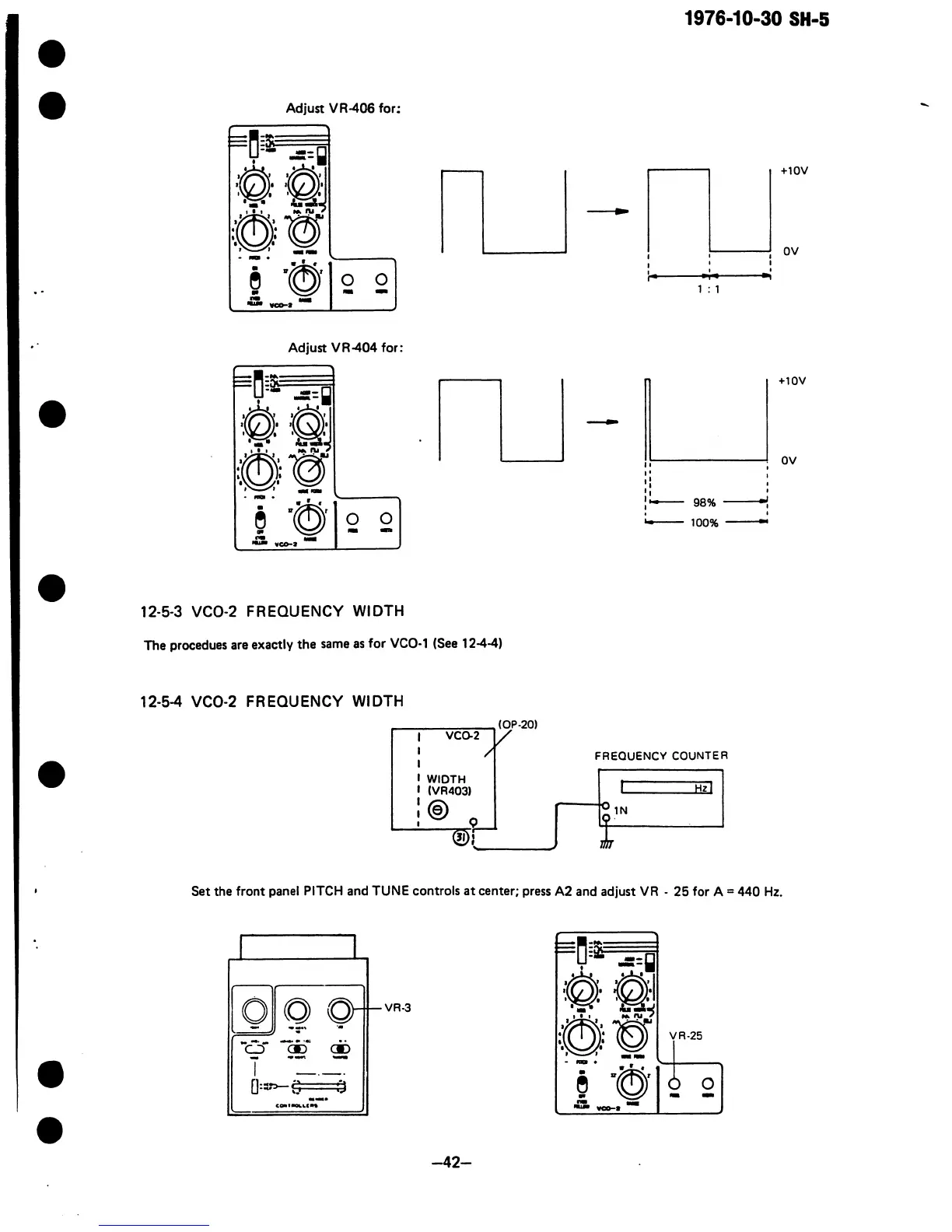

Adjust VR-406 for:
Adjust VR404 for:
98% '
100%
+10V
0V
+10V
0V
12-5-3 VCO-2 FREQUENCY WIDTH
The procedues are exactly the same as for VCO-1 (See 12-4-4)
12-5-4 VCO-2 FREQUENCY WIDTH
(OP-20)
Set the front panel PITCH and TUNE controls at center; press A2 and adjust VR - 25 for A = 440 Hz.
VR-3
-42-
