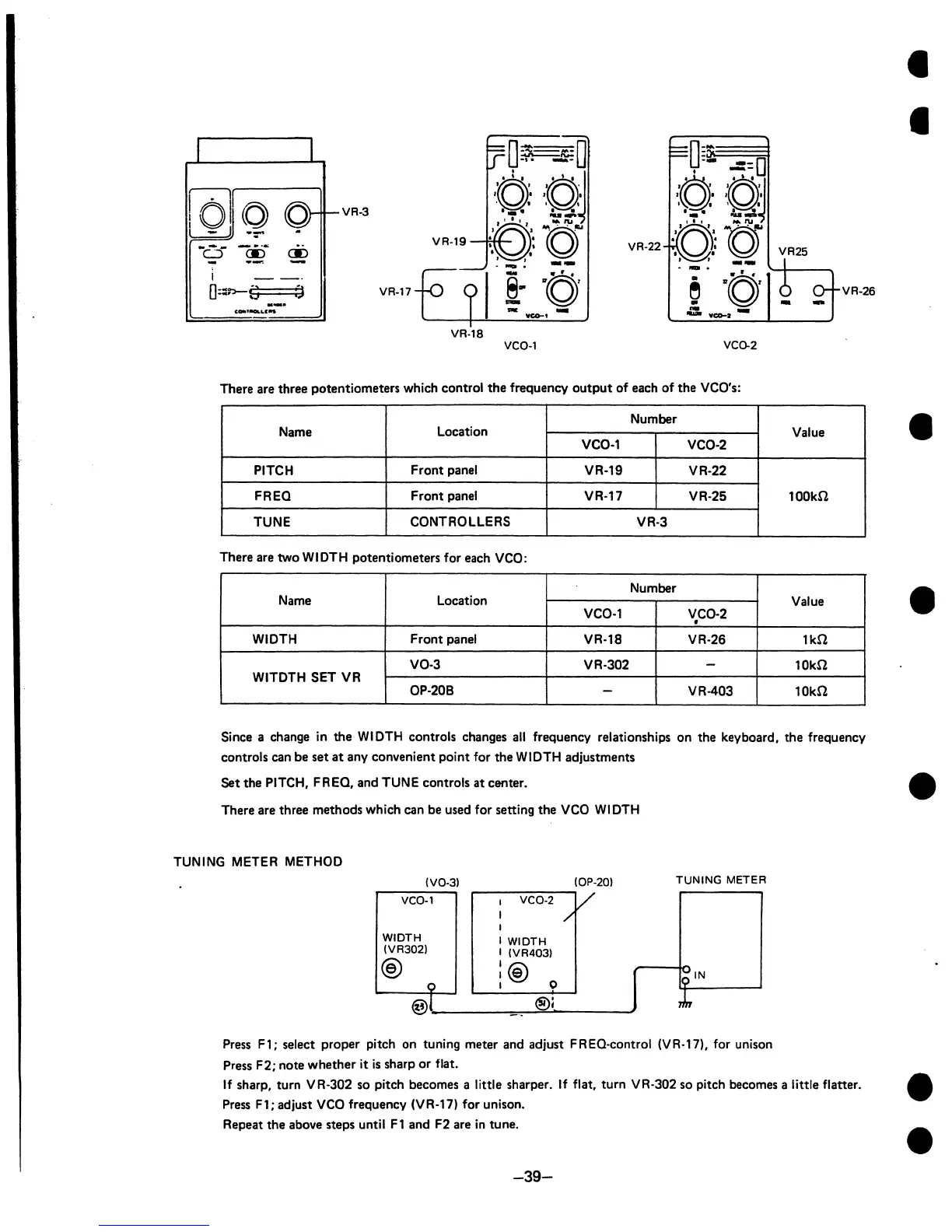

Roland SH-5 Service Manual

VR-3
VR-19-
VR-17--O
VR-18
VR-22
VR25
1
i
O-VR-26
VCO-1
VCO-2
There are three potentiometers which control the frequency output of each of the VCO's:
There are two WIDTH potentiometers for each VCO:
Since a change in the WIDTH controls changes all frequency relationships on the keyboard, the frequency
controls can be set at any convenient point for the WIDTH adjustments
Set the PITCH, FREQ, and TUNE controls at center.
There are three methods which can be used for setting the VCO WIDTH
TUNING METER METHOD
(VO-3)
VCO-1
WIDTH
(VR302)
VCO-2
WIDTH
(VR403)
(OP-20)
V
TUNING METER
Press F1; select proper pitch on tuning meter and adjust FREQ-control (VR-17), for unison
Press F2; note whether it is sharp or flat.
If sharp, turn VR-302 so pitch becomes a little sharper. If flat, turn VR-302 so pitch becomes a little flatter.
Press F1; adjust VCO frequency (VR-17) for unison.
Repeat the above steps until F1 and F2 are in tune.
-39-
