Names and Functions

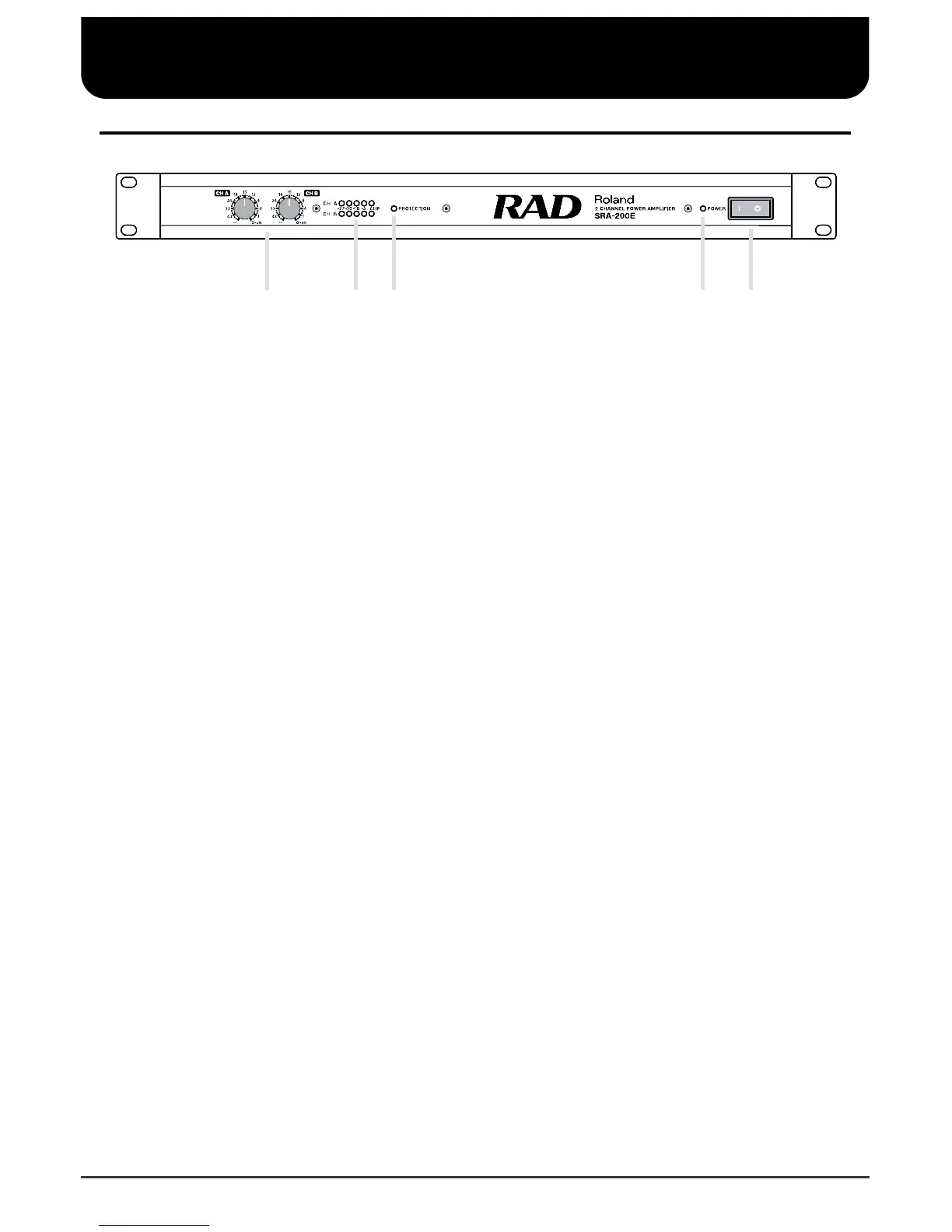

Front Panel
1. Attenuator
This adjusts the level of what is output to the speakers.
Adjust for the most suitable volume according to the input level of the connected device.
*When set to BTL mode, volume is adjusted with the Channel A attenuator. (BTL Connection
→
p. 8)
2. LEVEL Indicators
Output is indicated by these 5-step LED level indicators.
The Limiter Circuit is activated when the CLIP indicator lights. The CLIP indicator lighting too frequently means
that the output levels are too high; adjust the attenuator to attain the proper output level. (About the Limiter
→
p.
10)
3. PROTECTION Indicator
This lights when the protection circuits are in operation.
When this indicator is lit, sound from the speakers is cut. Stop operation of the equipment, and immediately check
the operating conditions. (About the Protection Circuits
→
p. 12)
4. POWER Indicator
This is lit when the power is on.
5. POWER Switch
This switches the power on and off.
* When turning the power on or off, first turn the attenuator (1) completely counterclockwise (-infinity) before
pressing the switch.
* This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before
the unit will operate normally. (About the Protection Circuits
→
p. 12)
