Roland SRA-200E User Manual

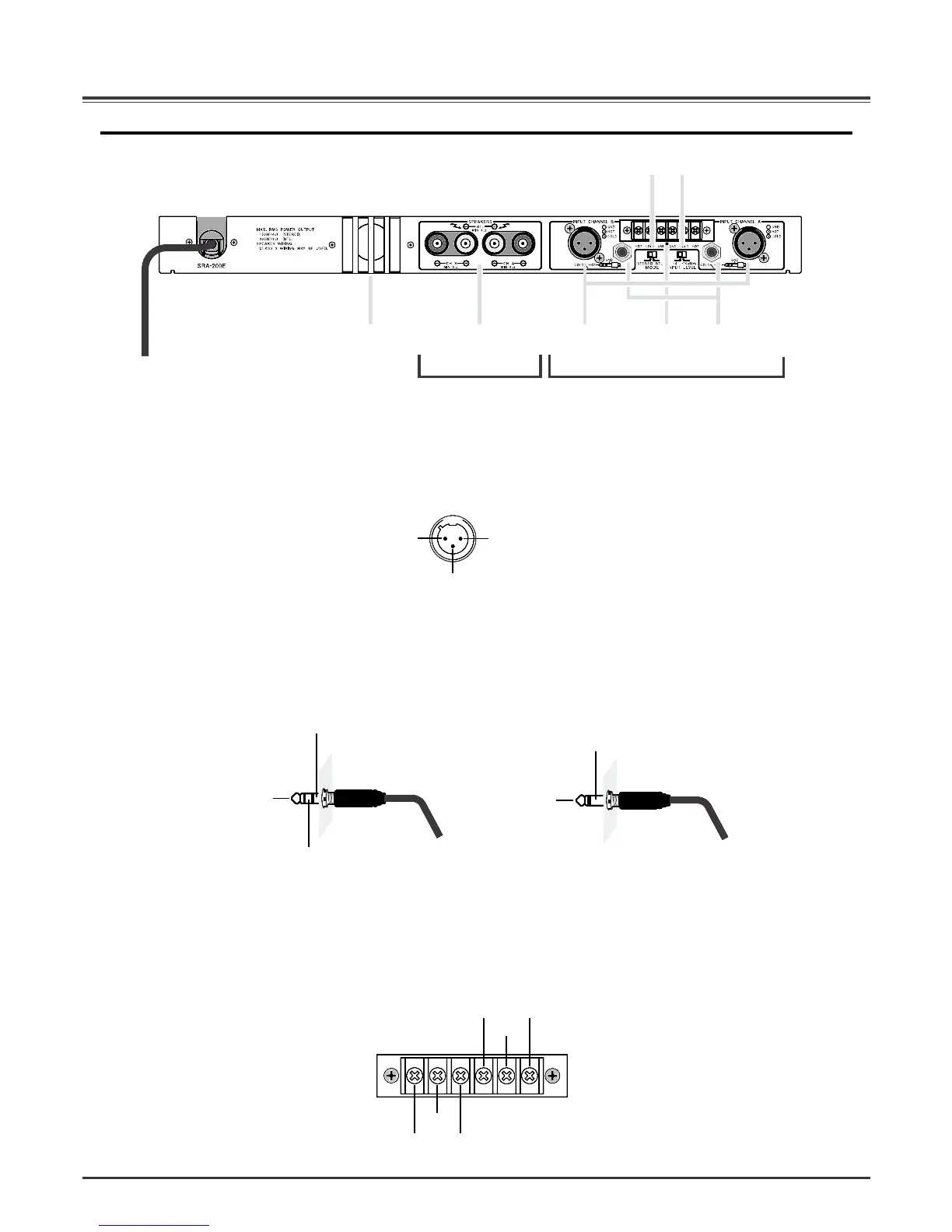

Rear Panel
INPUT
1. INPUT Connector (XLR-3-31 Type)
* The pin assignment for the XLR type connectors is as shown below. Before making any connections, make sure
that this pin assignment is compatible with that of all your other devices.
2. INPUT Jack (TRS Standard Phone Type)
Connect using quarter-inch TRS phone type when input is balanced, and connect with quarter-inch phone type
when the input is unbalanced.
* Check the pin assignments of other devices before connecting.
3. INPUT Terminals
*Check the pin assignments of other devices before connecting. When making connections, be careful to avoid los-
ing the screws that you remove.
1
2
3
45
67
INPUT
OUTPUT
12
3
1:GND
2:HOT
3:COLD
GND(SLEEVE)
HOT(TIP)
COLD(RING)
GND(SLEEVE)
HOT(TIP)
Quarter-inch TRS Phone Type
(Balanced)
Quarter-inch Phone Type
(Unbalanced)
COLD
GND HOT
COLD
GNDHOT
6
