4
Assembly

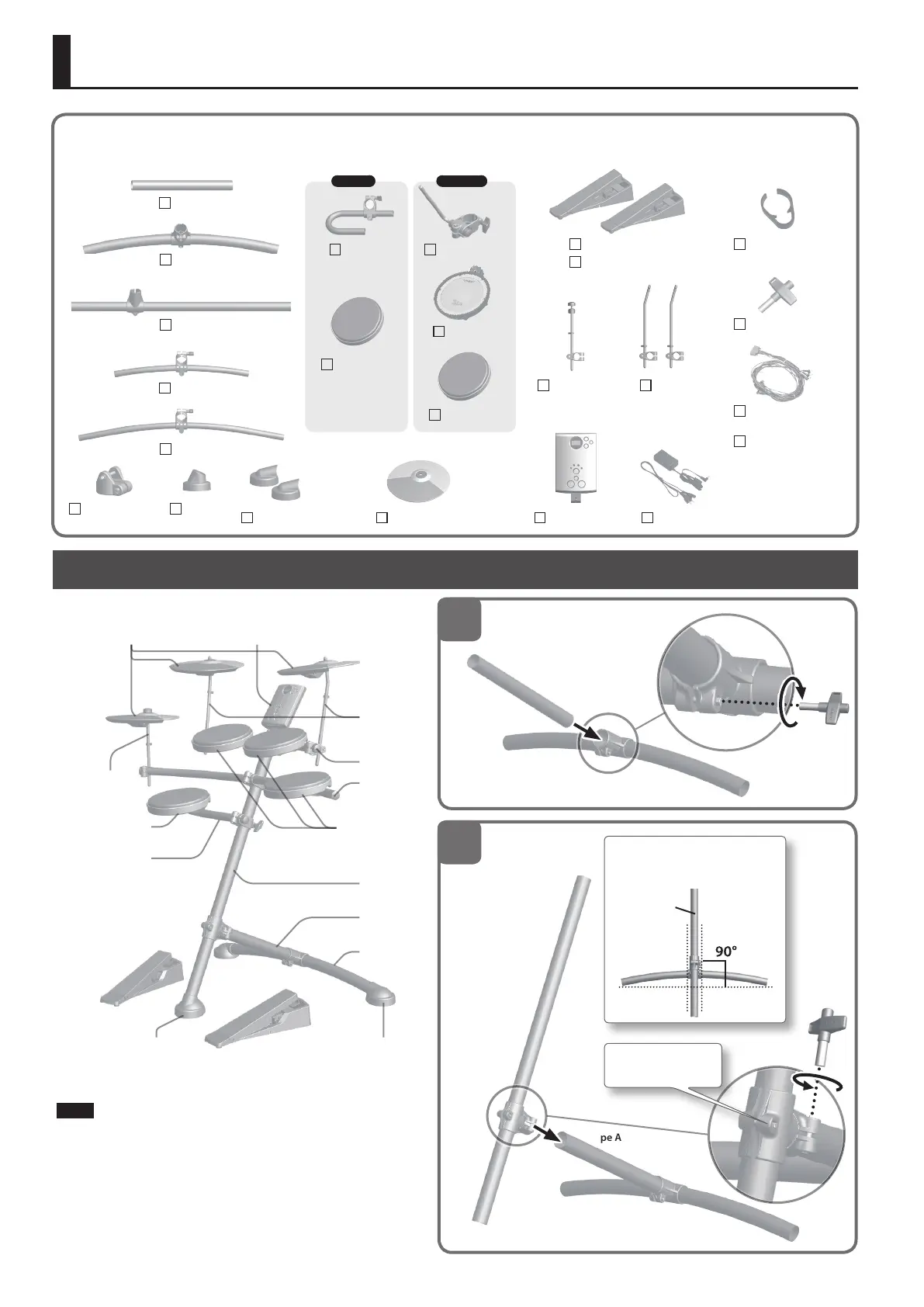

Kit Assembly
Check the included items
As soon as you open the package, check to see that all items are included.
If anything is missing, please contact your dealer.
Cymbal pad × 3 Sound module
Connection cable
Owner’s manual
Cable clip × 4
Drum key
Pipe A
Snare arm Snare arm
Snare pad
Tom pad × 3
Snare/Tom
pad × 4
Hi-hat arm
Cymbal
arm × 2
Sound module
holder
Rubber
foot A
Rubber foot B × 2
Pipe B
Pipe C
Pipe D
Pipe E
AC adaptor
Kick pedal
Hi-hat pedal
1
Pipe B
Pipe A
1
2
Note
• If you set up this unit in an unstable location, it may fall over. Be
sure to set it up in a stable and level location.
• When you operate the kick pedal or hi-hat pedal, please be
careful not to get your ngers pinched between the movable
parts. In places where small children are present, make sure that
an adult provides supervision and guidance.
2
Pipe C
Pipe A
Adjust so that the pipes form a
right angle as shown.
Pipe C
Pipe B
1
2
Do not loosen this
screw.
TD-1K TD-1KV
Completed setup
Pipe C
Snare pad Tom pad
Pipe E
Pipe D
Cymbal
arm
Hi-hat arm
Cymbal pad Sound module
Snare arm
Pipe A
Pipe B
Rubber foot B
Rubber foot A
Kick pedal
Hi-hat pedal
* The illustration shows the TD-1K.
