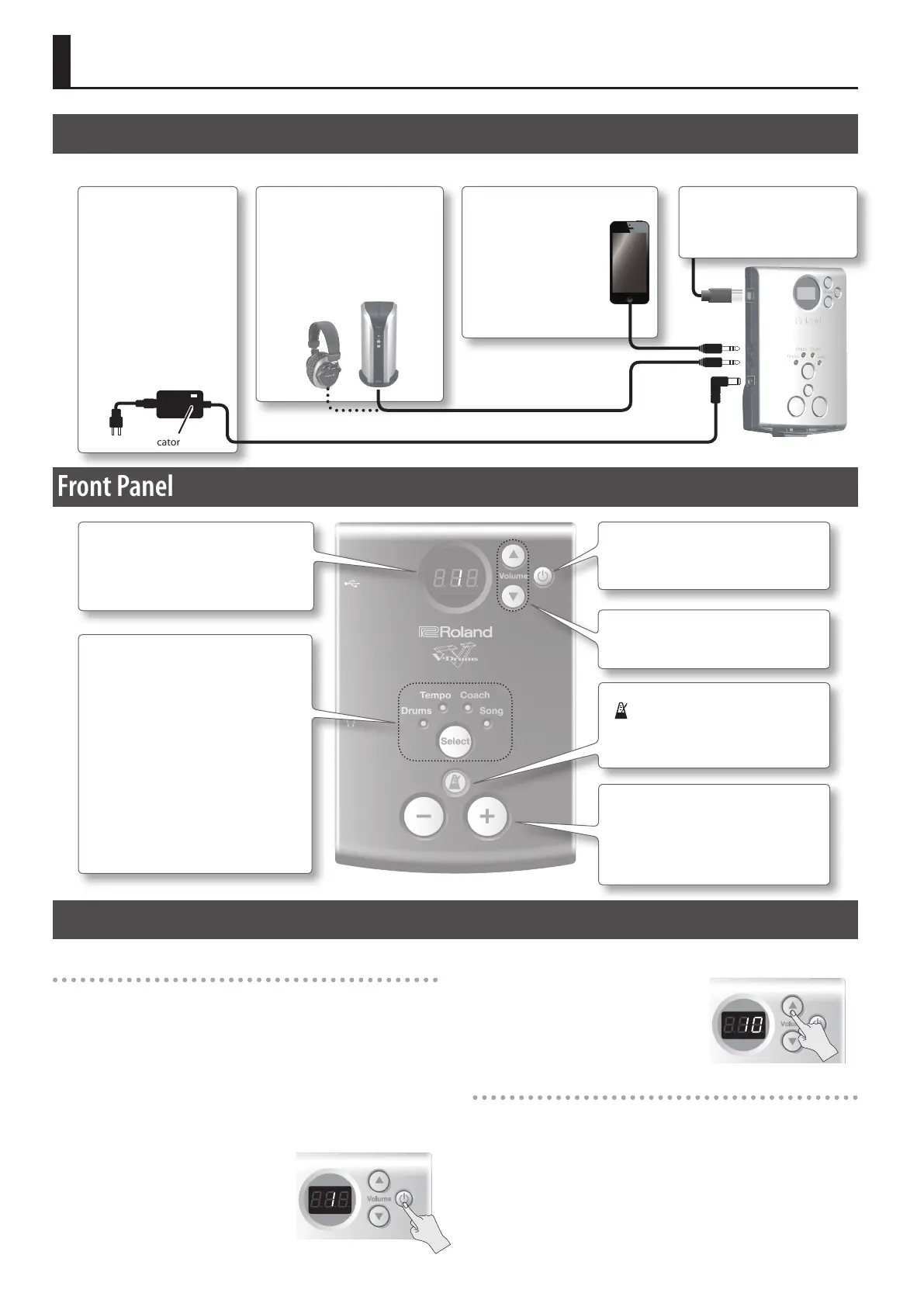

Quick Start
Front Panel
[L] (power) button
Turns the power on/o.
Volume [H][I] buttons
Adjust the volume in 20 levels.
Display
Shows the drum kit number and
metronome tempo etc.
Turning the power on
Once everything is properly connected (p. 8), be sure to follow the
procedure below to turn on their power. If you turn on equipment
in the wrong order, you risk causing malfunction or equipment
failure.
1. Minimize the volume of the connected amplied speaker.
Before turning the unit on/o, always be sure to turn the volume
down. Even with the volume turned down, you might hear some
sound when switching the unit on/o. However, this is normal and
does not indicate a malfunction.
2. Press the [L] (power) button.
The power turns on.
* This unit is equipped with a protection
circuit. A brief interval (a few seconds)
after turning the unit on is required
before it will operate normally.
3. Power-on the connected amplied speaker, and adjust
the volume.
4. Adjust the volume by pressing
the volume[H][I] button.
Turning the power o
1. Turn the volume down on the TD-1KV/TD-1K and any
connected equipment.
2. Power-o the connected equipment.
3. Long-press the [L] (power) button.
The power turns o.
* You must turn o the power by pressing the [L] (power) button.
Turning the Power On and O
[ ] (metronome) button
Starts or stops the metronome. The light
ashes with the tempo.
[-][+] buttons
Use this button to change a value on the
display. If you hold down one button
while pressing the other, the value
increases or decreases more quickly.
[Select] button, mode lamps
Each time you press the [Select] button,
you cycle through the four modes
(Drums, Tempo, Coach, Song) and the
corresponding lamp is illuminated.
Tap tempo function
By holding down the [Select] button and
repeatedly striking a pad, you can set
the tempo to the interval between your
strikes.
Connecting Your Equipment
* To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units before making any connections.
Sound module
DC IN jack
Connect the included AC
adaptor to the DC IN jack.
Place the AC adaptor so
the side with the indicator
(see the illustration) faces
upwards and the side with
textual information faces
downwards. The indicator
will light when you plug
the AC adaptor into an AC
outlet.
MIX IN jack (Stereo)
Connect your portable
audio player or other
external sources to the
MIX IN jack so that you
can play along with your
favorite songs.
OUTPUT/PHONES jack
Connect your amplied speaker
or headphones to the OUTPUT/
PHONES jack.
USB COMPUTER port
Refer to p. 13.
Indicator
