Ruijie RG-AP820-L(V2) Series User Manual

·

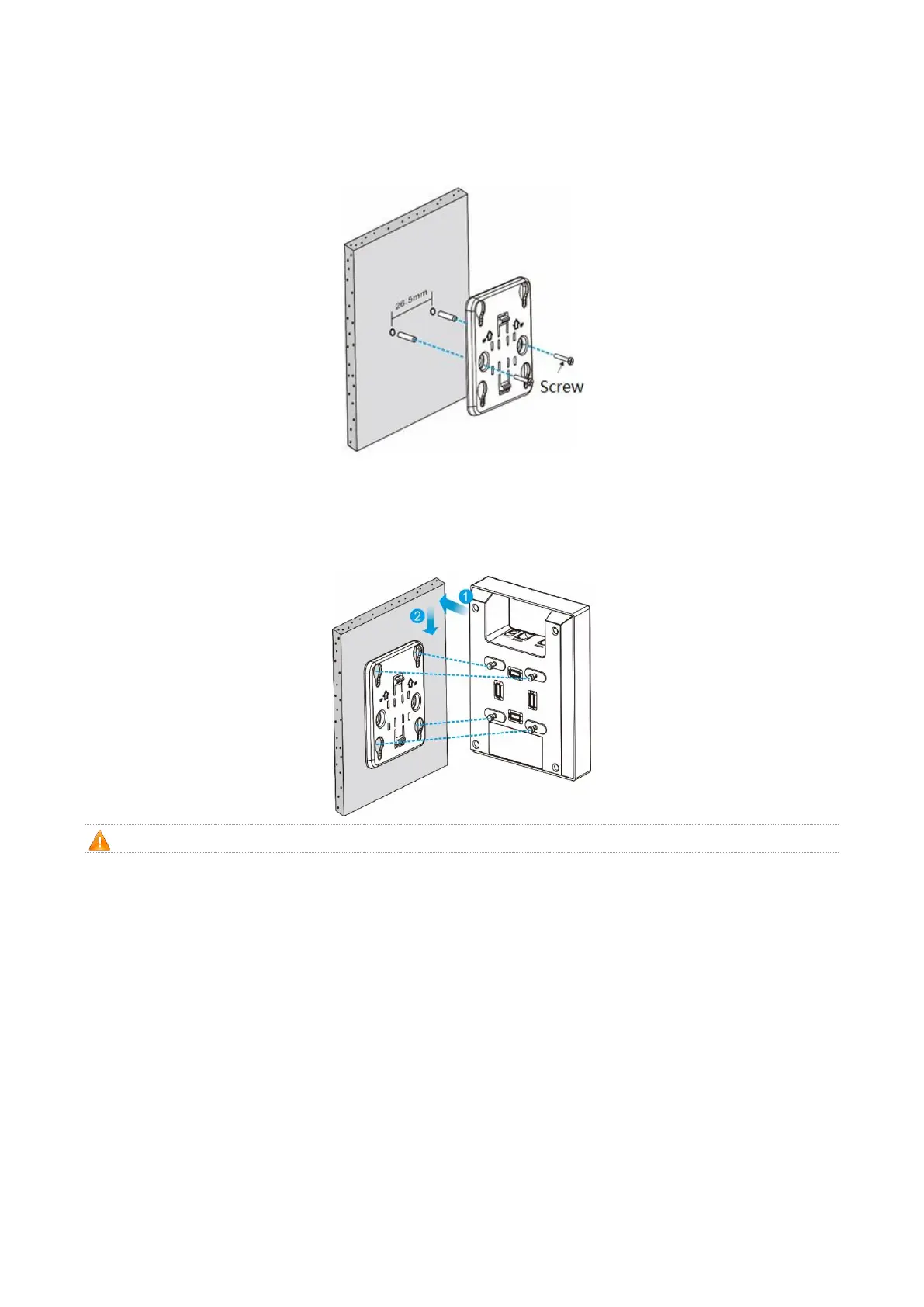

Figure 3-4 Attaching the Mounting Bracket on the Wall
2. Align the square feet on the rear of the AP over the mounting holes on the bracket. See Figure 3-5.
Figure 3-5 Aligning the Square Feet with the Mounting Holes
Before mounting the AP on the bracket, you must first install the Ethernet cables.
3. Slide the AP into the holes in the reverse direction against the arrow on the mounting bracket until it clicks into place.
See Figure 3-6.

Ruijie RG-AP820-L(V2) Series Specifications

General

Brand	Ruijie
Model	RG-AP820-L(V2) Series
Category	Wireless Access Point
Language	English
