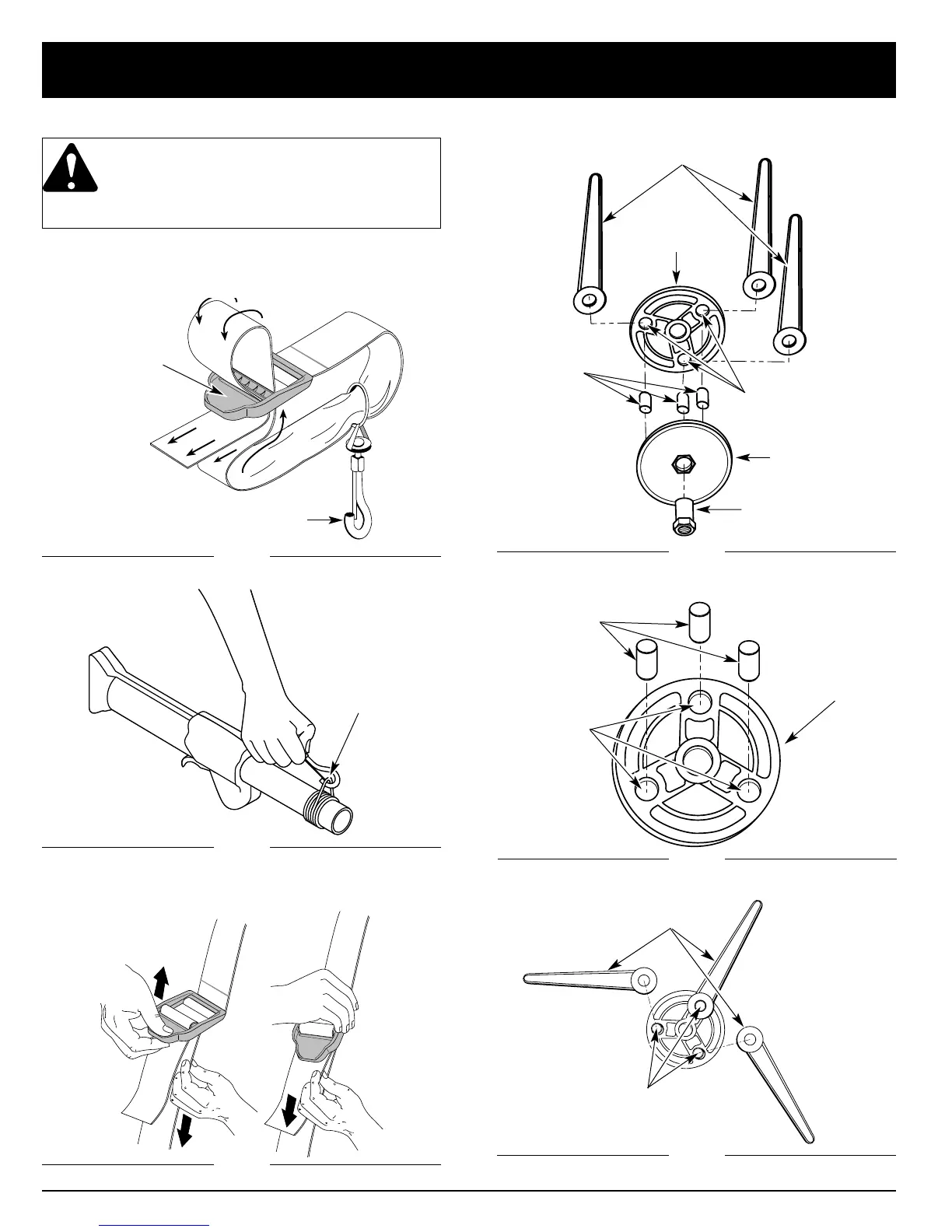

ASSEMBLY INSTRUCTIONS
9
3. Snap the clip on to the support fitting (Fig. 2).
Support Fitting
4. While standing in the operating position adjust length
to fit the operator’s size. Pull tab to lengthen, pull
strap to shorten (Fig 3).
Fig. 2
INSTALLING THE HARNESS
WARNING: To avoid serious personal injury,
never attempt to start the unit when standing
and the unit clipped to the shoulder strap.
Always follow the starting procedures as
described in the Operation section.
1. Push the strap through the center of the buckle.
2. Pull the strap over the cross bar and down through
the slot in the buckle (Fig. 1).
Fig. 1
Pin Guides
Pin Guides
ASSEMBLING THE FLAIL HEAD
2. Place one Flail Blade on each Pivot Pin (Fig. 6).
Flail Head Top
3 Pivot Pins
Flail Head Bottom
Flail Blades
Adaptor
Fig. 5
Fig. 4
1. Insert the three Pivot Pins into the pin guides in the
Flail Head Top (Fig. 5).
Flail Head Top
Pivot Pins
Pivot Pins
Flail Blades
Fig. 6
Flail Head Parts
Clip
Buckle
Fig. 3
