Page 4

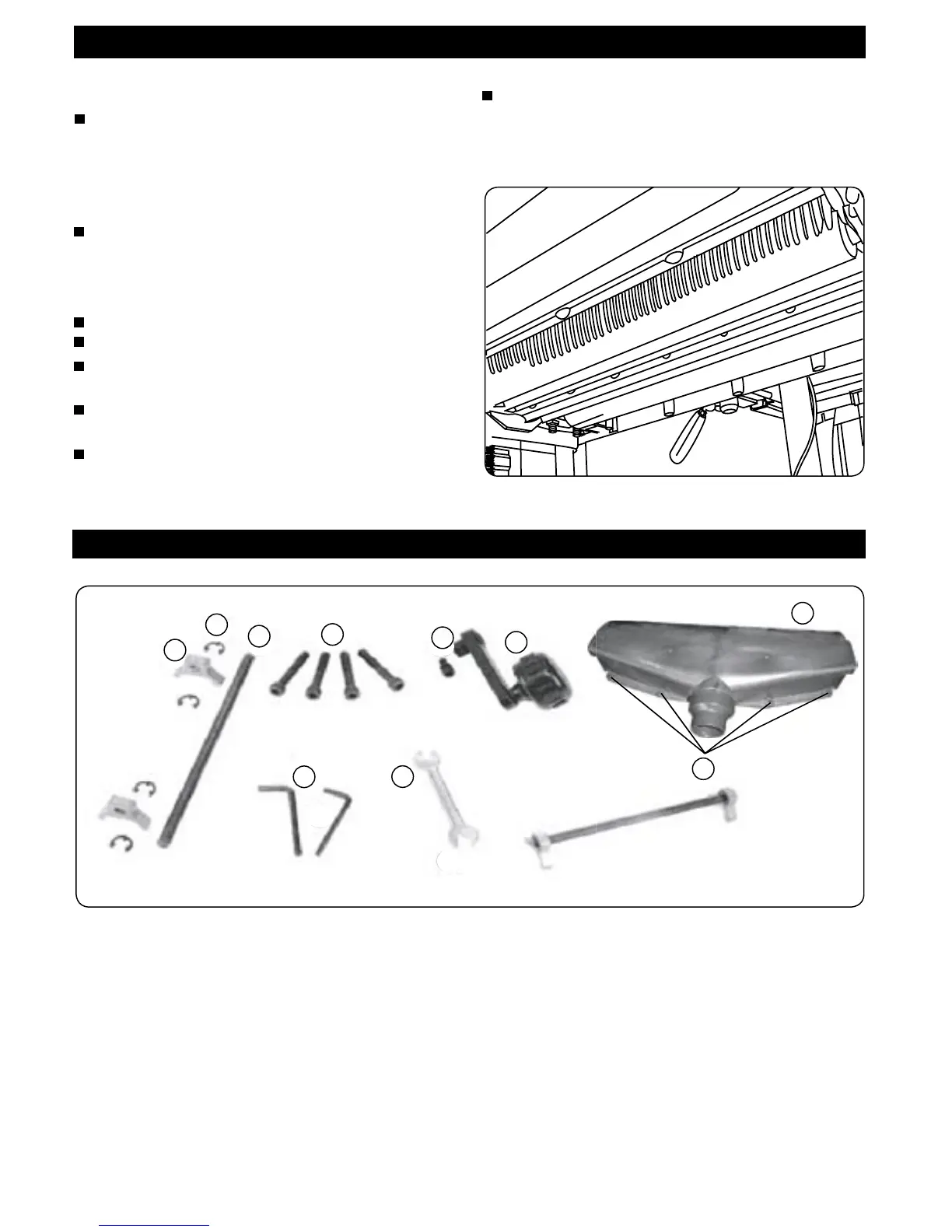

LOOSE PARTS LIST
1) “C” Circlip ......................................................................................................................................... 4 pieces
2) Blade Setting Guide ..........................................................................................................................2 pieces
3) Blade Setting Guage Shaft .................................................................................................................1 piece
4) Base Lock Screw ......................8mm x 50(L)................................................................................... 4 pieces
5) Elevation Knob Lock Screw ......6mm x 15(L)..................................................................................... 1 piece
6) Cutterhead Raising Hand Crank ........................................................................................................1 piece
7) Allen Wrenches ............................................................................................................................... 4 & 5mm
8) Open End Wrench ..........................8 x 10..........................................................................................1 piece
9) Dust Chute..........................................................................................................................................1 piece
10) Philip Screws...................................................................................................................................4 pieces
• Properly assembled
blade setting guage.
Anti-Kickback Pawls
Device which, when properly installed and maintained,
is designed to stop the workpiece from being kicked
back toward the front of the Blade during a Planer
operation.
8
6
5
7
4
3
1
2
RULES FOR SAFE OPERATION
Avoiding kickback
Always use the correct Blade depth setting.
Inspect the work for knots or nails before
beginning a cut. Knock out any loose knots with a
hammer, never cut into a loose knot or nail.
Always use clear, sharp, and properly-set blades.
Never make planer with dull blades.
To avoid pinching the Blade, support the work
properly before beginning a planer operation.
When making a planer operation, use steady,
even pressure, never force to plane.
Do not plane wet or warped timber.
Always hold your workpiece rmly with both
hands, keep your body in a balanced position to
be ready to resist kickback. Never stand directly
in line with timber.
9
10
