ADJUSTMENT
Page 8

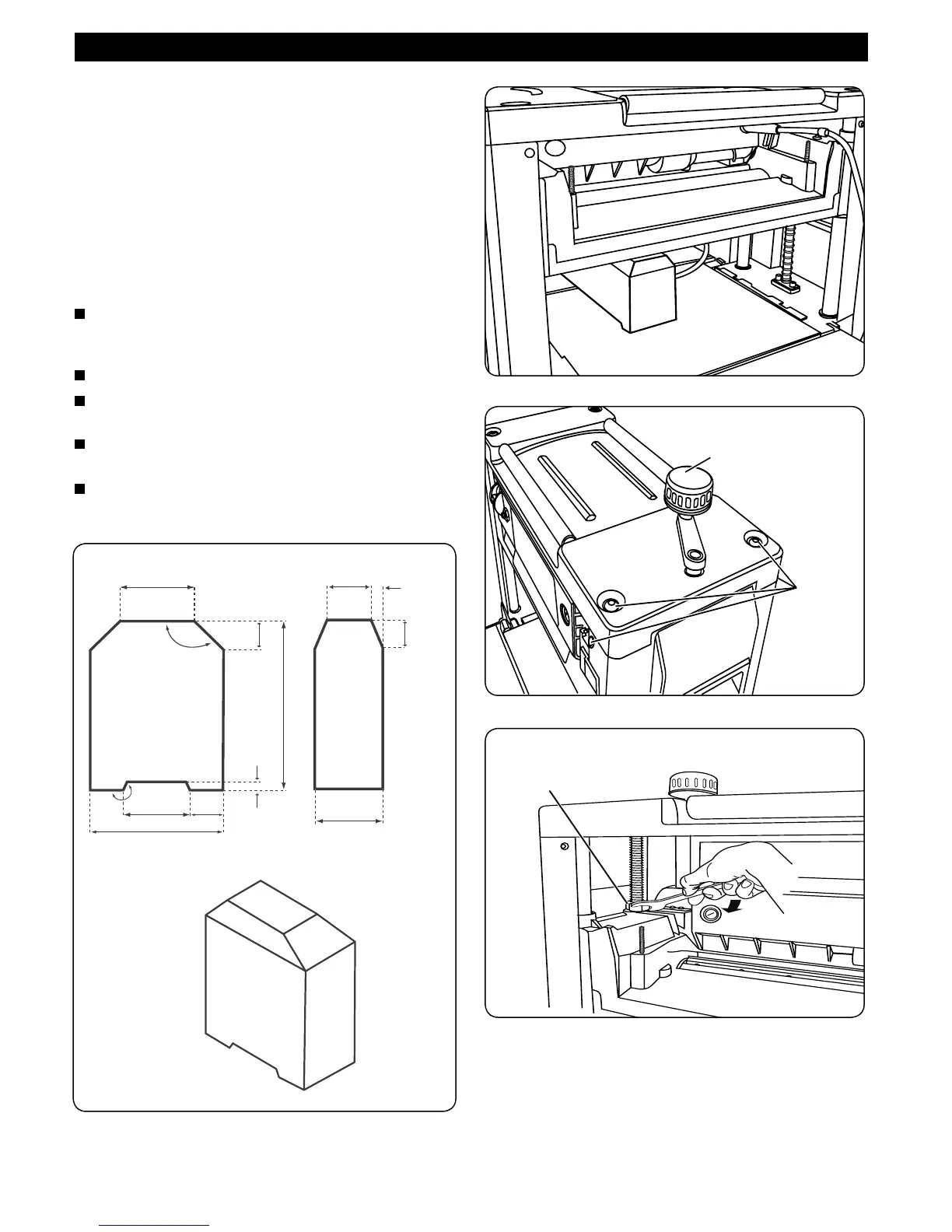

MAKING THE CUTTERHEAD AND WORKTABLE
PARALLEL (Fig. 9~12)
Plane a workpiece and measure thickness after the
cut. If the thickness is not the same on both sides of
the workpiece, perform the following action.
Adjust the cutter shaft and the worktable so they are
parallel. The tools used for checking are shown below
. Please use hardwood to make a tool guage block
according to the size shown in the gure 9. Make the
adjustments as per the following procedures.
Remove height adjustment handle and both top
and side covers by removing allen screws (Fig.11)
to expose height adjustment lock nuts. (Fig.12)
Loosen adjustment lock nut. (Fig.12)
Adjust height nut up or down as required to suit
guage block. (Fig.10)
When desired height setting is reached, tighten
lock nuts inposition. (Fig.12)
Reassemble side and top covers and replace
height adjustment handle.
