Chapter 4 Electrical Connections
4.1 Electrical Interface Description

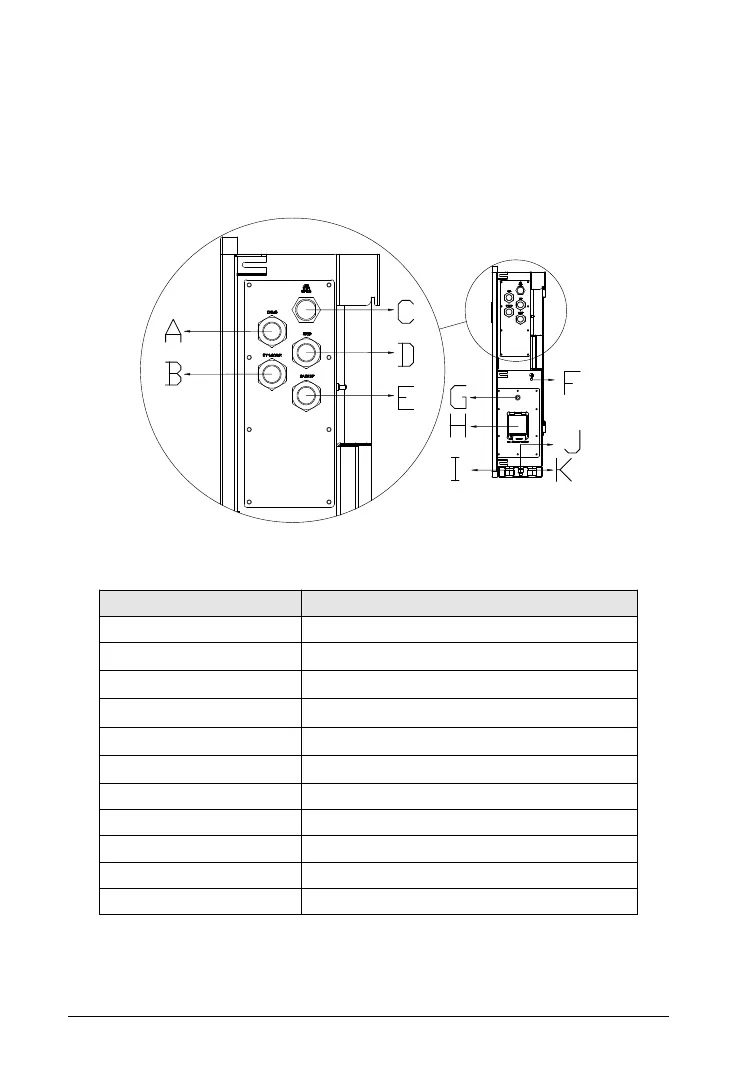

Fig. 4.1 AS1-3KS-5.1 electrical interfaces
Code
Name
A
DRMS Port
B
CT connection
C
RS232 communication
D
Grid connection
E
Backup connection
F
Ground
G
BMS switches
H
Battery switches
I
BAT+
J
BMS LINK
K
BAT-
Table 4.1 Interface description
